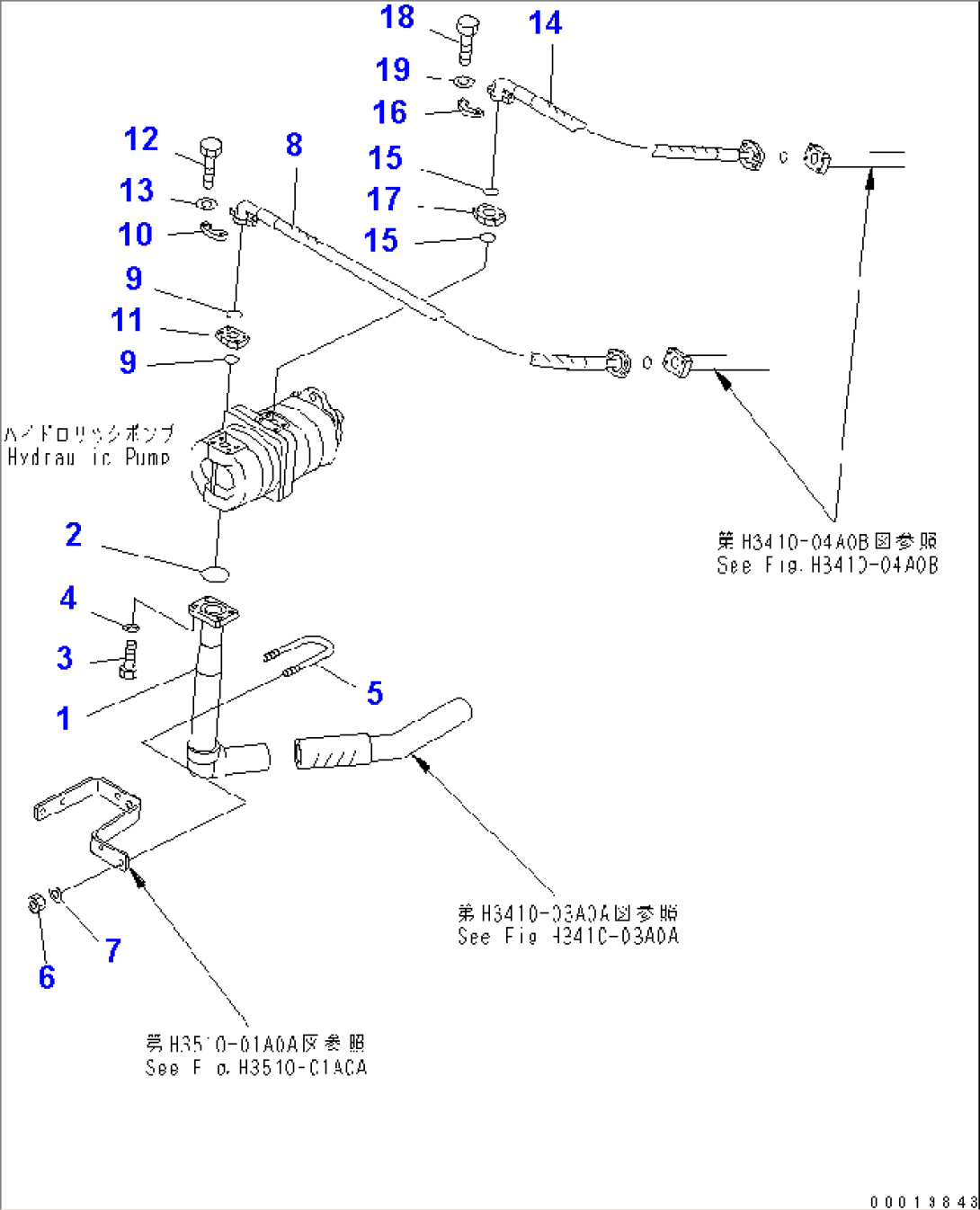

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-40-74222 | TUBE | 1601- | |
| 2 | 07000-F2060 | O-RING | 1001- | |
| 3 | 07372-21235 | BOLT | 1001- | |
| 4 | 01643-51232 | WASHER | 1001- | |
| 5 | 07283-36155 | CLIP | 1001- | |
| 6 | 01597-01009 | NUT | 1601- | |
| 7 | 01643-31032 | WASHER | 1001- | |
| 8 | 566-61-42710 | HOSE | 1001- | |
| 9 | 07000-F3032 | O-RING | 1001- | |
| 10 | 07371-31049 | FLANGE | 1001- | |
| 11 | 07373-31000 | SPACER | 1001- | |
| 12 | 07372-21040 | BOLT | 1001- | |
| 13 | 01643-51032 | WASHER | 1001- | |
| 14 | 566-61-42710 | HOSE | 1001- | |
| 15 | 07000-F3032 | O-RING | 1001- | |
| 16 | 07371-31049 | FLANGE | 1001- | |
| 17 | 07373-31000 | SPACER | 1001- | |
| 18 | 07372-21040 | BOLT | 1001- | |
| 19 | 01643-51032 | WASHER | 1001- |
