| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EK5252 | ARM, STEERING - LH | ||
| 1 | EK5251 | ARM, STEERING - RH | ||
| 2 | WA4817 | CAPSCREW - 1 1/4" - 12NF X 5" (12PT) | ||
| 3 | EK1287 | PLATE, RETAINING | ||
| 4 | TY2149 | FLAT WASHER (HARDENED) | ||
| 4 | (QUANTITIES SHOWN ARE FOR ONE STEERING ARM.) |
- Главная
- Каталог запчастей
- Самосвалы
- Afe71 a 960e 2kt s/n a50028 a50064
- Steering system
- Steering arm installation
Поиск по каталогу

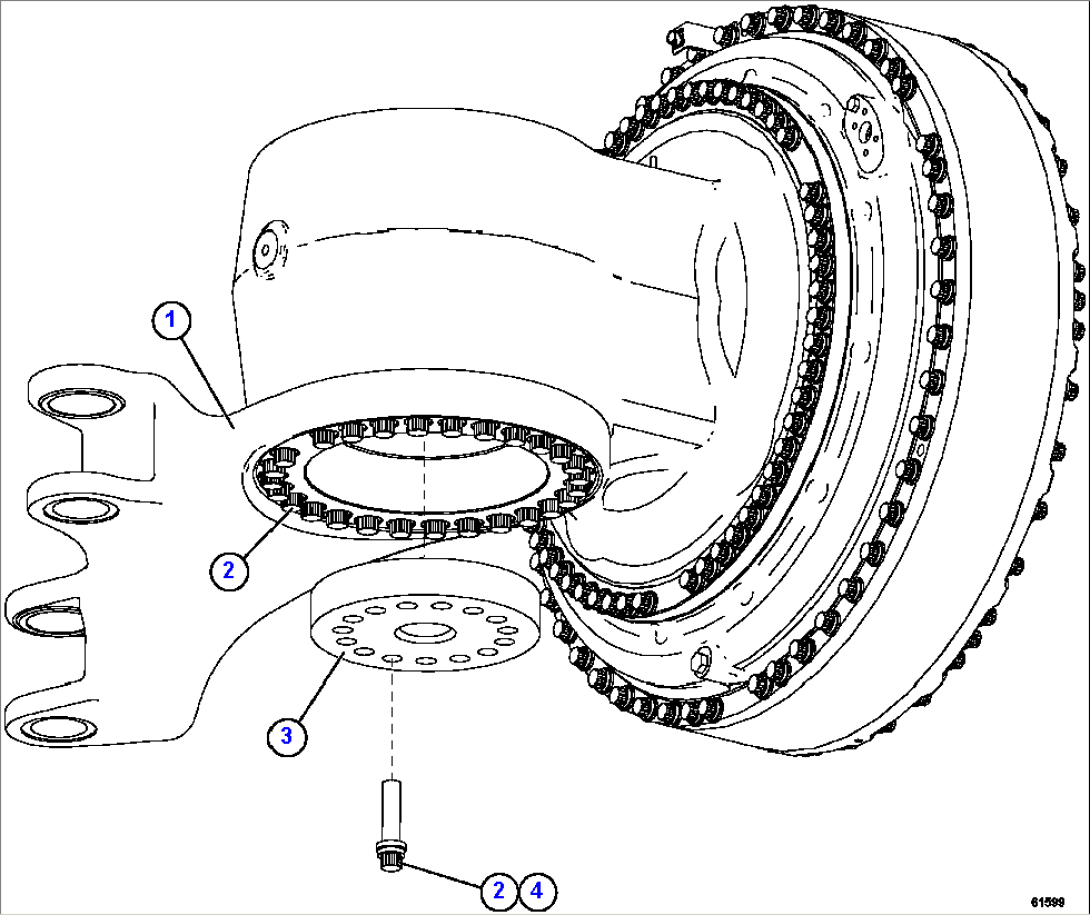

STEERING ARM INSTALLATION
