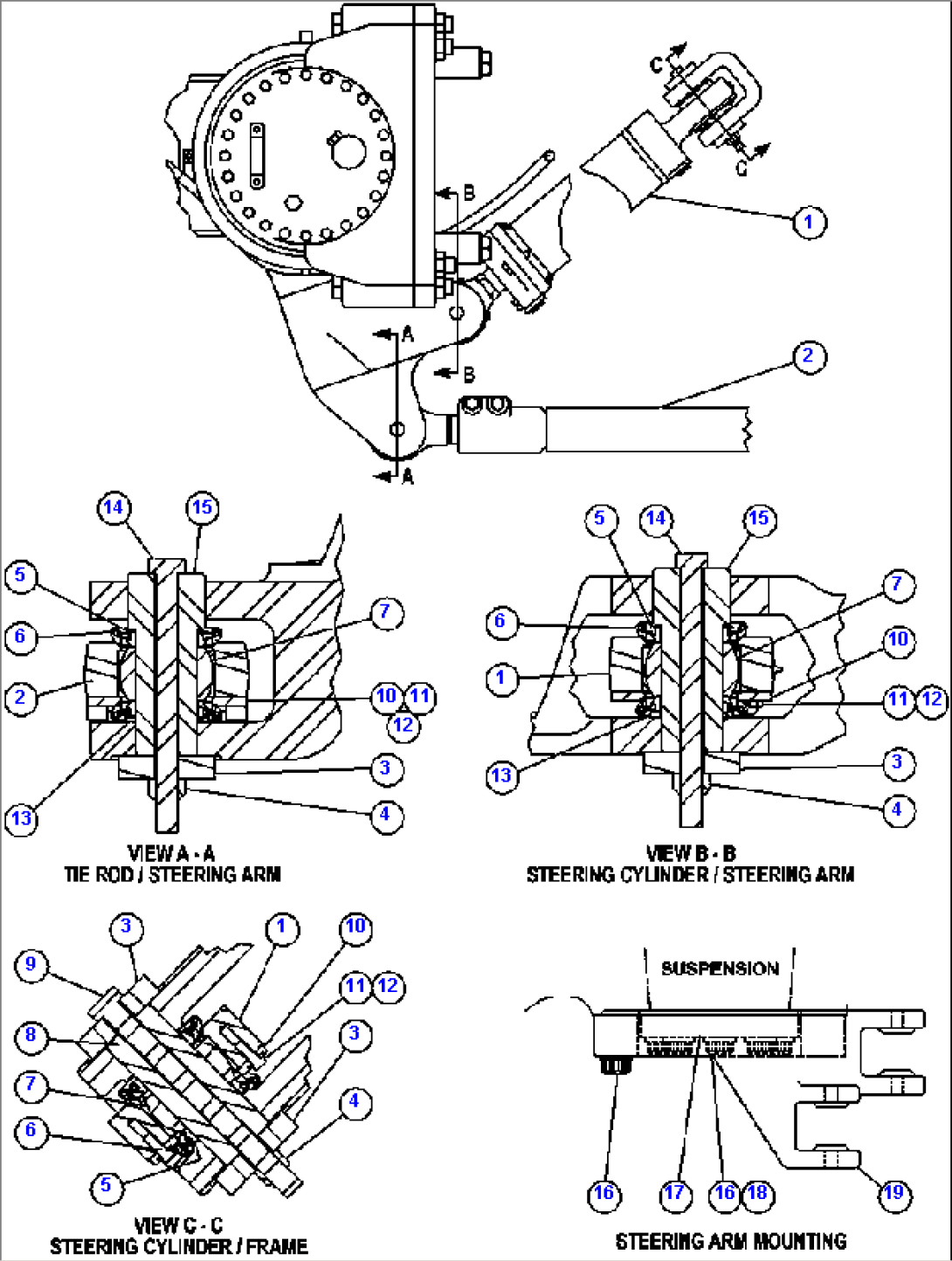

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EL7958 | STEERING CYLINDER ASSEMBLE (SEE FIG 55690) | | |
| 2 | EK9257 | TIE ROD ASSEMBLY (SEE FIG 55694) | | |
| 3 | EB4430 | RETAINER (1)/(2) | | |
| 4 | MM0697 | LOCKNUT - M20 X 2.50 (1)/(2) | | |
| 5 | EK3378 | SPACER (1)/(2) | | |
| 6 | EK3379 | SEAL, BEARING (1)/(2) | | |
| 7 | PC1680 | BEARING, SPHERICAL (1)/(2) | | |
| 8 | EB4429 | PIN (1) | | |
| 9 | MM0690 | CAPSCREW - M20 X 2.50 X 240 (1) | | |
| 10 | EK9254 | RETAINER, BEARING (2) | | |
| 11 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | | |
| 12 | C0312 | LOCKWASHER - 3/8" | | |
| 13 | EF7599 | WASHER (2) | | |
| 14 | MM0735 | CAPSCREW - M20 X 2.5 X 220 (2) | | |
| 15 | EH0875 | PIN (2) | | |
| 16 | WA4817 | CAPSCREW - 1 1/4" - 12NF X 5" (12 POINT) | | |
| 17 | EJ9962 | PLATE, RETAINING | | |
| 18 | TY2149 | FLAT WASHER - 1 1/4" | | |
| 19 | EL6069 | STEERING ARM - R.H. | | |
| 19 | EL6070 | STEERING ARM - L.H. | | |
| NS|21 | AK3731 | NOTE: (1) INCLUDED IN AK5167 STEERING PIN KIT. | | |
| NS|22 | AK5109 | (2) INCLUDED IN AK5109 STEERING CYLINDER | | |
| NS|23 | | AND TIE ROD PIN KIT. | | |
