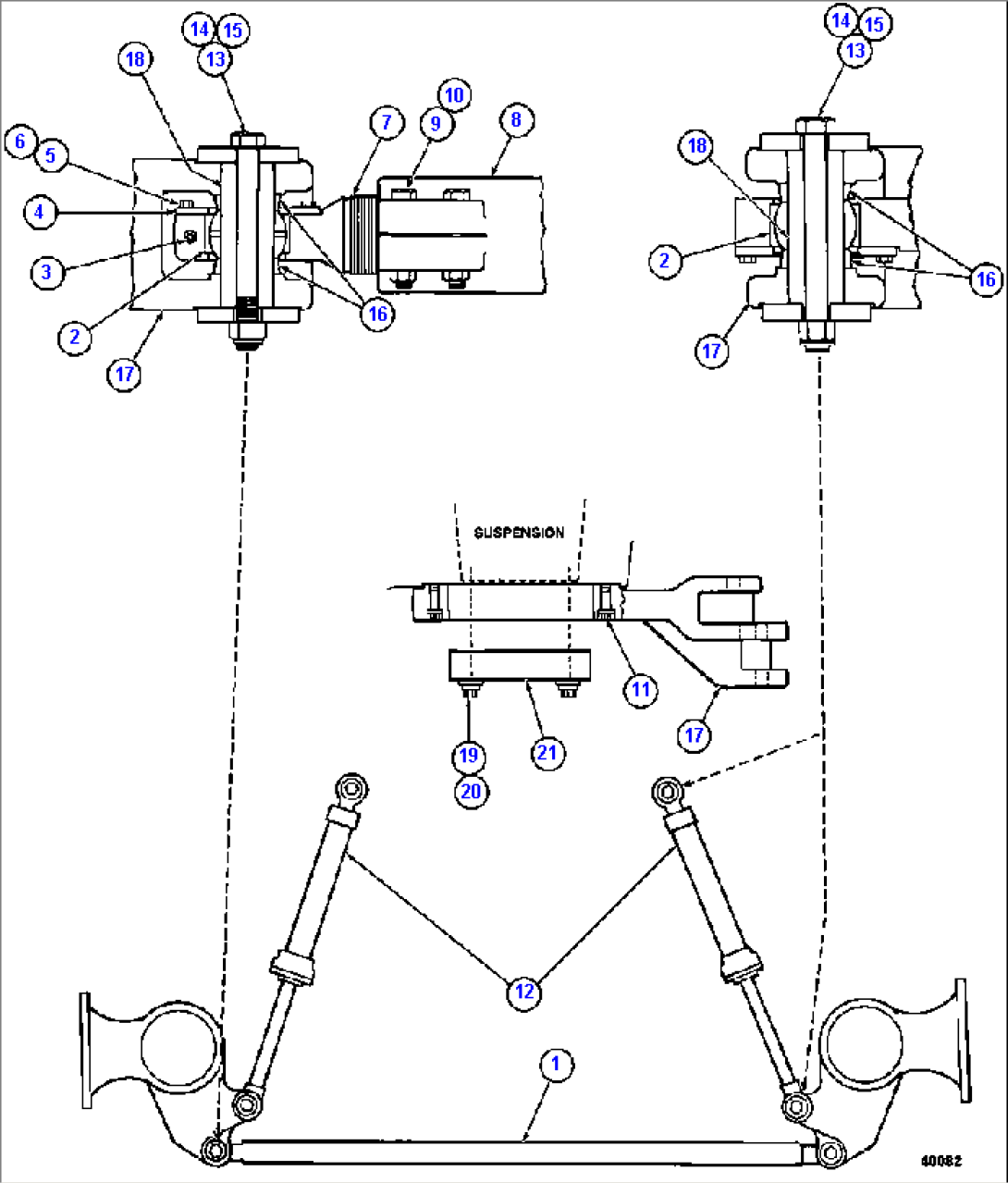

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TY0456 | TIE ROD ASSM | ||
| 2 | TD0439 | BUSHING, SEALED | ||
| 3 | TG3397 | ADAPTOR | ||
| 4 | TY2171 | RETAINER, BEARING | ||
| 5 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 6 | C0312 | LOCKWASHER - 3/8" | ||
| 7 | TY2245 | ROD END, THREADED | ||
| 8 | TY2172 | ROD, TIE | ||
| 9 | VN9140 | CAPSCREW - 3/4" - 10NC X 4" | ||
| 10 | VL2993 | LOCKNUT - 3/4" - 10NC | ||
| 11 | WA4819 | CAPSCREW - 1 1/8" - 12NF X 4" (12 POINT) | ||
| 12 | TZ1419 | STEERING CYLINDER ASSM (SEE INDEX) | ||
| 13 | TY2239 | RETAINER | ||
| 14 | KC7131 | CAPSCREW - 1" - 8NC X 9 1/2" | ||
| 15 | VN9755 | LOCKNUT, NYLON - 1" - 8NC | ||
| 16 | TY2240 | SPACER | ||
| 17 | TY1831 | STEERING ARM - R.H. | ||
| 17 | TY1833 | STEERING ARM - L.H. | ||
| 18 | TY2241 | PIN | ||
| 19 | WA4817 | CAPSCREW - 1 1/4" - 12NF X 5" (12 POINT) | ||
| 20 | TY2149 | FLAT WASHER (HARDENED) | ||
| 21 | TY2228 | PLATE, RETAINING |
