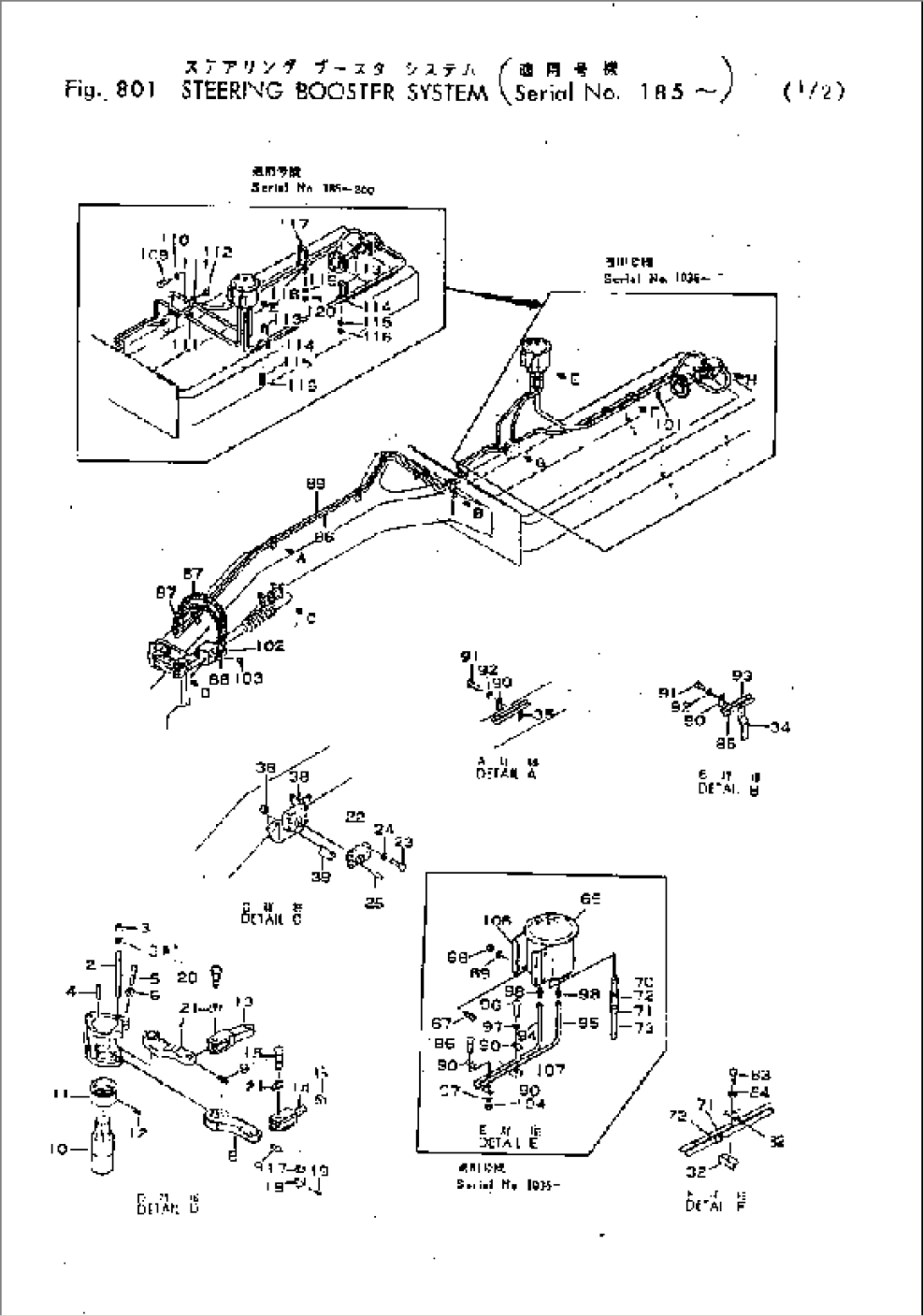

STEERING BOOSTER SYSTEM (1/2)
| Item | Part No. | Part Name | Qty | Serial No. |
| 230-840-0050 | CYLINDER ASS'Y | | 1557- |
| 230-840-0016 | BOOSTER ASS'Y | | 1557- |
| 230-840-0015 | BOOSTER ASS'Y | | 1521-1556 |
| 230-840-0014 | BOOSTER ASS'Y | | 1263-1520 |
| 230-840-0013 | BOOSTER ASS'Y | | 1252-1262 |
| 230-840-0012 | BOOSTER ASS'Y | | 1036-1251 |
| 1 | 230-840-1111 | SEAT | | 1252-1556 |
| 230-840-1110 | SEAT | | 185-1251 |
| 2 | 01124-31640 | STUD | | 1252-1556 |
| 01100-31640 | STUD | | 185-1251 |
| 3 | 01580-01613 | NUT | | 1252-1556 |
| 01500-31613 | NUT | | 185-1251 |
| 3A | 01602-01648 | WASHER | | 185-800 |
| 4 | 04020-01228 | PIN | | 185-1556 |
| 5 | 232-40-13161 | BOLT | | 1252-1556 |
| 232-40-13160 | BOLT | | 185-1251 |
| 6 | 01580-01613 | NUT | | 1252-1556 |
| 01501-31608 | NUT | | 185-1251 |
| 7 | 230-840-1140 | ARM | | 1557- |
| 230-840-1150 | ARM | | 1557- |
| 233-41-11130 | ARM | | 185-1556 |
| 8 | 230-840-1130 | ARM | | 1557- |
| 233-41-11140 | ARM | | 185-1556 |
| 9 | 07020-00000 | FITTING | | 185- |
| 10 | 233-41-11150 | JOINT | | 185-1556 |
| 11 | 232-41-26131 | BUSHING | | 1557- |
| 233-41-11160 | BUSHING | | 185-1556 |
| 12 | 07020-00000 | FITTING | | 185- |
| 13 | 233-41-11210 | YOKE | | 185- |
| 14 | 233-41-11220 | YOKE | | 185- |
| 15 | 233-41-11231 | PIN | | 1252- |
| 233-41-11230 | PIN | | 185-1251 |
| 16 | 233-41-11241 | NUT | | 1252- |
| 233-41-11240 | NUT | | 185-1251 |
| 17 | 01640-21626 | WASHER | | 185- |
| 18 | 01592-11619 | NUT | | 1252- |
| 01511-31612 | NUT | | 185-1251 |
| 19 | 04050-14035 | PIN | | 185- |
| 20 | 233-41-11251 | PIN | | 1252- |
| 233-41-11250 | PIN | | 185-1251 |
| 21 | 233-41-11260 | LOCK | | 185- |
| 22 | 233-41-13220 | SEAT | | 185- |
| 23 | 01010-51235 | BOLT | | 1252- |
| 01000-31225 | BOLT | | 185-1251 |
| 24 | 01602-21236 | WASHER | | 185- |
| 25 | 04020-01228 | PIN | | 185- |
| 26 | 230-40-11435 | SHAFT | | 1557- |
| 233-40-12251 | SHAFT | | 1557- |
| 230-840-1120 | SHAFT | | 185-1556 |
| 27 | 01010-50816 | BOLT | | 1252- |
| 01000-30816 | BOLT | | 185-1251 |
| 28 | 01602-20825 | WASHER | | 185- |
| 29 | 233-41-14121 | NIPPLE | | 1252- |
| 233-41-14120 | NIPPLE | | 185-1251 |
| 30 | 07211-51220 | NIPPLE | | 1252- |
| 07211-01220 | NIPPLE | | 185-1251 |
| 31 | 07004-02034 | GASKET | | 185- |
| 32 | 230-840-1621 | BRACKET (WELDED) | | 185- |
| 33 | 230-840-1210 | BRACKET (WELDED) | | 185- |
| 34 | 230-840-1540 | BRACKET (WELDED) | | 185-800 |
| 35 | 233-41-14220 | BRACKET (WELDED) | | 185-1035 |
| 36 | 230-70-18260 | BOSS (WELDED) | | 185-1502 |
| 38 | 230-840-1311 | BRACKET (WELDED) | | 1252- |
| 230-840-1310 | BRACKET (WELDED) | | 185-1251 |
| 39 | 230-70-19131 | SEAT (WELDED) | | 185- |
| 40 | 230-840-1712 | BRACKET | | 1036- |
| 230-840-1710 | BRACKET | | 185-800 |
| 41 | 01010-31440 | BOLT | | 1252- |
| 01000-31455 | BOLT | | 185-1251 |
| 42 | 01580-01411 | NUT | | 1252- |
| 01500-31411 | NUT | | 185-1251 |
| 43 | 01602-01442 | WASHER | | 185- |
| 43A | 230-840-1720 | SHIM | | 185-800 |
| 44 | 07428-11100 | PUMP | | 185- |
| 45 | 01010-31035 | BOLT | | 1252- |
| 01000-31035 | BOLT | | 185-1251 |
| 46 | 01580-01008 | NUT | | 1252- |
| 01500-31008 | NUT | | 185-1251 |
| 47 | 01602-01030 | WASHER | | 185- |
| 48 | 230-840-2410 | JOINT | | 1521- |
| 233-14-18231 | JOINT | | 185-1520 |
| 49 | 230-840-1733 | SHAFT | | 1521- |
| 230-840-1732 | SHAFT | | 1263-1520 |
| 230-840-1731 | SHAFT | | 1036-1262 |
| 230-840-1730 | SHAFT | | 185-800 |
| 50 | 230-43-17111 | JOINT | | 1521- |
| 232-14-18220 | JOINT | | 185-1520 |
| 51 | 232-14-18140 | RING | | 1521- |
| 232-14-18140 | RING | | 185-1520 |
| 52 | 232-14-18262 | BEARING | | 185- |
| 53 | 232-14-18270 | LOCK | | 185- |
| 54 | 01582-11008 | NUT | | 1252- |
| 01500-31008 | NUT | | 185-1251 |
| 55 | 232-14-18242 | JOINT | | 185- |
| 56 | 230-840-1740 | JOINT | | 185- |
| 57 | 07020-00675 | FITTING | | 185- |
| 58 | 230-840-1750 | BUSHING | | 185- |
| 59 | 230-840-1760 | BUSHING | | 185- |
| 60 | 230-840-1770 | PLATE | | 185- |
| 61 | 120-60-11260 | RETAINER | | 185- |
| 62 | 01010-31025 | BOLT | | 185- |
| 63 | 01602-01030 | WASHER | | 185- |
| 64 | 230-840-1780 | PULLEY | | 1036- |
| 6100-31-1412 | PULLEY | | 185-800 |
| 66 | (230-840-2201) | TANK,(SEE FIG.803) | | .- |
| \0\230-840-2200 | TANK ASS'Y,(SEE FIG.803) | | 185-. |
| (\2\230-840-1410) | TANK,(SEE FIG.803) | | (185-1262) |
| 67 | 01010-31025 | BOLT | | 185- |
| 68 | 01580-01008 | NUT | | 1252- |
| 01500-31008 | NUT | | 185-1251 |
| 69 | 01602-01030 | WASHER | | 185- |
| 70 | 230-840-1561 | TUBE | | 1252- |
| 230-840-1560 | TUBE | | 185-1251 |
| 71 | 07260-02609 | HOSE | | 185- |
| 72 | 07280-04126 | CLAMP | | 185- |
| 73 | 230-840-1571 | TUBE | | 1036- |
| 230-840-1570 | TUBE | | 185-800 |
| 74 | 230-840-1614 | TUBE | | 1263- |
| 230-840-1612 | TUBE | | 1036-1262 |
| 230-840-1610 | TUBE | | 185-800 |
| 75 | 07000-03028 | O-RING | | 185- |
| 76 | 01010-31030 | BOLT | | 185- |
| 77 | 01602-01030 | WASHER | | 185- |
| 78 | 07230-10422 | UNION | | 1252- |
| 07230-00422 | UNION | | 185-1251 |
| 79 | 07002-02034 | O-RING | | 1036- |
| 80 | 230-840-1473 | TUBE | | 1252- |
| 230-840-1472 | TUBE | | 1036-1251 |
| 230-840-1470 | TUBE | | 185-800 |
| 81 | 230-840-1461 | TUBE | | 1036- |
| 230-840-1460 | TUBE | | 185-800 |
| 82 | 230-840-1631 | CLAMP | | 1036- |
| 230-840-1630 | U-BOLT | | 185-800 |
| 83 | 01010-30820 | BOLT | | 1252- |
| 01040-30820 | BOLT | | 1036-1251 |
| 01500-30605 | NUT | | 185-800 |
| 84 | 01602-00825 | WASHER | | 185- |
| 85 | 230-840-1532 | TUBE | | 1252- |
| 230-840-1531 | TUBE | | 1036-1251 |
| 230-840-1530 | TUBE | | 185-800 |
| 86 | 230-840-1553 | TUBE | | 1557- |
| 230-840-1552 | TUBE | | 1263-1556 |
| 230-840-1551 | TUBE | | 1252-1262 |
| 230-840-1550 | TUBE | | 185-1251 |
| 87 | 07105-20408 | HOSE | | .- |
| \0\07105-20407 | HOSE | | 1252-. |
| 07105-00407 | HOSE | | 185-1251 |
| 88 | 230-840-1510 | NIPPLE | | 185- |
| 89 | 230-840-1653 | TUBE | | 1557- |
| 230-840-1652 | TUBE | | 1263-1556 |
| 230-840-1651 | TUBE | | 1252-1262 |
| 230-840-1650 | TUBE | | 1036-1251 |
| 90 | 233-41-14210 | CLIP | | 1263- |
| 233-41-14210 | CLIP | | 185-1262 |
| 91 | 01010-30635 | BOLT | | 1263- |
| 01010-30635 | BOLT | | 185-1262 |
| 92 | 01602-00619 | WASHER | | 1263- |
| 01602-00619 | WASHER | | 185-1262 |
| 93 | 230-840-1492 | TUBE | | 1252- |
| 230-840-1491 | TUBE | | 1036-1251 |
| 230-840-1490 | TUBE | | 185-800 |
| 94 | 230-840-1482 | TUBE | | 1252- |
| 230-840-1481 | TUBE | | 1036-1251 |
| 230-840-1480 | TUBE | | 185-800 |
| 95 | 230-840-1432 | TUBE | | 1252- |
| 230-840-1431 | TUBE | | 1036-1251 |
| 230-840-1430 | TUBE | | 185-800 |
| 96 | 01010-30635 | BOLT | | 1263- |
| 01010-30635 | BOLT | | 1036-1262 |
| 97 | 01602-00619 | WASHER | | 1263- |
| 01602-00619 | WASHER | | 1036-1262 |
| 98 | 07213-51217 | CONNECTOR | | 1252- |
| 07213-01217 | CONNECTOR | | 185-1251 |
| 99 | 230-840-1321 | ROD | | 1036- |
| 230-840-1320 | ROD | | 185-927 |
| 100 | 230-840-1920 | PLATE | | 1036- |
| 101 | 07042-00211 | PLUG | | 1036- |
| 102 | 230-840-1520 | NIPPLE | | 185- |
| 103 | 07042-00108 | PLUG | | 185- |
| 104 | 01580-00605 | NUT | | 1263- |
| 105 | 04064-02512 | RING | | 1263- |
| 106 | 230-840-1980 | BRACKET | | 1036- |
| 230-840-1420 | BRACKET | | 185-800 |
| 107 | 230-840-1990 | SEAT | | 1036- |
| 108 | 07020-00000 | FITTING | | 1521- |
| 109 | 01000-30816 | BOLT | | 185-800 |
| 110 | 01602-00825 | WASHER | | 185-800 |
| 111 | 230-840-1450 | CLIP | | 185-800 |
| 112 | 230-840-14440 | BOSS | | 185-800 |
| 113 | 230-840-1580 | U-BOLT | | 185-800 |
| 114 | 230-840-1590 | BRACKET | | 185-800 |
| 115 | 01602-00619 | WASHER | | 185-800 |
| 116 | 01500-30605 | NUT | | 185-800 |
| 117 | 230-840-1580 | U-BOLT | | 185-800 |
| 118 | 230-840-1640 | BRACKET | | 185-800 |
| 119 | 01602-00619 | WASHER | | 185-800 |
| 120 | 01500-30605 | NUT | | 185-800 |
| 121 | 08034-00834 | BAND | | .- |
