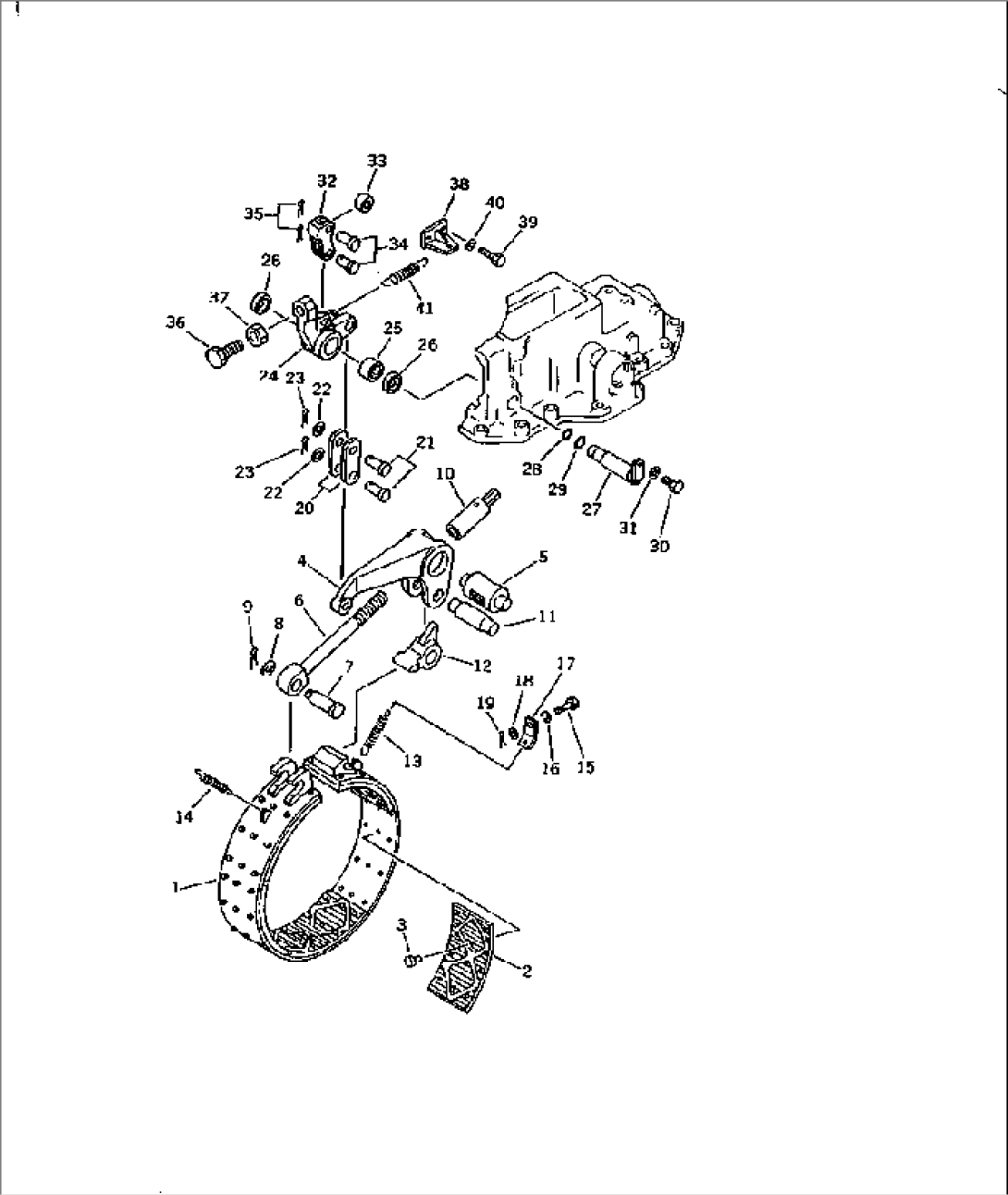

| Item | Part No. | Part Name | Qty | Serial No. |
| 130-33-72104 | BRAKE BAND ASS'Y | 81478- | ||
| \0\130-33-72103 | BRAKE BAND ASS'Y | 81431-81477 | ||
| 130-33-72102 | BRAKE BAND ASS'Y | 81261-81430 | ||
| 130-33-72100 | BRAKE BAND ASS'Y | 80588-81260 | ||
| 1 | 130-33-71110 | BAND,BRAKE | 80588- | |
| 2 | 130-33-72123 | LINING,BRAKE | 81478- | |
| 2 | \0\130-33-72122 | LINING,BRAKE | 81431-81477 | |
| 2 | 130-33-72121 | LINING,BRAKE | 81261-81430 | |
| 2 | 130-33-72120 | LINING,BRAKE | 80588-81260 | |
| 3 | 04412-00512 | RIVET | 80588- | |
| 4 | 144-33-51180 | LEVER | 80588- | |
| 5 | 144-33-11310 | PIN | 80588- | |
| 6 | 144-33-21210 | ROD | 80588- | |
| 7 | 144-33-11330 | PIN | 80588- | |
| 8 | 01640-21626 | WASHER | 80588- | |
| 9 | 04050-14028 | PIN,COTTER | 80588- | |
| 10 | 144-33-21220 | NUT | 80588- | |
| 11 | 144-33-11280 | PIN | 80588- | |
| 12 | 144-33-51190 | END | 80588- | |
| 13 | 130-33-71130 | SPRING | 80588- | |
| 14 | 144-33-11260 | SPRING | 80588- | |
| 15 | 01012-51030 | BOLT | 80588- | |
| 16 | 01602-21030 | WASHER,SPRING | 80588- | |
| 17 | 130-33-71310 | PLATE | 80588- | |
| 18 | 01641-21016 | WASHER | 80588- | |
| 19 | 04050-12020 | PIN,COTTER | 80588- | |
| 20 | 144-33-21230 | PLATE | 80588- | |
| 21 | 04205-01848 | PIN | 80588- | |
| 22 | 01640-01826 | WASHER | 80588- | |
| 23 | 04050-14028 | PIN,COTTER | 80588- | |
| 24 | 144-33-21240 | LEVER,L.H. | 80588- | |
| 24 | 144-33-21250 | LEVER,R.H. | 80588- | |
| 25 | 144-33-21370 | BEARING | 80588- | |
| 26 | 144-33-21380 | COLLAR | 80588- | |
| 27 | 144-33-21280 | SHAFT | 80588- | |
| 28 | 07000-03022 | O-RING | 80588- | |
| 29 | 07000-03025 | O-RING | 80588- | |
| 30 | 01010-51025 | BOLT | 80588- | |
| 31 | 01602-21030 | WASHER,SPRING | 80588- | |
| 32 | 144-33-21260 | LEVER | 80588- | |
| 33 | 170-33-13330 | ROLLER | 80588- | |
| 34 | 04205-01638 | PIN | 80588- | |
| 35 | 04050-14028 | PIN,COTTER | 80588- | |
| 36 | 144-33-21290 | BOLT | 80588- | |
| 37 | 01583-12012 | NUT | 80588- | |
| 38 | 130-33-62250 | BRACKET | 80588- | |
| 39 | 01010-51025 | BOLT | 80588- | |
| 40 | 01602-21030 | WASHER,SPRING | 80588- | |
| 41 | 135-43-21480 | SPRING | 80588- |
