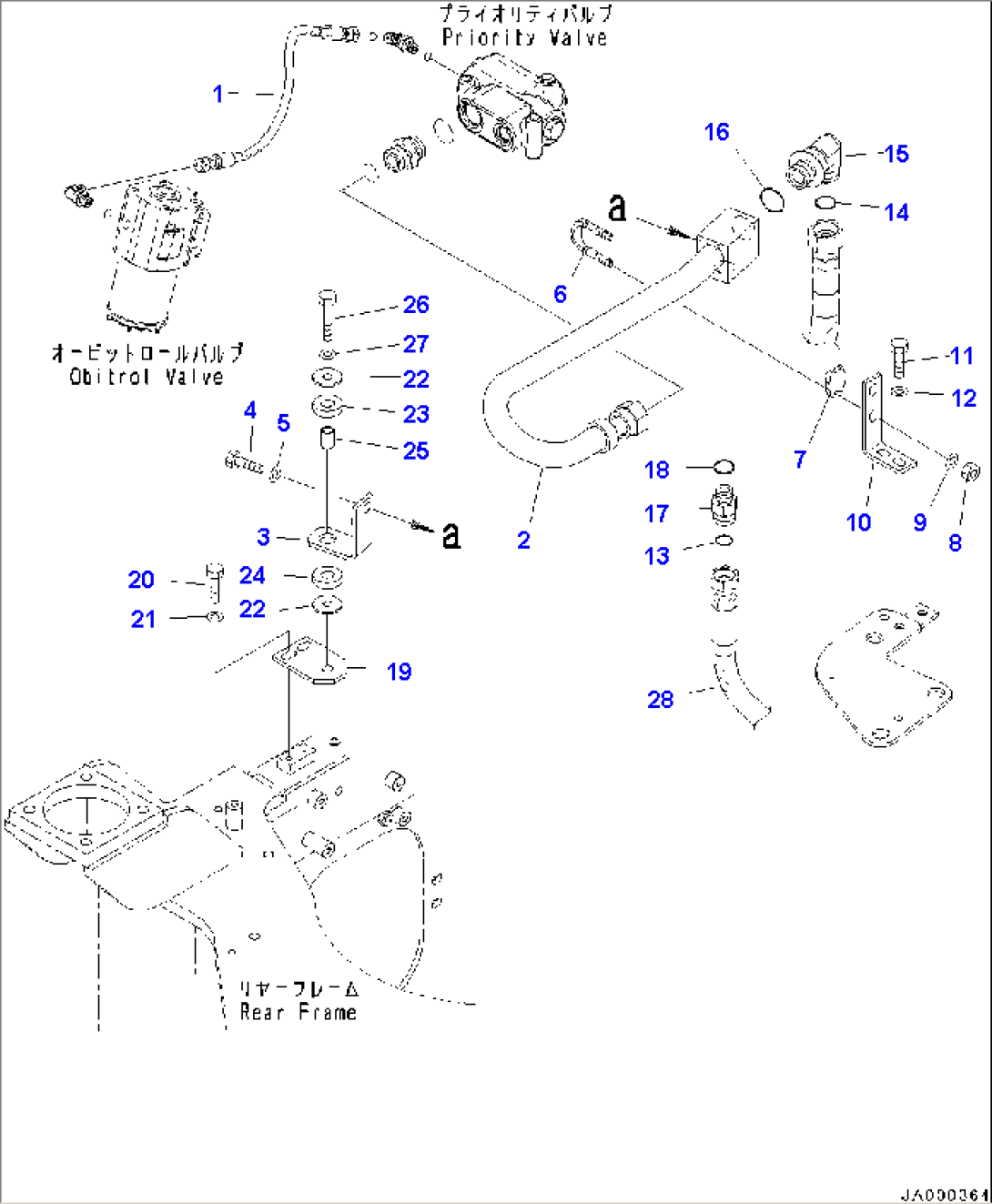

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02765-002A4 | Hose, Face Seal Type | C10001- | |
| 2 | 418-62-31525 | Tube | C10001- | |
| 3 | 417-62-31240 | Plate | C10001- | |
| 4 | 01010-81225 | Bolt | C10001- | |
| 5 | 01643-31232 | Washer | C10001- | |
| 6 | 07283-33450 | Clip | C10001- | |
| 7 | 07283-53444 | Seat | C10001- | |
| 8 | 01597-01009 | Nut | C10001- | |
| 9 | 01643-31032 | Washer | C10001- | |
| 10 | 418-64-35530 | Plate | C10001- | |
| 11 | 01010-81025 | Bolt | C10001- | |
| 12 | 01643-31032 | Washer | C10001- | |
| 13 | 02896-11018 | O-ring | C10001- | |
| 14 | 11Y-62-11980 | O-ring | C10001- | |
| 15 | 21W-62-42640 | Elbow | C10001- | |
| 16 | 07002-13334 | O-ring | C10001- | |
| 17 | 02781-00628 | Union | C10001- | |
| 18 | 07002-12434 | O-ring | C10001- | |
| 19 | 418-64-35550 | Plate | C10001- | |
| 20 | 01010-81025 | Bolt | C10001- | |
| 21 | 01643-31032 | Washer | C10001- | |
| 22 | 419-43-17920 | Washer | C10001- | |
| 23 | 417-62-31170 | Cushion | C10001- | |
| 24 | 417-62-31180 | Cushion | C10001- | |
| 25 | 417-54-13470 | Spacer | C10001- | |
| 26 | 01010-81255 | Bolt | C10001- | |
| 27 | 01643-31232 | Washer | C10001- | |
| 28 | (417-62-41650) | Hose | - | |
| (417-62-41650) | Hose | - |
