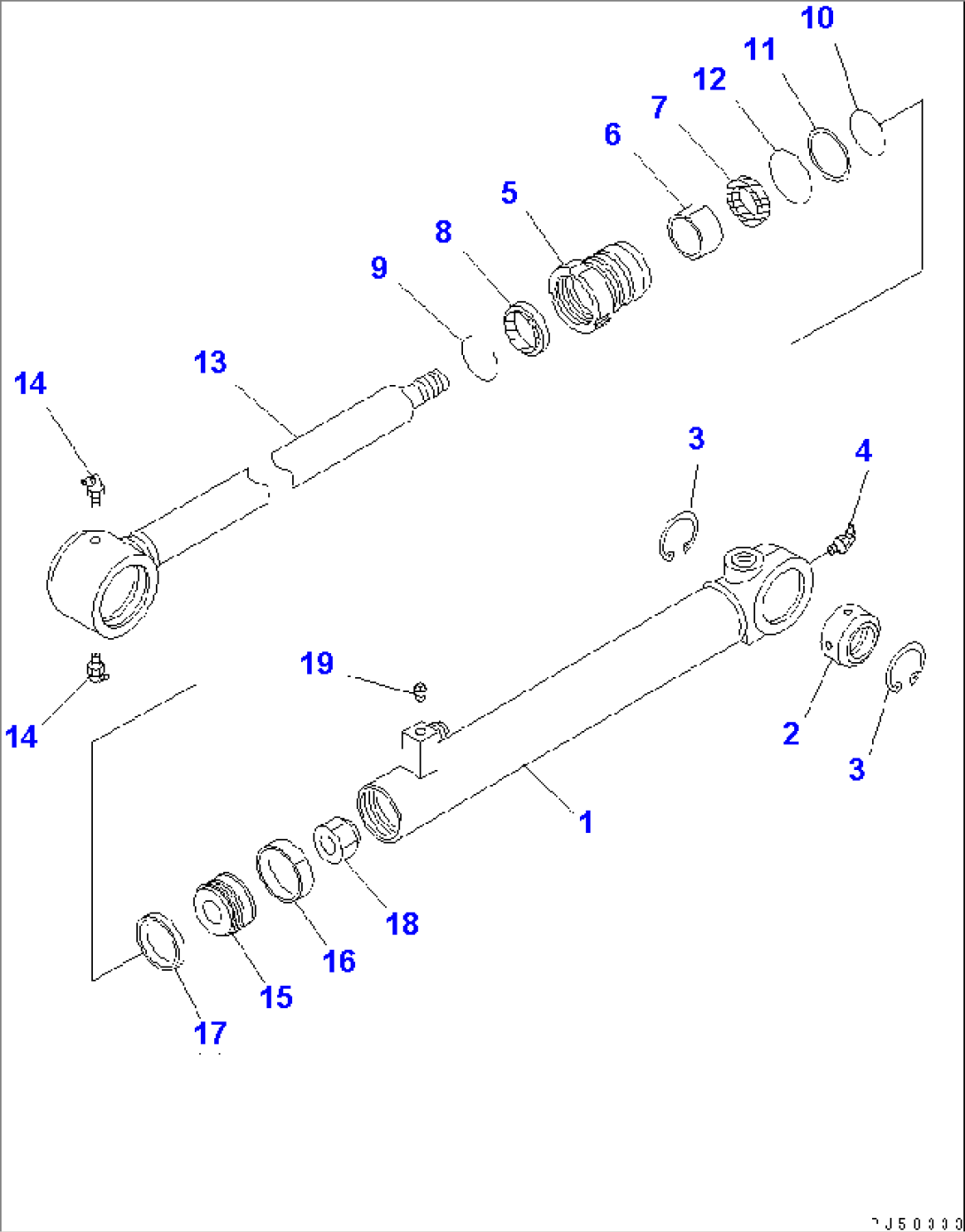

| Item | Part No. | Part Name | Qty | Serial No. |
| 23B-63-01310 | CYLINDER ASS'Y | .- | ||
| \0\23B-63-72302 | CYLINDER ASS'Y | 1001-. | ||
| 1 | 23B-63-72341 | CYLINDER | 4001- | |
| 2 | 707-76-35010 | BUSHING | 4001- | |
| 3 | 04065-05520 | RING,SNAP | 4001- | |
| 4 | 07020-00900 | FITTING,GREASE | 4001- | |
| 5 | 707-29-50981 | HEAD,CYLINDER | 4001- | |
| 6 | 07177-03525 | BUSHING | 4001- | |
| 7 | 707-51-35210 | PACKING,ROD | 4001- | |
| 8 | 175-63-75190 | SEAL,DUST | 4001- | |
| 9 | 07179-12047 | RING,SNAP | 4001- | |
| 10 | 07000-13045 | O-RING | 4001- | |
| 11 | 707-35-99500 | RING,BACK-UP | 4001- | |
| 12 | 07000-13048 | O-RING | 4001- | |
| 13 | 23B-63-72321 | ROD,PISTON | 4001- | |
| 14 | 07020-00675 | FITTING,GREASE | 4001- | |
| 15 | 707-36-50531 | PISTON | 4001- | |
| 16 | 10E-63-32390 | RING,WEAR | 4001- | |
| 17 | 707-44-50070 | RING,PISTON | 4001- | |
| 18 | 07165-12022 | NUT,NYLON | 4001- | |
| 19 | 07042-20108 | PLUG | 4001- |
