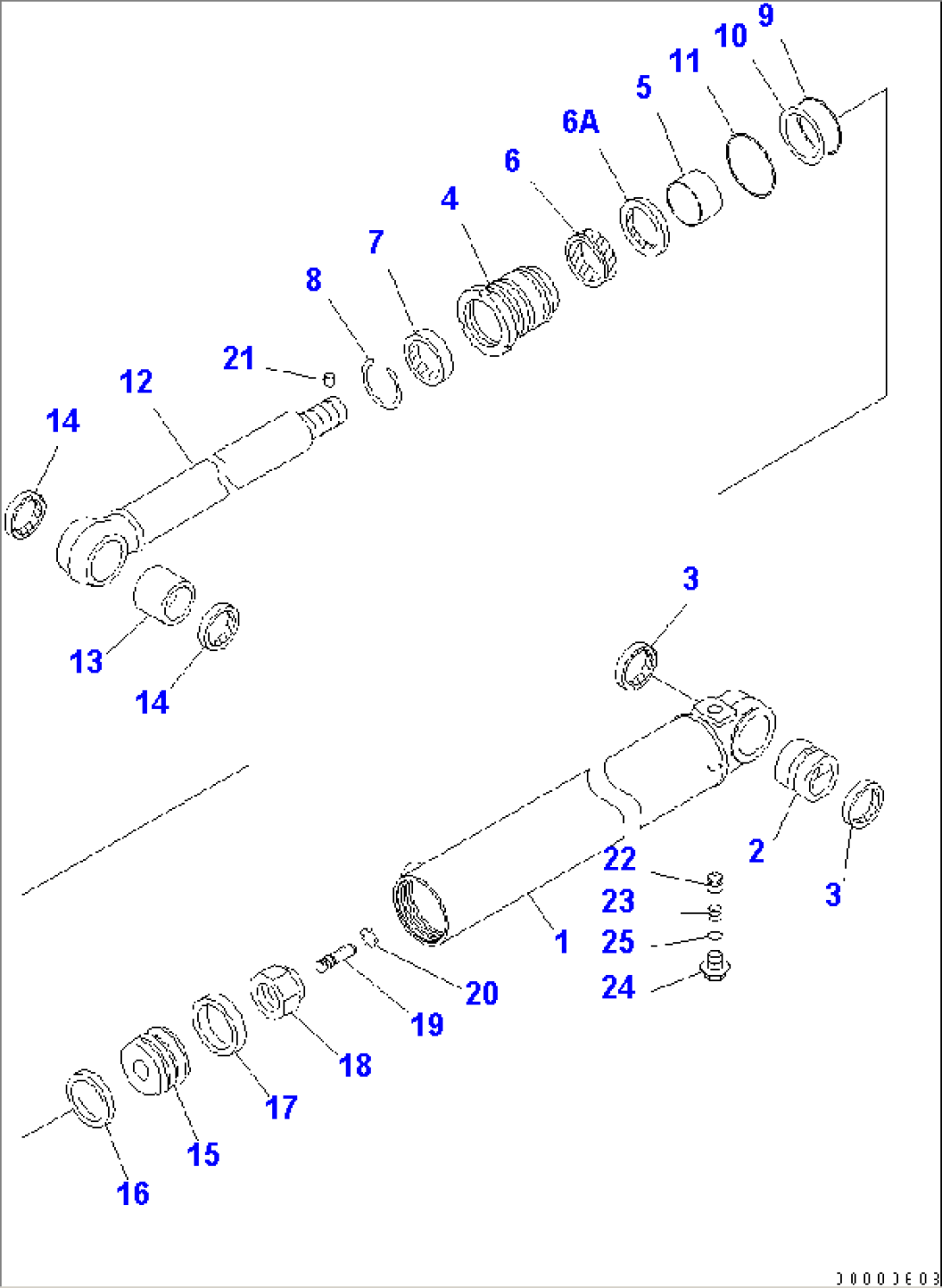

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-00-0Z610 | CYLINDER ASS'Y,L.H. (FINAL COATING) | 1001- | ||
| 707-00-0Z620 | CYLINDER ASS'Y,R.H. (FINAL COATING) | 1001- | ||
| 707-00-0E110 | CYLINDER ASS'Y,L.H. | 1001- | ||
| 707-00-0E120 | CYLINDER ASS'Y,R.H. | 1001- | ||
| 1 | 721-11-11700 | CYLINDER,L.H. | 1001- | |
| 1 | 721-11-11800 | CYLINDER,R.H. | 1001- | |
| 2 | 707-76-65120 | BUSHING | 1001- | |
| 3 | 417-09-11120 | SEAL,DUST (KIT) | 1001- | |
| 4 | 707-29-11640 | HEAD,CYLINDER | 1001- | |
| 5 | 707-52-90460 | BUSHING | 1001- | |
| 6 | 707-51-70730 | PACKING,ROD (KIT) | 1001- | |
| 6A | 707-51-70640 | RING,BUFFER (KIT) | 1001- | |
| 7 | 707-56-70540 | SEAL,DUST (KIT) | 1001- | |
| 8 | 07179-12084 | RING,SNAP | 1001- | |
| 9 | 07000-52105 | O-RING (KIT) | 1001- | |
| 10 | 07146-02106 | RING,BACK-UP (KIT) | 1001- | |
| 11 | 07000-52110 | O-RING (KIT) | 1001- | |
| 12 | 721-58-70170 | ROD,PISTON | 1001- | |
| 13 | 707-76-65120 | BUSHING | 1001- | |
| 14 | 417-09-11120 | SEAL,DUST (KIT) | 1001- | |
| 15 | 707-36-11810 | PISTON | 1001- | |
| 16 | 707-44-11180 | RING,PISTON (KIT) | 1001- | |
| 17 | 07156-01112 | RING,WEAR (KIT) | 1001- | |
| 18 | 07165-15252 | NUT | 1001- | |
| 19 | 707-71-70120 | PLUNGER | 1001- | |
| 20 | 04260-00635 | BALL | 1001- | |
| 21 | 707-71-91280 | CAP | 1001- | |
| 22 | 707-83-13010 | VALVE | 1001- | |
| 23 | 07750-01628 | SPRING | 1001- | |
| 24 | 707-87-14070 | PLUG | 1001- | |
| 25 | 07002-52034 | O-RING (KIT) | 1001- | |
| SERVICE KIT | ||||
| K | 707-99-37570 | SERVICE KIT | 1001- |
