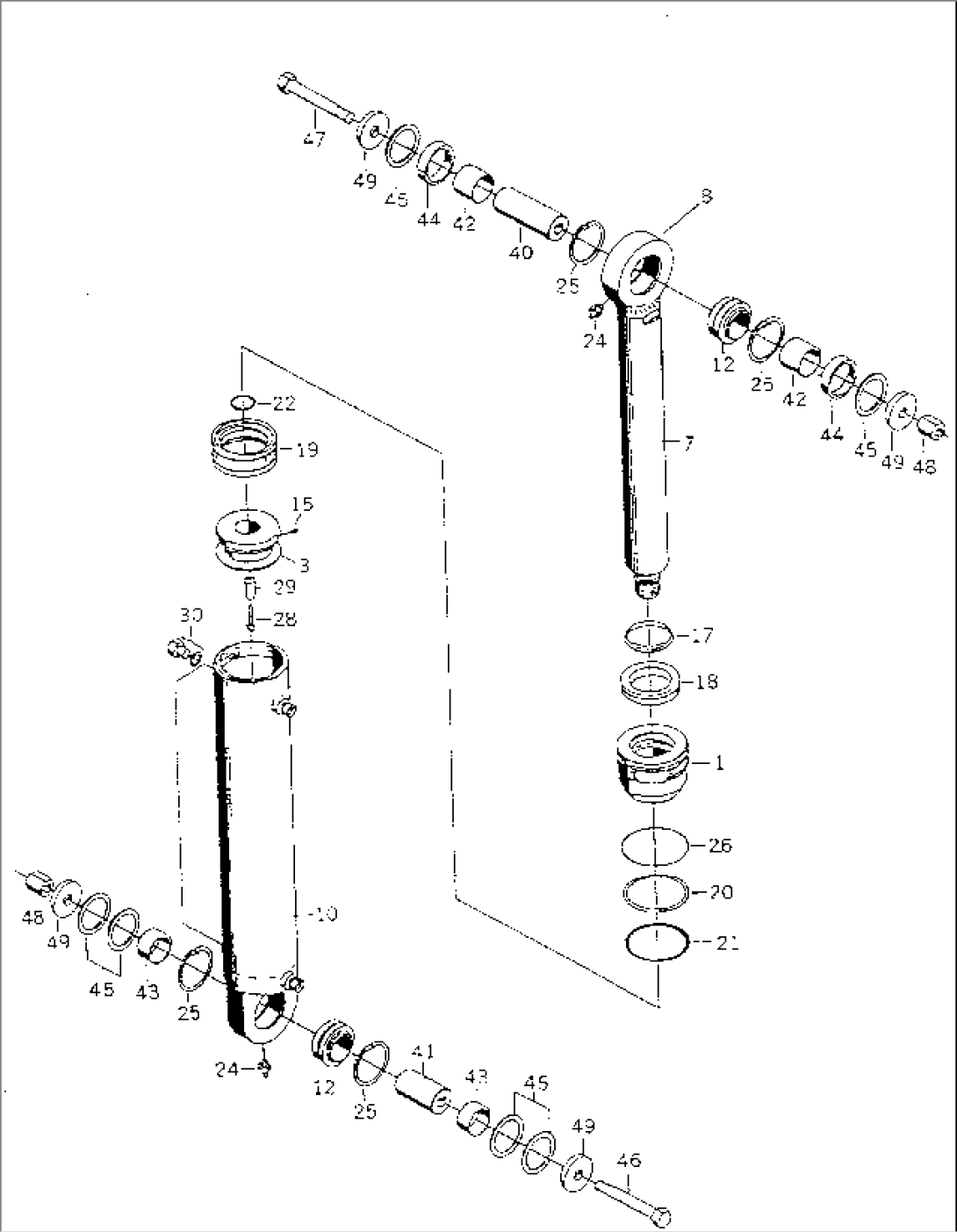

| Item | Part No. | Part Name | Qty | Serial No. |
| BW055604 | CYLINDER ASS'Y,STEERING | 303028- | ||
| BW055284 | CYLINDER ASS'Y,STEERING | 303001-303027 | ||
| 1 | BW055271 | HEAD,CYLINDER | 303001- | |
| 3 | BW055273 | PISTON | 303001- | |
| 7 | BW055605 | ROD,PISTON | 303028- | |
| 7 | BW055272 | ROD,PISTON | 303001-303027 | |
| 8 | BW055274 | EYE (WELDED) | 303001- | |
| 10 | BW055551 | CYLINDER | 303001- | |
| 12 | BW055099 | BEARING | 303001- | |
| 15 | BW055355 | SCREW | 303001- | |
| 17 | \6\ | RING,DUST (KIT) | 303001- | |
| 18 | \6\ | RING,SEAL (KIT) | 303001- | |
| 19 | \6\ | GASKET (KIT) | 303001- | |
| 20 | \6\ | RING,SEAL (KIT) | 303001- | |
| 21 | \6\ | O-RING (KIT) | 303001- | |
| 22 | \6\ | O-RING (KIT) | 303001- | |
| 24 | BW065101 | FITTING,GREASE | 303001- | |
| 25 | BW058022 | RING,SNAP | 303001- | |
| 26 | BW055276 | O-RING | 303001- | |
| 28 | BW061187 | BOLT,(M6X35) | 303001- | |
| 29 | BW055354 | SLEEVE | 303001- | |
| 30 | BW055589 | PLUG | 303001- | |
| 30 | BW066859 | WASHER | 303001- | |
| 40 | BW047042 | SPACER | 303028- | |
| 40 | BW043924 | SPACER | 303001-303027 | |
| 41 | BW047041 | SPACER | 303028- | |
| 41 | BW043923 | SPACER | 303001-303027 | |
| 42 | BW058076 | RING,INNER | 303001- | |
| 43 | BW058072 | RING,INNER | 303001- | |
| 44 | BW045993 | RING,PROTECTOR | 303001- | |
| 45 | BW053492 | RING,SUPPORT | 303001- | |
| 46 | BW060521 | BOLT,(M16X120) | 303001- | |
| 47 | BW060525 | BOLT,(M16X160) | 303001- | |
| 48 | BW044446 | NUT | 303001- | |
| 49 | BW044239 | WASHER | 303001- | |
| SERVICE KIT | ||||
| KIT | BW055660 | GASKET KIT,STEERING CYLINDER | 303001- |
