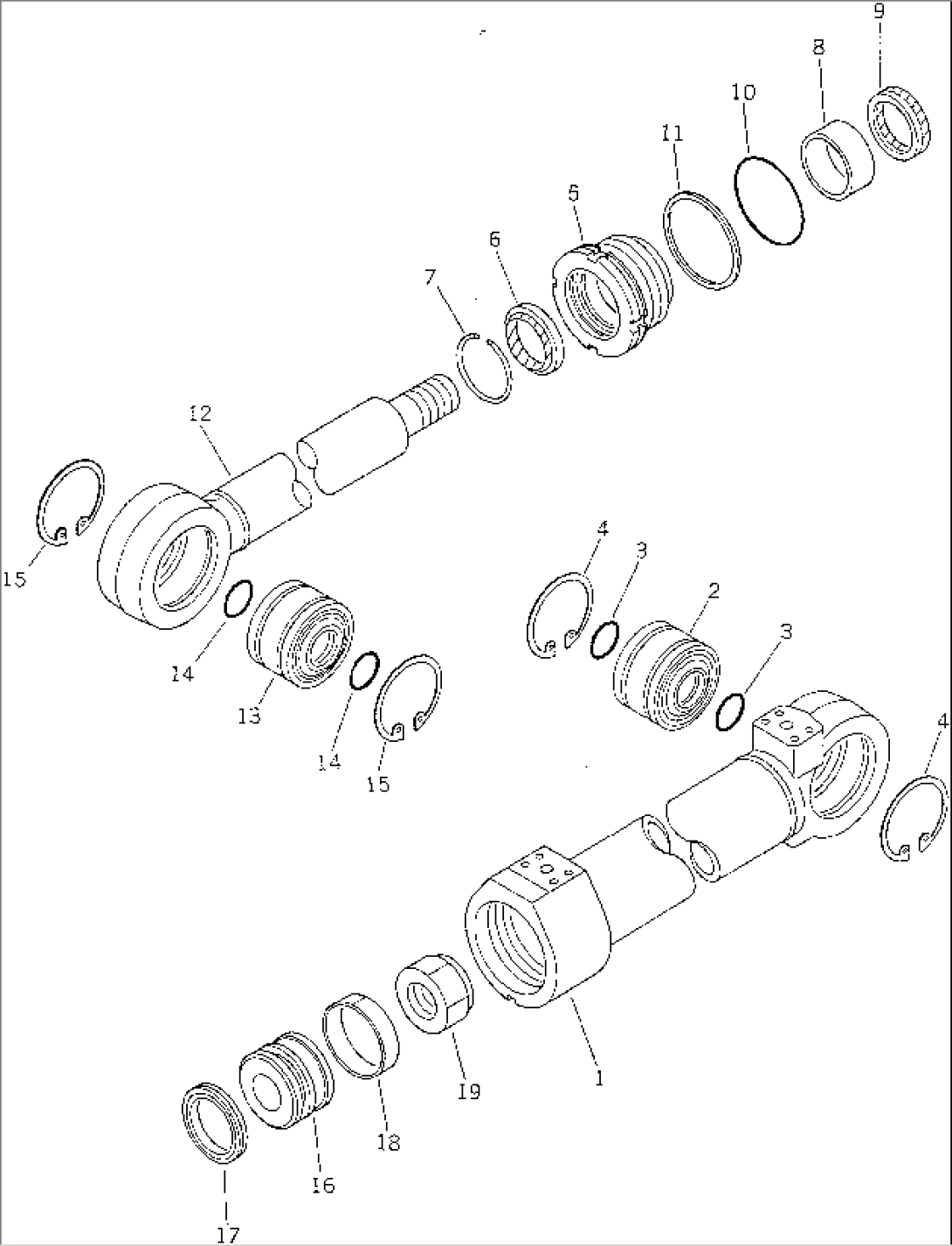

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-63-11501 | CYLINDER ASS'Y | 2306- | ||
| \0\566-63-11500 | CYLINDER ASS'Y | 2001-2305 | ||
| 1 | 566-63-11540 | CYLINDER | 2001- | |
| 2 | 07137-04006 | BUSHING | 2001- | |
| 3 | 07000-03040 | O-RING | 2001- | |
| 4 | 04065-09030 | RING,SNAP | 2001- | |
| 5 | 707-29-90490 | HEAD,CYLINDER | 2001- | |
| 6 | 707-56-60580 | SEAL,DUST | 2001- | |
| 7 | 07179-00082 | RING,SNAP | 2001- | |
| 8 | 07177-06030 | BUSHING | 2001- | |
| 9 | 707-51-60211 | PACKING,ROD | 2001- | |
| 10 | 07000-12095 | O-RING | 2001- | |
| 11 | 07001-02095 | RING,BACK-UP | 2001- | |
| 12 | 566-63-11520 | ROD,PISTON | 2001- | |
| 13 | 07137-04006 | BUSHING | 2001- | |
| 14 | 07000-03040 | O-RING | 2001- | |
| 15 | 04065-09030 | RING,SNAP | 2001- | |
| 16 | 707-36-80081 | PISTON | 2306- | |
| 16 | \1\707-36-80080 | PISTON | 2001-2305 | |
| 17 | 707-44-80180 | RING,PISTON | 2001- | |
| 17 | (\2\707-44-80080) | RING,PISTON | (2001-2305) | |
| 18 | 07155-00820 | RING,WEAR | 2001- | |
| 19 | 07165-13638 | NUT,NYLON | 2001- |
