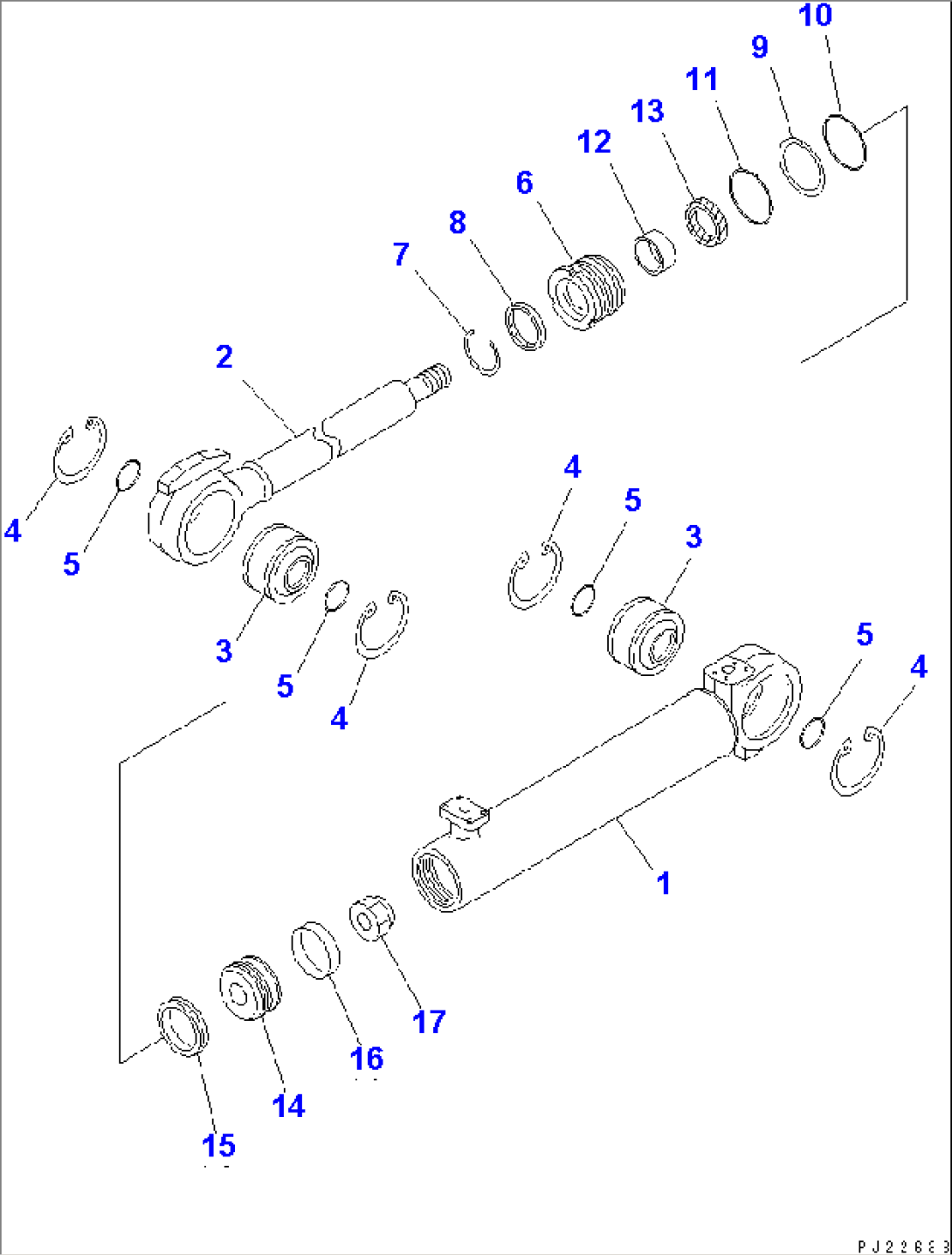

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-63-61100 | CYLINDER ASS'Y | 4001- | ||
| 1 | 569-63-61140 | CYLINDER | 4001- | |
| 2 | 569-63-61120 | ROD,PISTON | 4001- | |
| 3 | 07137-04507 | BUSHING | 4001- | |
| 4 | 04065-01030 | RING,SNAP | 4001- | |
| 5 | 07000-03045 | O-RING (KIT) | 4001- | |
| 6 | 707-29-85740 | HEAD,CYLINDER | 4001- | |
| 7 | 07179-12069 | RING,SNAP | 4001- | |
| 8 | 707-56-55540 | SEAL,DUST (KIT) | 4001- | |
| 9 | 707-35-52770 | RING,BACK-UP (KIT) | 4001- | |
| 10 | 07000-12080 | O-RING (KIT) | 4001- | |
| 11 | 07000-02085 | O-RING (KIT) | 4001- | |
| 12 | 07177-05530 | BUSHING | 4001- | |
| 13 | 707-51-55211 | PACKING,ROD (KIT) | 4001- | |
| 14 | 707-36-85170 | PISTON | 4001- | |
| 15 | 707-44-85180 | RING,PISTON (KIT) | 4001- | |
| 16 | 707-39-85120 | RING,WEAR (KIT) | 4001- | |
| 17 | 07165-13336 | NUT | 4001- |
