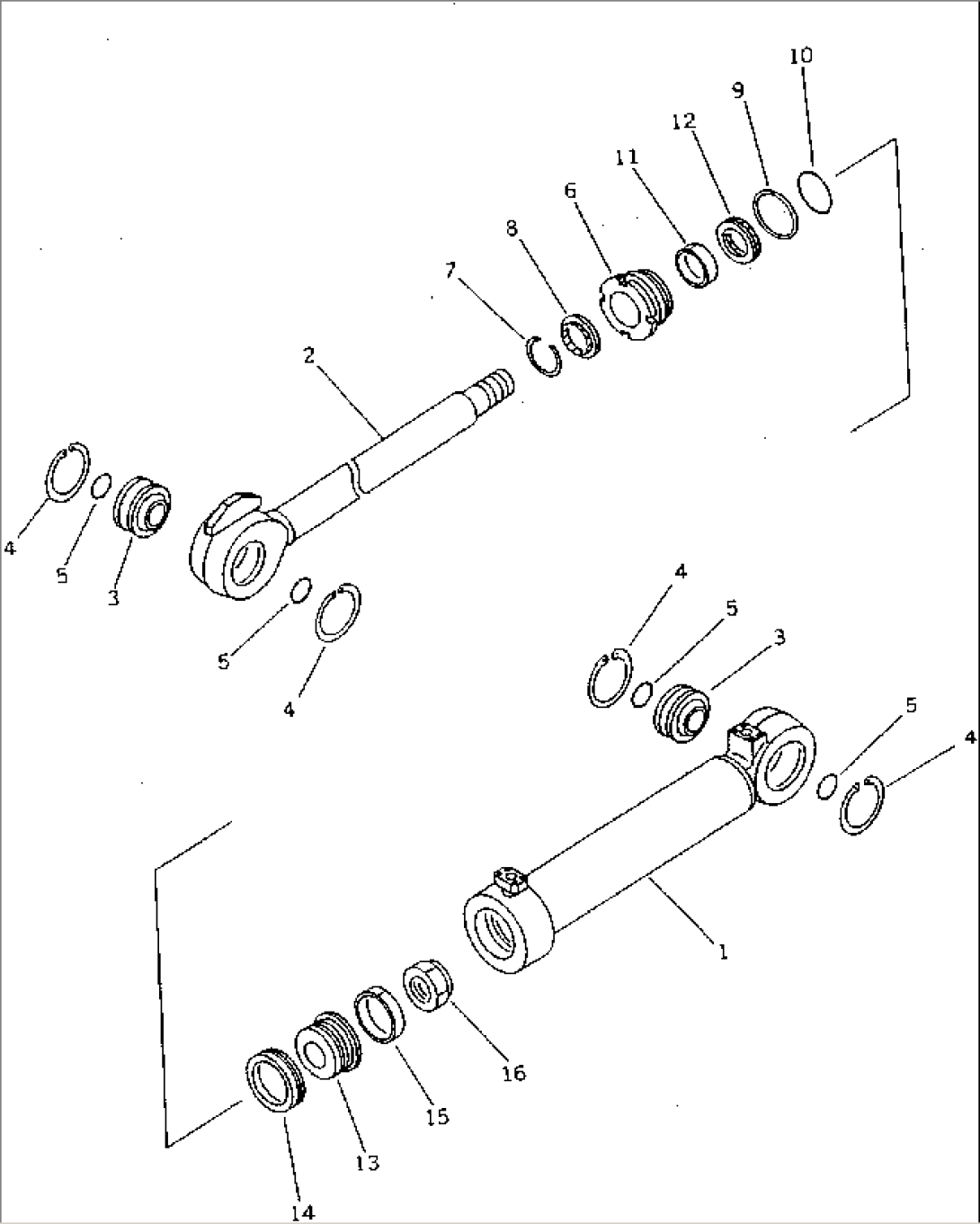

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-63-61102 | CYLINDER ASS'Y | 2001- | ||
| 1 | 561-63-61142 | CYLINDER | 2001- | |
| 2 | 561-63-61121 | ROD,PISTON | 2001- | |
| 3 | 07137-05008 | BUSHING | 2001- | |
| 4 | 04065-01104 | RING,SNAP | 2001- | |
| 5 | 07000-03050 | O-RING (KIT) | 2001- | |
| 6 | 707-29-11590 | HEAD,CYLINDER | 2001- | |
| 7 | 07179-12084 | RING,SNAP | 2001- | |
| 8 | 707-56-70540 | SEAL,DUST (KIT) | 2001- | |
| 9 | 20D-63-32290 | RING,BACK-UP (KIT) | 2001- | |
| 10 | 07000-12115 | O-RING (KIT) | 2001- | |
| 11 | 07177-07030 | BUSHING | 2001- | |
| 12 | 707-51-70211 | PACKING,ROD (KIT) | 2001- | |
| 13 | 707-36-11381 | PISTON | 2001- | |
| 14 | 707-44-11180 | RING,PISTON (KIT) | 2001- | |
| 15 | 07155-01125 | RING,WEAR (KIT) | 2001- | |
| 16 | 07165-15252 | NUT,NYLON | 2001- |
