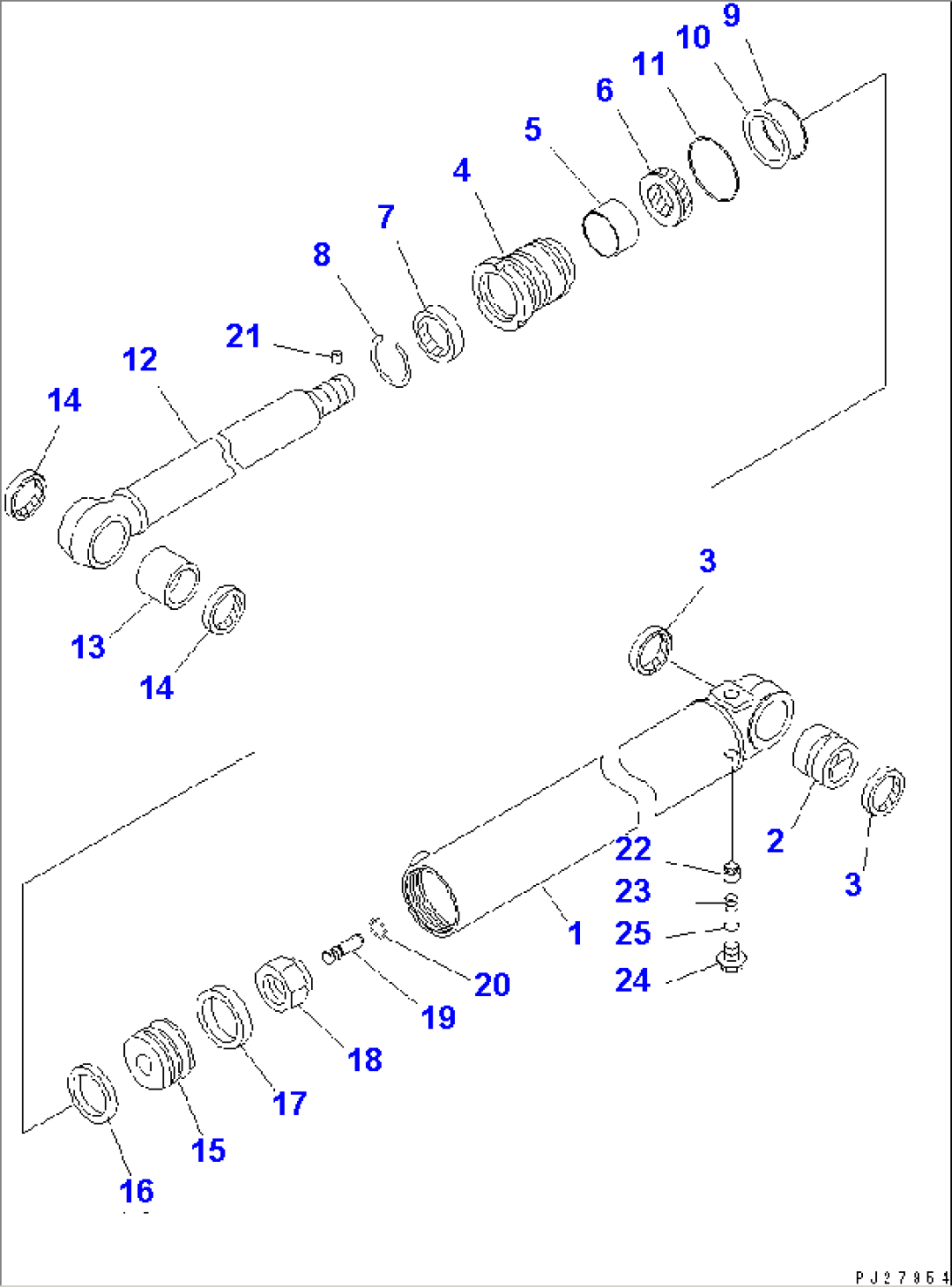

| Item | Part No. | Part Name | Qty | Serial No. |
| (\8\707-00-0Z511) | CYLINDER ASS'Y,(FINAL COATING) | 1001- | ||
| 707-00-0C781 | CYLINDER ASS'Y | 1001- | ||
| 1 | 721-11-11900 | CYLINDER | 1001- | |
| 2 | 707-76-65120 | BUSHING | 1001- | |
| 3 | 417-09-11120 | SEAL,DUST (KIT) | 1001- | |
| 4 | 707-29-11720 | HEAD,CYLINDER | 1001- | |
| 5 | 707-52-10700 | BUSHING | 1001- | |
| 6 | 707-51-70211 | PACKING,ROD (KIT) | 1001- | |
| 7 | 707-56-70540 | SEAL,DUST (KIT) | 1001- | |
| 8 | 07179-12084 | RING,SNAP | 1001- | |
| 9 | 07000-12105 | O-RING (KIT) | 1001- | |
| 10 | 07146-02106 | RING,BACK-UP (KIT) | 1001- | |
| 11 | 07000-12110 | O-RING (KIT) | 1001- | |
| 12 | 721-58-70110 | ROD,PISTON | 1001- | |
| 13 | 707-76-65120 | BUSHING | 1001- | |
| 14 | 417-09-11120 | SEAL,DUST (KIT) | 1001- | |
| 15 | 707-36-11810 | PISTON | 1001- | |
| 16 | 707-44-11180 | RING,PISTON (KIT) | 1001- | |
| 17 | 07156-01112 | RING,WEAR (KIT) | 1001- | |
| 18 | 07165-15252 | NUT | 1001- | |
| 19 | 707-71-70140 | PLUNGER | 1001- | |
| 20 | 04260-00635 | BALL | 1001- | |
| 21 | 707-71-91280 | CAP | 1001- | |
| 22 | 707-83-13010 | VALVE | 1001- | |
| 23 | 07750-01628 | SPRING | 1001- | |
| 24 | 707-87-14070 | PLUG | 1001- | |
| 25 | 07002-12034 | O-RING (KIT) | 1001- | |
| SERVICE KIT | ||||
| KIT | 707-98-37680 | SERVICE KIT | 1001- |
