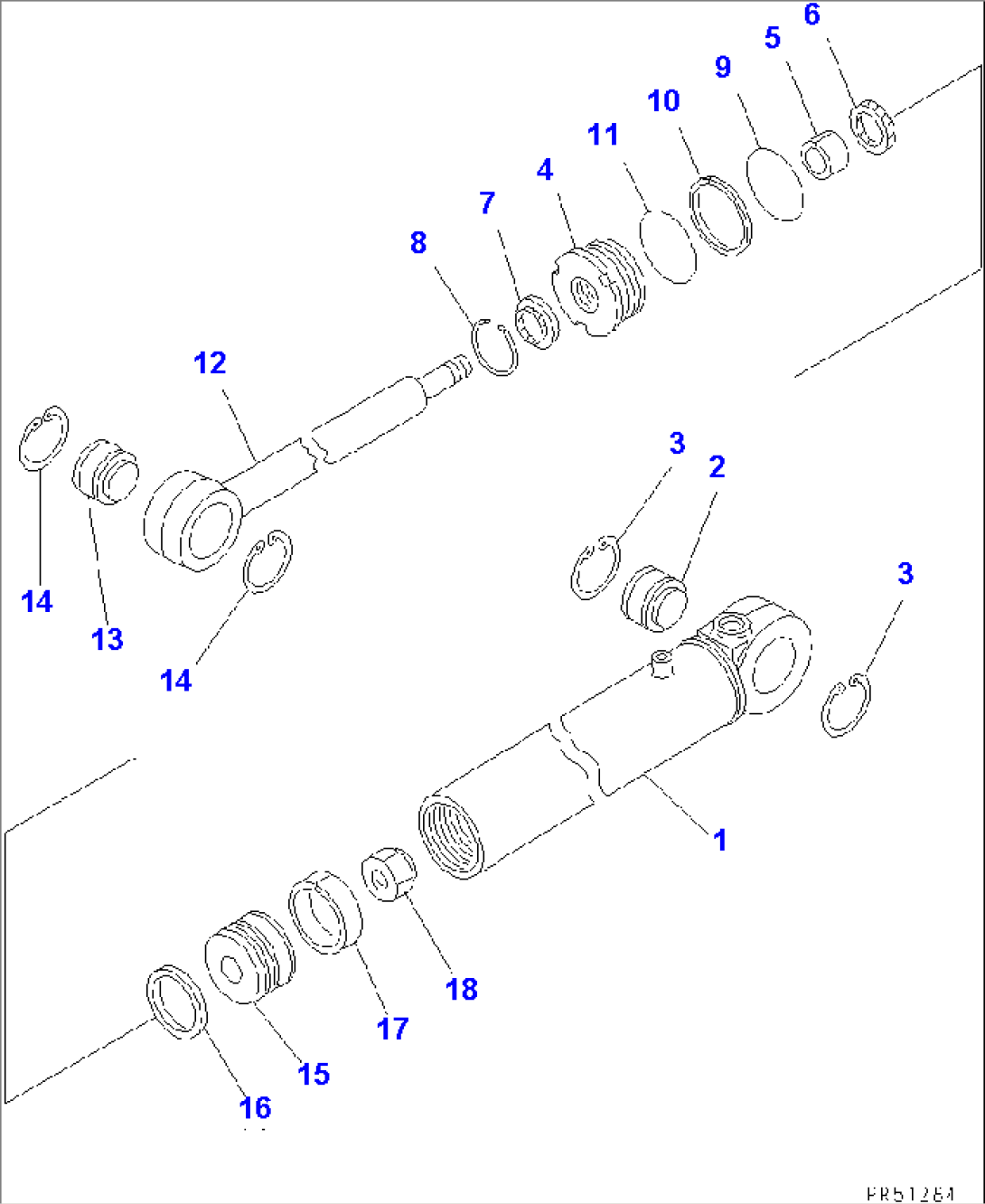

| Item | Part No. | Part Name | Qty | Serial No. |
| 23D-63-18101 | CYLINDER ASS'Y | 10001- | ||
| 1 | 23D-63-18141 | CYLINDER | 10001- | |
| 2 | 707-76-35010 | BUSHING | 10001- | |
| 3 | 04065-05520 | RING,SNAP | 10001- | |
| 4 | 707-29-70920 | HEAD,CYLINDER | 10001- | |
| 5 | 07177-03525 | BUSHING | 10001- | |
| 6 | 707-51-35210 | PACKING,ROD | 10001- | |
| 7 | 175-63-75190 | SEAL,DUST | 10001- | |
| 8 | 07179-12047 | RING,SNAP | 10001- | |
| 9 | 07000-12065 | O-RING | 10001- | |
| 10 | 07001-02065 | RING,BACK-UP | 10001- | |
| 11 | 07000-02070 | O-RING | 10001- | |
| 12 | 23D-63-18120 | ROD,PISTON | 10001- | |
| 13 | 707-76-35010 | BUSHING | 10001- | |
| 14 | 04065-05520 | RING,SNAP | 10001- | |
| 15 | 707-36-70910 | PISTON | 10001- | |
| 16 | 707-44-70070 | RING,PISTON | 10001- | |
| 17 | 07155-00720 | RING,WEAR | 10001- | |
| 18 | 07165-12426 | NUT,NYLON | 10001- |
