| Item | Part No. | Part Name | Qty | Serial No. |

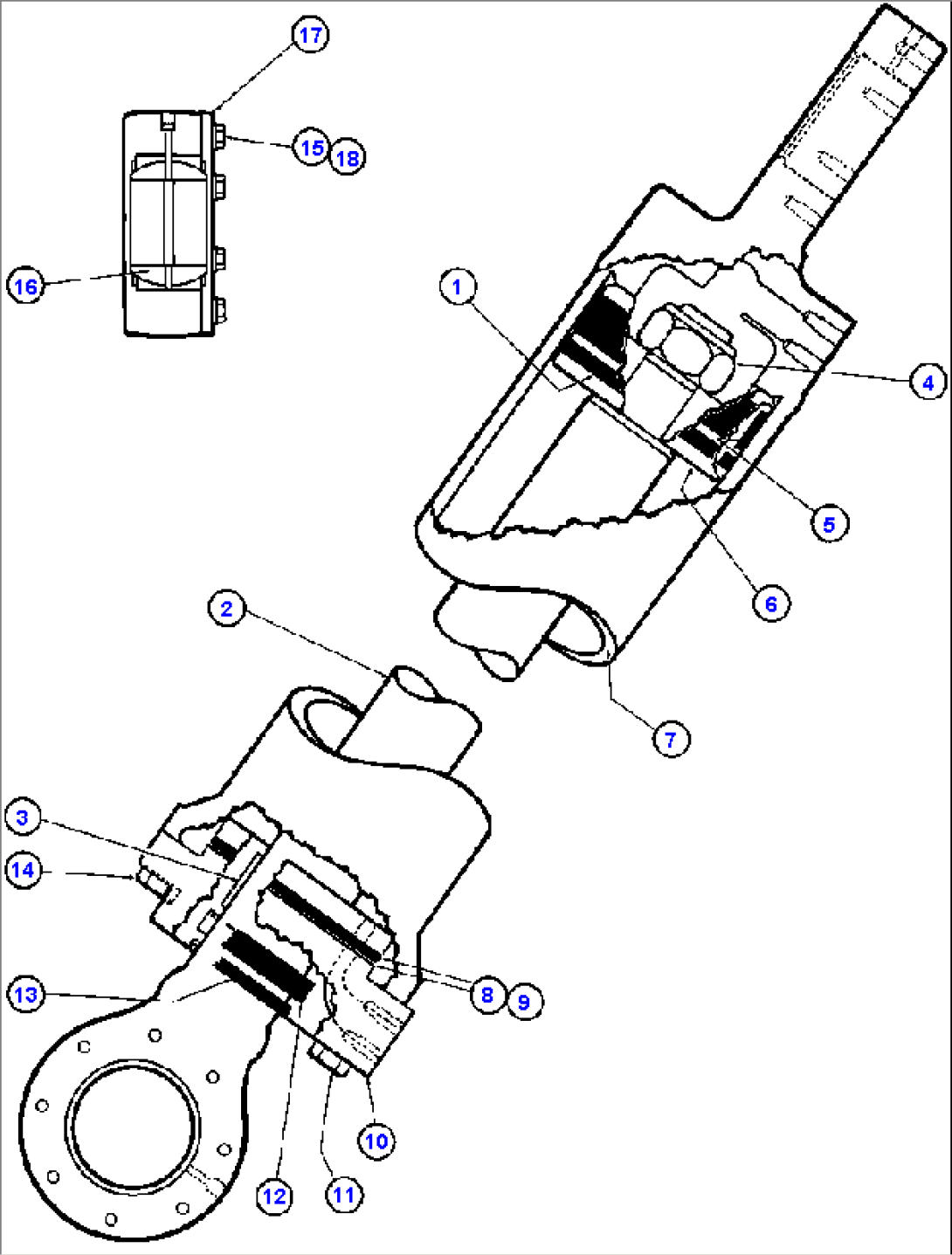

| 0 | EH5930 | STEERING CYLINDER ASSEMBLY | ||
| 1 | PC0585 | PISTON SEAL ASSEMBLY (1) | ||
| 2 | EH5935 | ROD | ||
| 3 | PB9518 | BEARING (1) | ||
| 4 | VL7694 | LOCKNUT, NYLON - 1 3/4" (1) | ||
| 5 | VL7699 | BEARING (1) | ||
| 6 | EH5932 | PISTON | ||
| 7 | EH5933 | HOUSING | ||
| 8 | SL8048 | SEAL, O-RING (1) | ||
| 9 | WA1433 | RING, BACKUP (1) | ||
| 10 | EC4589 | GLAND | ||
| 11 | TD8516 | CAPSCREW - 3/4" - 10NC X 3 1/4" G8 | ||
| 12 | PC0557 | SEAL, ROD | ||
| 13 | PB8937 | WIPER, ROD | ||
| 14 | TD7882 | CAPSCREW - 3/4" - 10NC X 1 3/4" | ||
| 15 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 16 | PC0828 | BEARING, SPHERICAL | ||
| 17 | TY9714 | RETAINER | ||
| 18 | C0312 | LOCKWASHER - 3/8" | ||
| NS|20 | AK4370 | NOTE: (1) INCLUDED IN AK4370 SEAL KIT. | ||
| NS|21 | (QUANTITIES SHOWN ARE FOR ONE SIDE ONLY) |
