| Item | Part No. | Part Name | Qty | Serial No. |

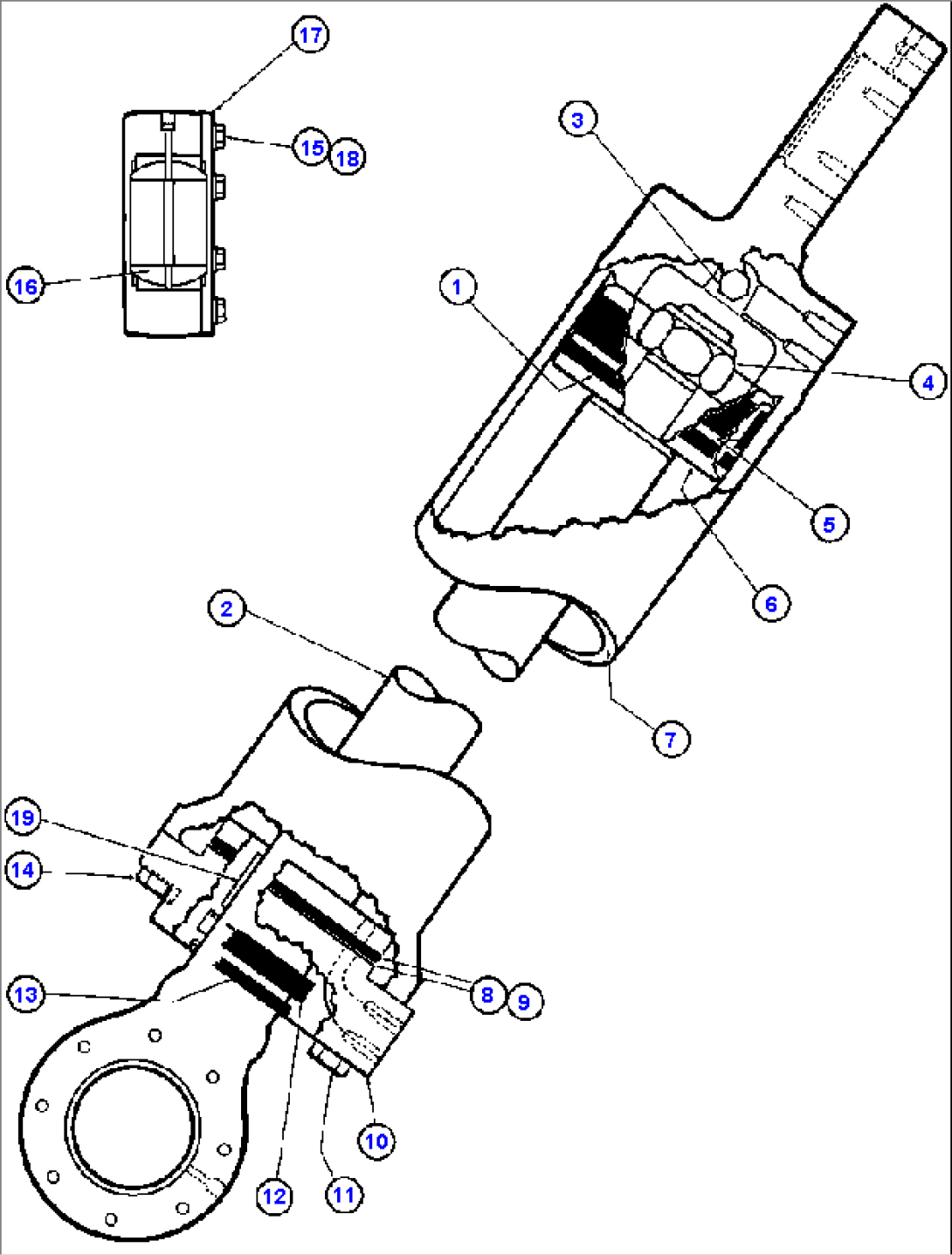

| 0 | EC4587 | STEERING CYLINDER ASSEMBLY | ||
| 1 | VL7685 | PISTON SEAL ASSEMBLY | ||
| 2 | TY7271 | ROD | ||
| 3 | TY9141 | PLUG, VENT | ||
| 4 | VL7694 | LOCKNUT, NYLON - 1 3/4" | ||
| 5 | VL7699 | BEARING | ||
| 6 | TY7252 | PISTON | ||
| 7 | TZ3839 | HOUSING | ||
| 8 | SL8048 | SEAL, O-RING | ||
| 9 | WA1433 | RING, BACKUP | ||
| 10 | EC4589 | GLAND | ||
| 11 | TD8516 | CAPSCREW - 3/4" - 10NC X 3 1/4" | ||
| 12 | PB9517 | SEAL, ROD | ||
| 13 | VZ3909 | WIPER, ROD | ||
| 14 | TD7882 | CAPSCREW - 3/4" - 10NC X 1 3/4" | ||
| 15 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 16 | PB8545 | BEARING, SPERICIAL | ||
| 17 | TY9714 | RETAINER | ||
| 18 | C0312 | LOCKWASHER - 3/8" | ||
| 19 | PB9518 | BEARING | ||
| 19 | (QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
