| Item | Part No. | Part Name | Qty | Serial No. |

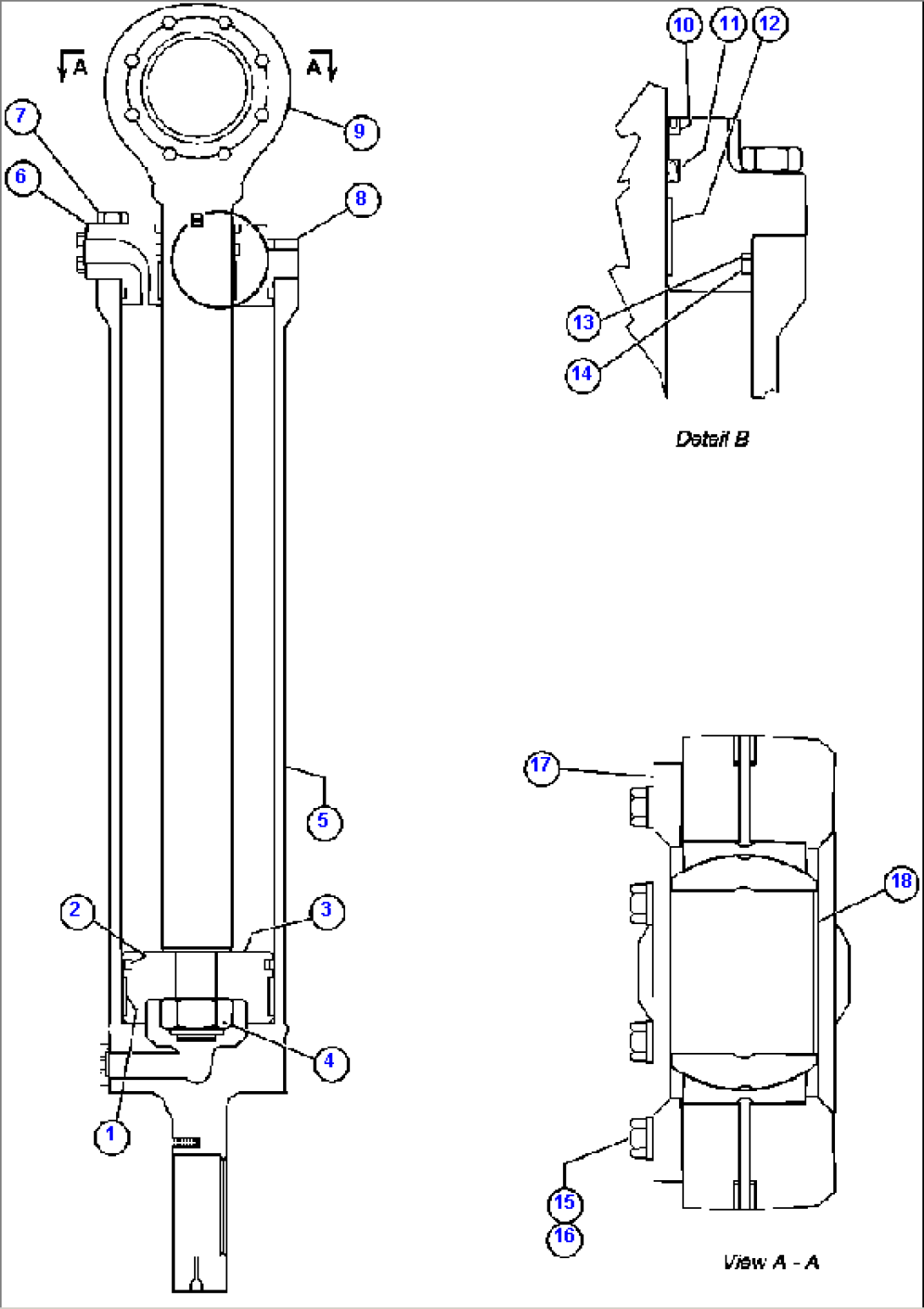

| 0 | ED4611 | STEERING CYLINDER ASSEMBLY | ||
| 1 | VZ1988 | BEARING (1) | ||
| 2 | VZ1987 | SEAL (1) | ||
| 3 | ED3847 | PISTON | ||
| 4 | VL7694 | LOCKNUT - 1 3/4" - 5NC (1) | ||
| 5 | ED4609 | HOUSING, CYLINDER | ||
| 6 | ED4602 | GLAND | ||
| 7 | TD8516 | CAPSCREW - 3/4" - 10NC X 3 1/2" - (G8) | ||
| 8 | VM4571 | CAPSCREW - 3/4" - 10NC X 2 1/2" - (G8) | ||
| 9 | ED3850 | ROD | ||
| 10 | PB8937 | WIPER, ROD (1) | ||
| 11 | PB9517 | SEAL, ROD (1) | ||
| 12 | PB9518 | BEARING, ROD (1) | ||
| 13 | WA1436 | BACKUP, RING (1) | ||
| 14 | WA0436 | O-RING (1) | ||
| 15 | C1613 | CAPSCREW - 1/2" - 13NC X 1 1/4" | ||
| 16 | C1540 | LOCKWASHER - 1/2" | ||
| 17 | ED3846 | RETAINER | ||
| 18 | PB8945 | BUSHING, BALL | ||
| NS|20 | AK3853 | NOTE: (1) INCLUDED IN AK3853 STEERING CYL REBUILD KIT. |
