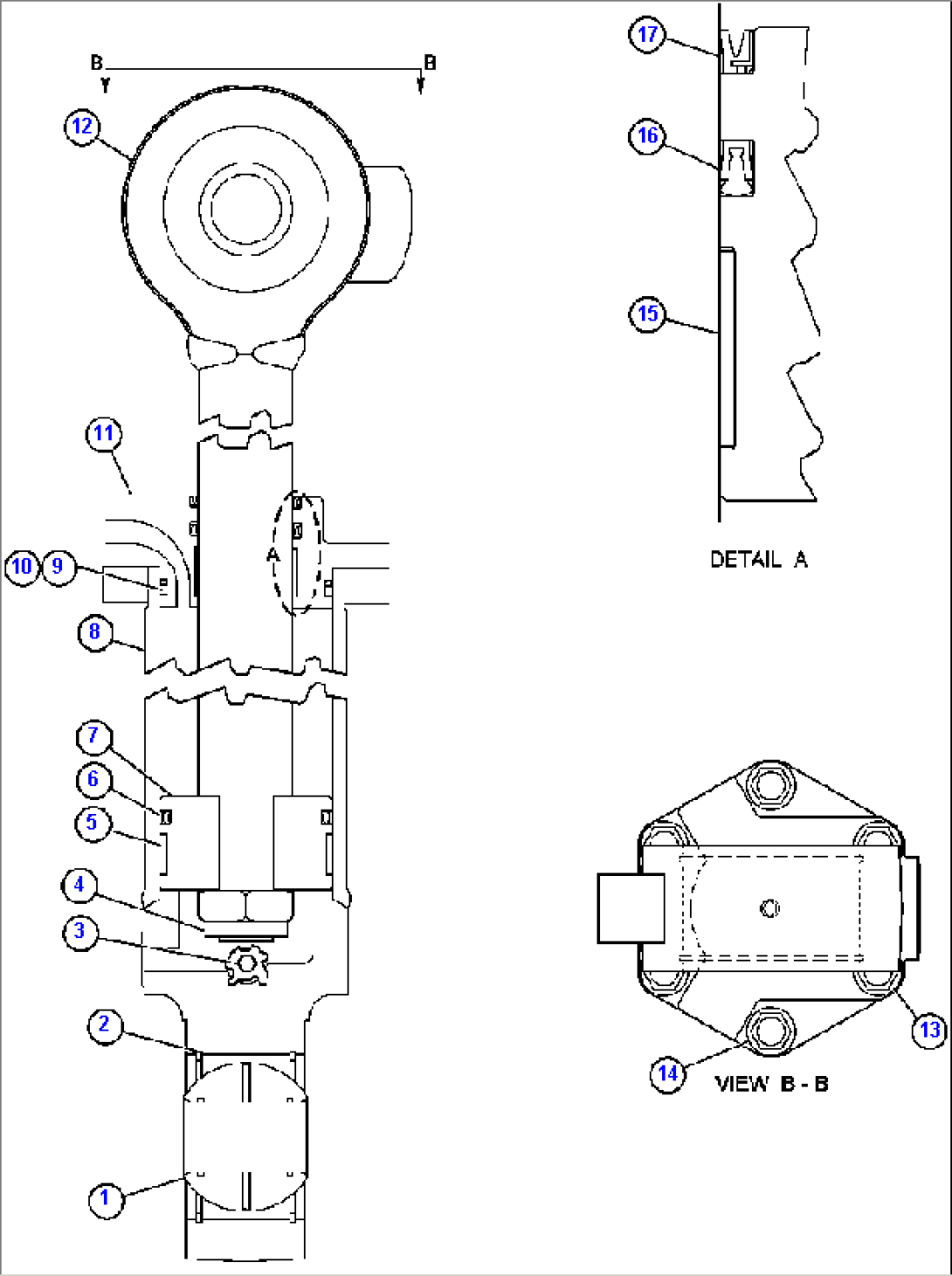

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07137-06010 | BUSHING (1) | ||
| 2 | PB9417 | RING, RETAINING (1) | ||
| 3 | TY9141 | PLUG, VENT | ||
| 4 | VL7694 | LOCKNUT - 1 3/4" - 5NC, NYLON (2) | ||
| 5 | VN5604 | BEARING (2) | ||
| 6 | VN5610 | PISTON SEAL ASSEMBLY (2) | ||
| 6 | WA2680 | RING, SEAL | ||
| 6 | WA2780 | RING, EXPANDER | ||
| 7 | DJ7330 | PISTON | ||
| 8 | EG0048 | HOUSING | ||
| 9 | WA1429 | RING, BACKUP (2) | ||
| 10 | TG0094 | O-RING (2) | ||
| 11 | EF0068 | GLAND | ||
| 12 | EG0046 | ROD | ||
| 13 | TD8516 | CAPSCREW - 3/4" - 10NC X 3 1/4" | ||
| 14 | TD7882 | CAPSCREW - 3/4" - 10NC X 1 3/4" | ||
| 15 | PB9518 | BEARING (2) | ||
| 16 | PB9517 | SEAL, ROD (2) | ||
| 17 | PB8937 | WIPER, ROD (2) | ||
| 17 | AK3665 & AK3667 STEERING PIN KITS. | |||
| NS|21 | NOTE: (1) NOT INCLUDED IN ASSEMBLY. INCLUDED IN | |||
| NS|22 | AK3887 | (2) INCLUDED IN AK3887 STEERING | ||
| NS|23 | CYLINDER REBUILD KIT. |
