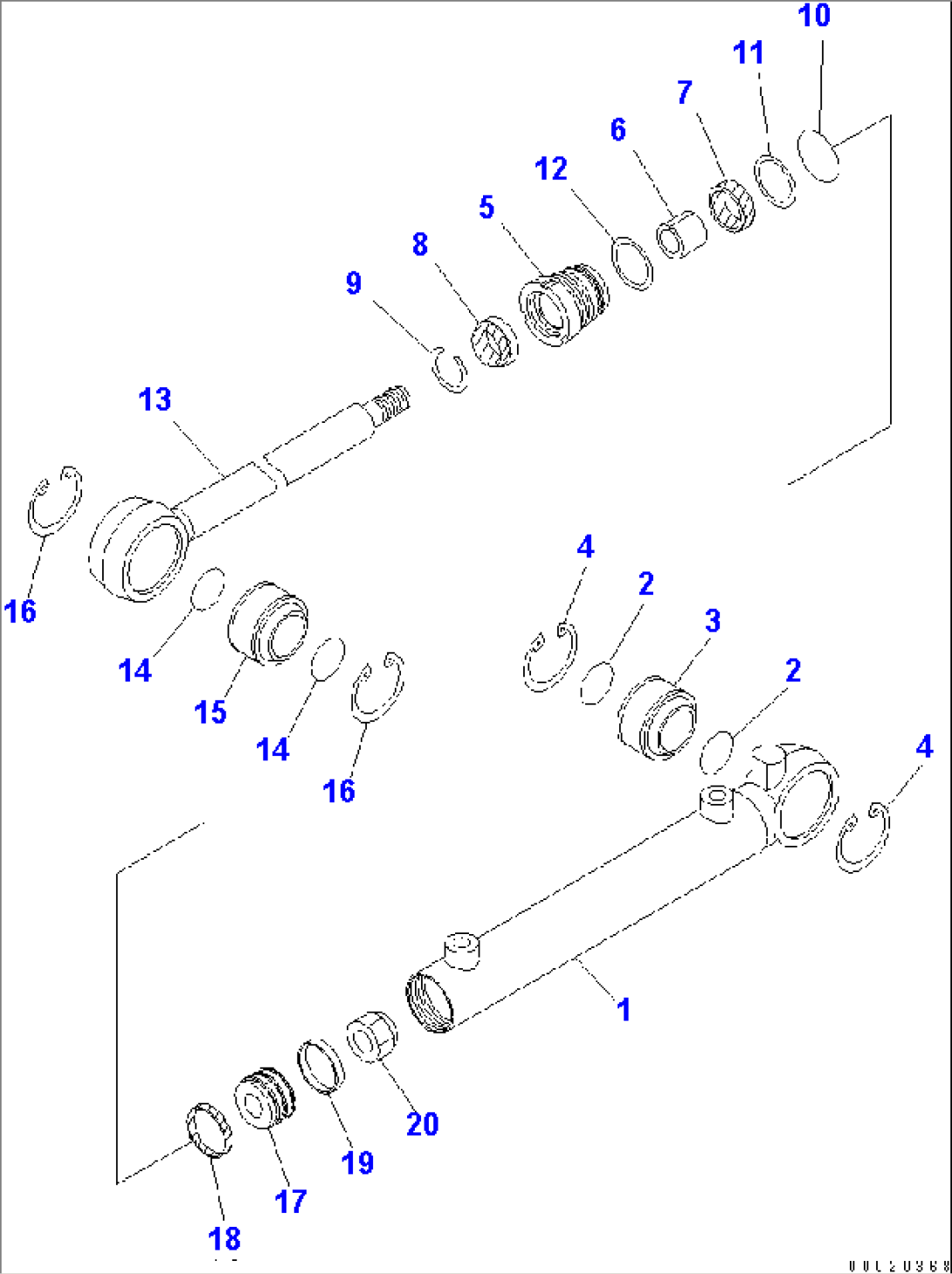

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-00-0Y170 | CYLINDER ASS'Y | 1601- | ||
| 567-63-02031 | STEERING CYLINDER | 1201-1600 | ||
| 567-63-02030 | CYLINDER ASS'Y | 1001-1200 | ||
| 1 | 567-63-13340 | CYLINDER | 1001- | |
| 2 | 07000-03035 | O-RING (K27) | 1001- | |
| 3 | 07137-03505 | BUSHING | 1001- | |
| 4 | 04065-08025 | RING,SNAP | 1001- | |
| 5 | 707-29-60710 | HEAD,CYLINDER | 1001- | |
| 6 | 07177-04025 | BUSHING | 1001- | |
| 7 | 707-51-40210 | PACKING,ROD (K27) | 1001- | |
| 8 | 707-56-40540 | SEAL,DUST (K27) | 1201- | |
| 198-63-75190 | SEAL,DUST (K27) | 1001-1200 | ||
| 9 | 07179-12052 | RING,SNAP | 1001- | |
| 10 | 07000-12055 | O-RING (K27) | 1001- | |
| 11 | 07146-02056 | RING,BACK-UP (K27) | 1001- | |
| 12 | 07000-02060 | O-RING,LOCK (K27) | 1001- | |
| 13 | 567-63-13320 | ROD,PISTON | 1001- | |
| 14 | 07000-03035 | O-RING (K27) | 1001- | |
| 15 | 07137-03505 | BUSHING | 1001- | |
| 16 | 04065-08025 | RING,SNAP | 1001- | |
| 17 | 707-36-60150 | PISTON | 1001- | |
| 18 | 707-44-60180 | RING,PISTON (K27) | 1001- | |
| 19 | 707-39-60190 | RING,WEAR (K27) | 1001- | |
| 20 | 07165-12729 | NUT,NYLON | 1001- |
