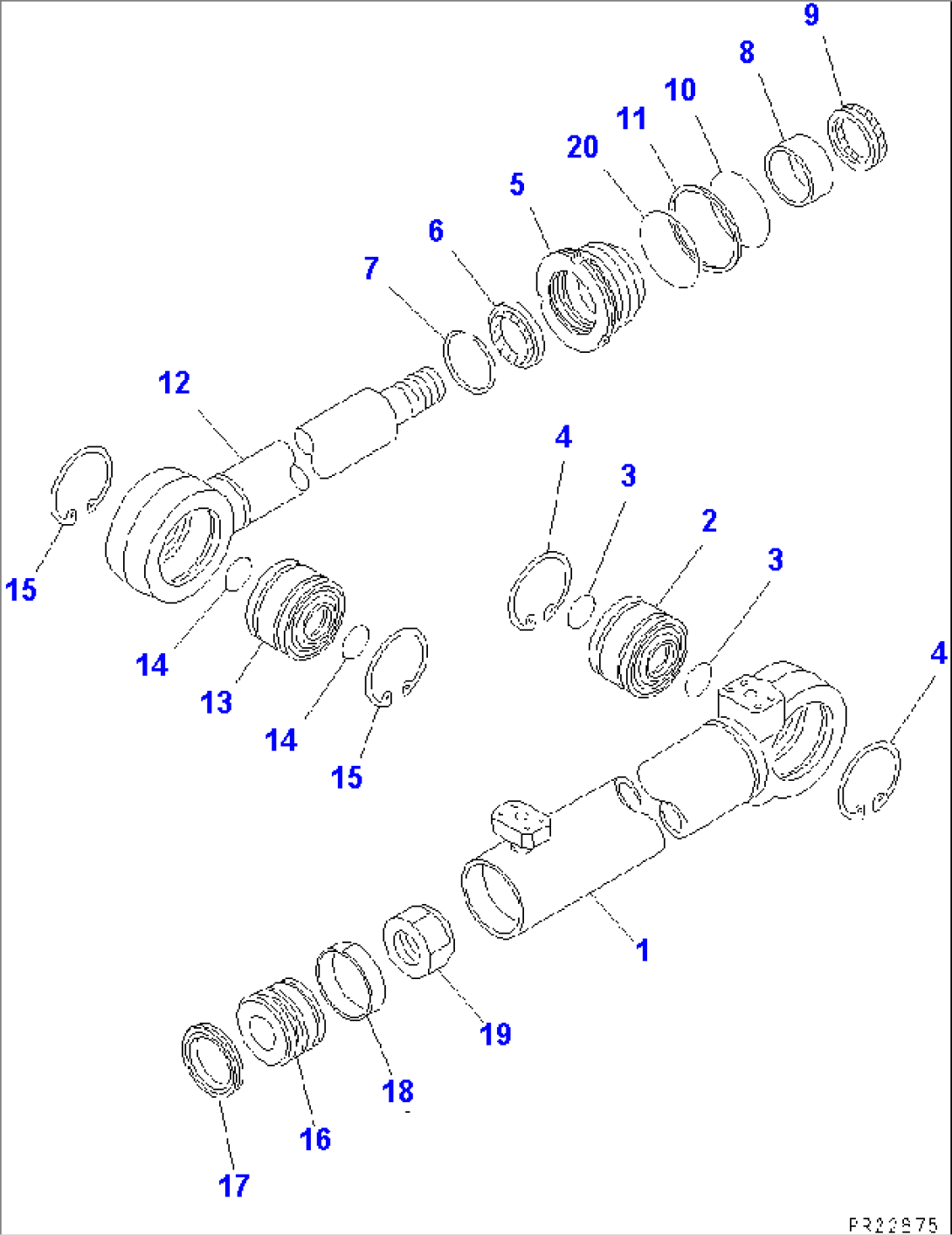

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-63-80010 | CYLINDER ASS'Y,(FINAL COATING) | 6001- | ||
| 566-63-61100 | CYLINDER ASS'Y | 5001-6000 | ||
| 1 | 566-63-61140 | CYLINDER | 5001- | |
| 2 | 07137-04006 | BUSHING | 5001- | |
| 3 | 07000-03040 | O-RING (K31) | 5001- | |
| 4 | 04065-09030 | RING,SNAP | 5001- | |
| 5 | 707-29-75750 | HEAD,CYLINDER | 5001- | |
| 6 | 707-56-50540 | SEAL,DUST (K31) | 5001- | |
| 7 | 07179-12062 | RING,SNAP | 5001- | |
| 8 | 07177-05030 | BUSHING | 5001- | |
| 9 | 707-51-50211 | PACKING,ROD (K31) | 5001- | |
| 10 | 07000-12070 | O-RING (K31) | 5001- | |
| 11 | 707-35-52760 | RING,BACK-UP (K31) | 5001- | |
| 12 | 566-63-61120 | ROD,PISTON | 5001- | |
| 13 | 07137-04006 | BUSHING | 5001- | |
| 14 | 07000-03040 | O-RING (K31) | 5001- | |
| 15 | 04065-09030 | RING,SNAP | 5001- | |
| 16 | 707-36-75470 | PISTON | 5001- | |
| 17 | 707-44-75180 | RING,PISTON (K31) | 5001- | |
| 18 | 707-39-75190 | RING,WEAR (K31) | 5001- | |
| 19 | 07165-13336 | NUT,NYLON | 5001- | |
| 20 | 07000-02075 | O-RING (K31) | 5001- |
