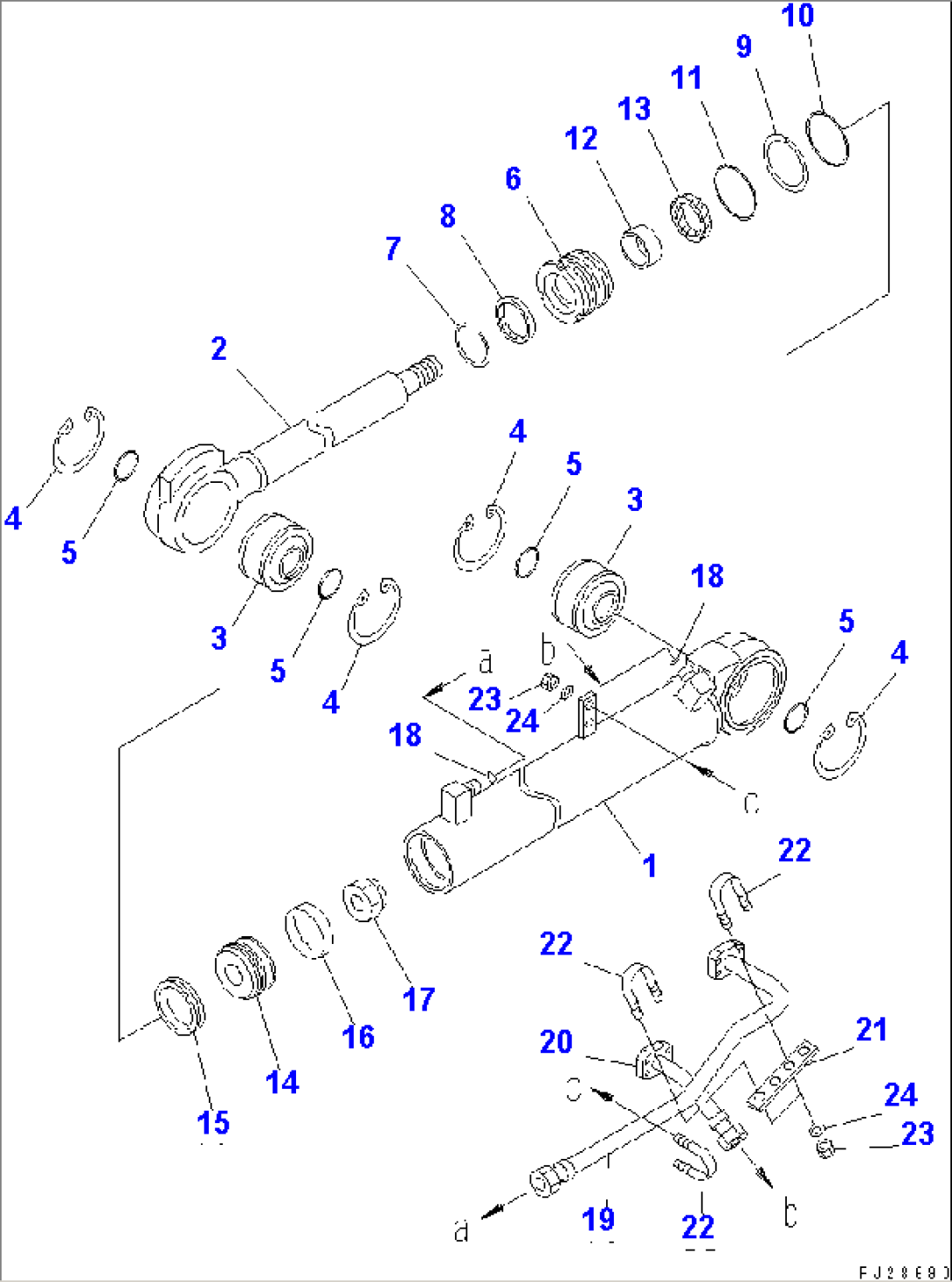

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-00-XZ520) | CYLINDER ASS'Y,L.H. (FINAL COATING) | 7001- | |
| G1 | (\8\707-00-XC870) | CYLINDER ASS'Y,L.H. | 7001- | |
| G1 | (\8\707-00-XZ530) | CYLINDER ASS'Y,R.H. (FINAL COATING) | 7001- | |
| G1 | (\8\707-00-XC880) | CYLINDER ASS'Y,R.H. | 7001- | |
| ==================== | ||||
| 707-00-0C870 | CYLINDER ASS'Y,L.H. | 7001- | ||
| 707-00-0C880 | CYLINDER ASS'Y,R.H. | 7001- | ||
| 1 | 707-11-85310 | CYLINDER,L.H. | 7001- | |
| 1 | 707-11-85320 | CYLINDER,R.H. | 7001- | |
| 2 | 569-63-61120 | ROD,PISTON | 7001- | |
| 3 | 07137-04507 | BUSHING | 7001- | |
| 4 | 04065-01030 | RING,SNAP | 7001- | |
| 5 | 07000-03045 | O-RING (KIT) | 7001- | |
| 6 | 707-29-85740 | HEAD,CYLINDER | 7001- | |
| 7 | 07179-12069 | RING,SNAP | 7001- | |
| 8 | 707-56-55540 | SEAL,DUST (KIT) | 7001- | |
| 9 | 707-35-52770 | RING,BACK-UP (KIT) | 7001- | |
| 10 | 07000-12080 | O-RING (KIT) | 7001- | |
| 11 | 07000-12085 | O-RING (KIT) | 7001- | |
| 12 | 07177-05530 | BUSHING | 7001- | |
| 13 | 707-51-55211 | PACKING,ROD (KIT) | 7001- | |
| 14 | 707-36-85170 | PISTON | 7001- | |
| 15 | 707-44-85180 | RING,PISTON (KIT) | 7001- | |
| 16 | 707-39-85120 | RING,WEAR (KIT) | 7001- | |
| 17 | 07165-13336 | NUT | 7001- | |
| 18 | 02896-11015 | O-RING (KIT) | 7001- | |
| 19 | 707-86-47140 | TUBE,L.H. | 7001- | |
| 19 | 707-86-47150 | TUBE,R.H. | 7001- | |
| 20 | 707-86-47160 | TUBE | 7001- | |
| 21 | 707-88-02340 | PLATE | 7001- | |
| 22 | 07283-22236 | CLIP | 7001- | |
| 23 | 01599-01011 | NUT | 7001- | |
| 24 | 01643-31032 | WASHER | 7001- | |
| ==================== | ||||
| K | 707-98-26901 | SERVICE KIT | 7001- |
