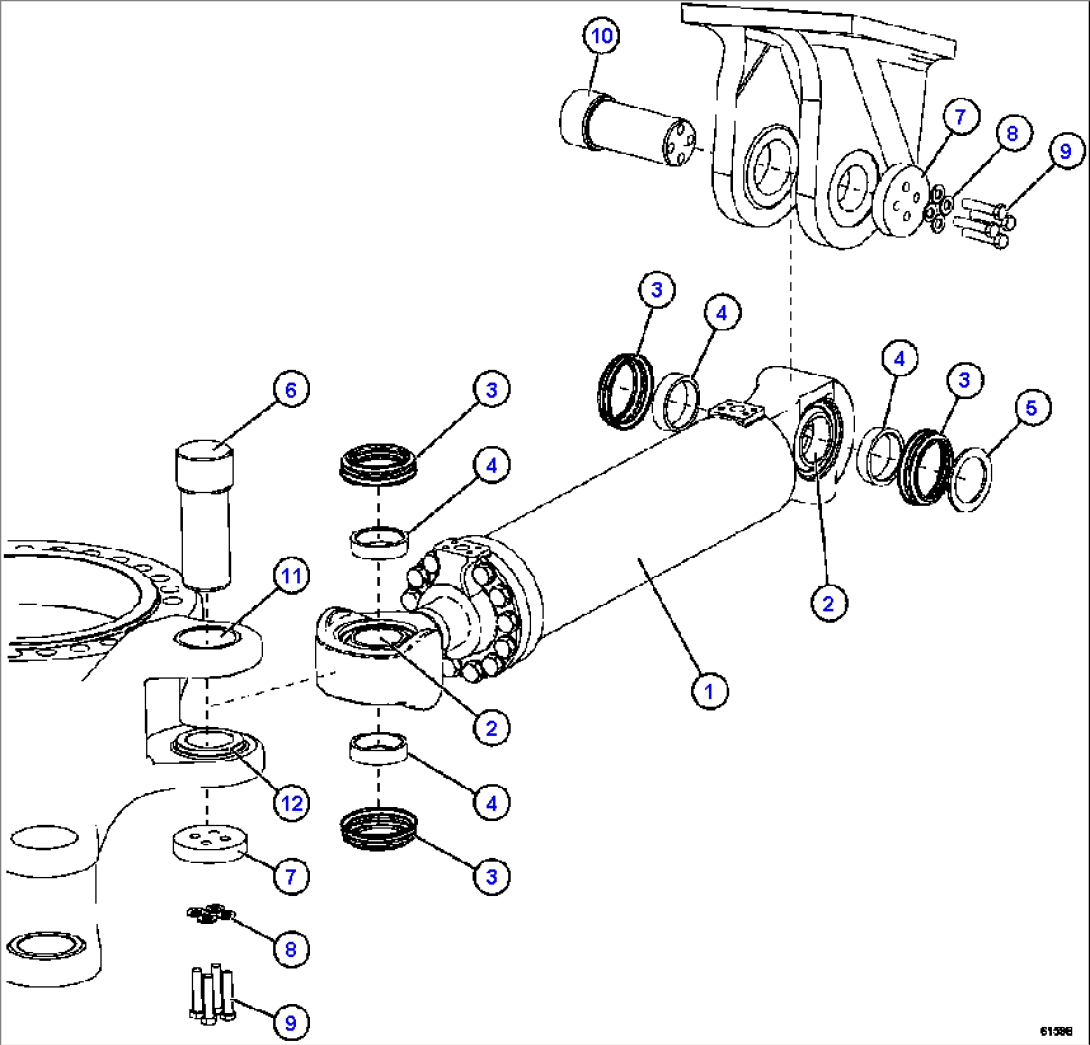

| Item | Part No. | Part Name | Qty | Serial No. |
| 0 | EM0227 | STEERING CYLINDER W/ BUSHINGS | ||
| 1 | EM0228 | STEERING CYLINDER ASSEMBLY (SEE INDEX) | ||
| 2 | PC1289 | BEARING, SPHERICAL (1) | ||
| 3 | EL0926 | SEAL, BEARING (W/ SNAP RING) (1) | ||
| 4 | EK1700 | SPACER (1) | ||
| 5 | EK5878 | WASHER | ||
| 6 | EK1699 | PIN (1) | ||
| 7 | EK1995 | RETAINER (1) | ||
| 8 | WA0361 | FLAT WASHER - 5/8" (1) | ||
| 9 | VN9104 | CAPSCREW - 5/8" - 11NC X 3" (1) | ||
| 10 | EK1998 | PIN | ||
| 11 | EK1290 | SLEEVE | ||
| 12 | EK1289 | SLEEVE | ||
| NS|14 | AK5211 | NOTE: (1) INCLUDED IN AK5211 TIE ROD AND STEERING PIN KIT. | ||
| NS|15 | (QUANTITIES SHOWN ARE FOR ONE CYLINDER.) |
