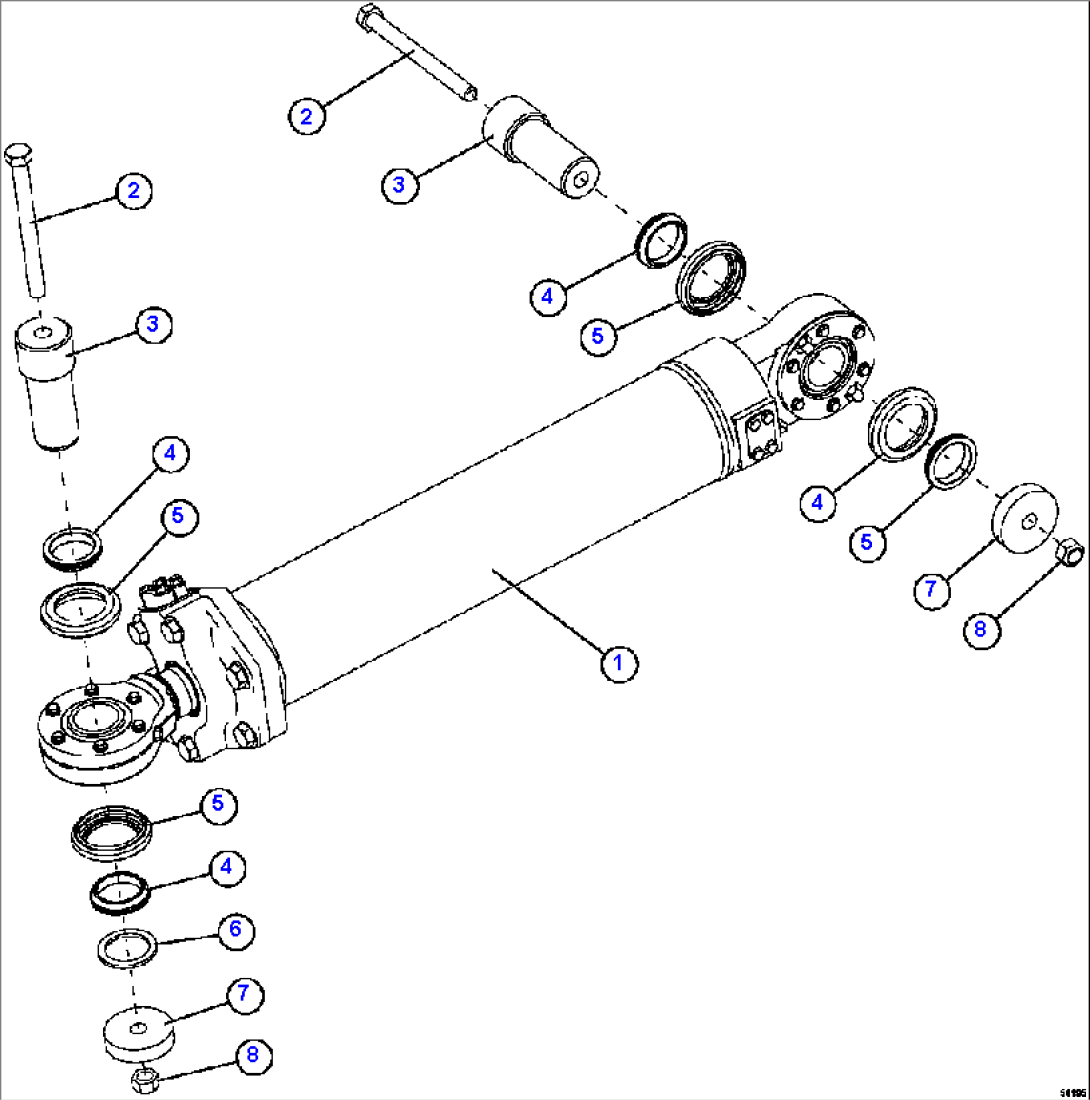

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XB4662 | STEERING CYLINDER ASSEMBLY (SEE FIG 56196) | ||
| 2 | MM0735 | CAPSCREW - M20 X 2.50 X 220 (1) | ||
| 3 | EH0875 | PIN (1) | ||
| 4 | EK3378 | SPACER (1) | ||
| 5 | EK3379 | SEAL, BEARING (1) | ||
| 6 | EF7599 | WASHER (1) | ||
| 7 | EB4430 | RETAINER (1) | ||
| 8 | MM0697 | LOCKNUT - M20 X 2.50 (1) | ||
| NS|9 | NOTE: NS = NOT SHOWN | |||
| NS|10 | EJ8750 | SLEEVE, LOWER (1) | ||
| NS|11 | EL3568 | SLEEVE, UPPER (1) | ||
| NS|12 | 58D-MP-AK010 | NOTE: (1) INCLUDED IN 58D-MP-AK010 STEERING CYLINDER | ||
| NS|13 | AND TIE ROD PIN KIT. | |||
| NS|14 | (QUANTITIES ARE FOR ONE CYLINDER ONLY.) |
