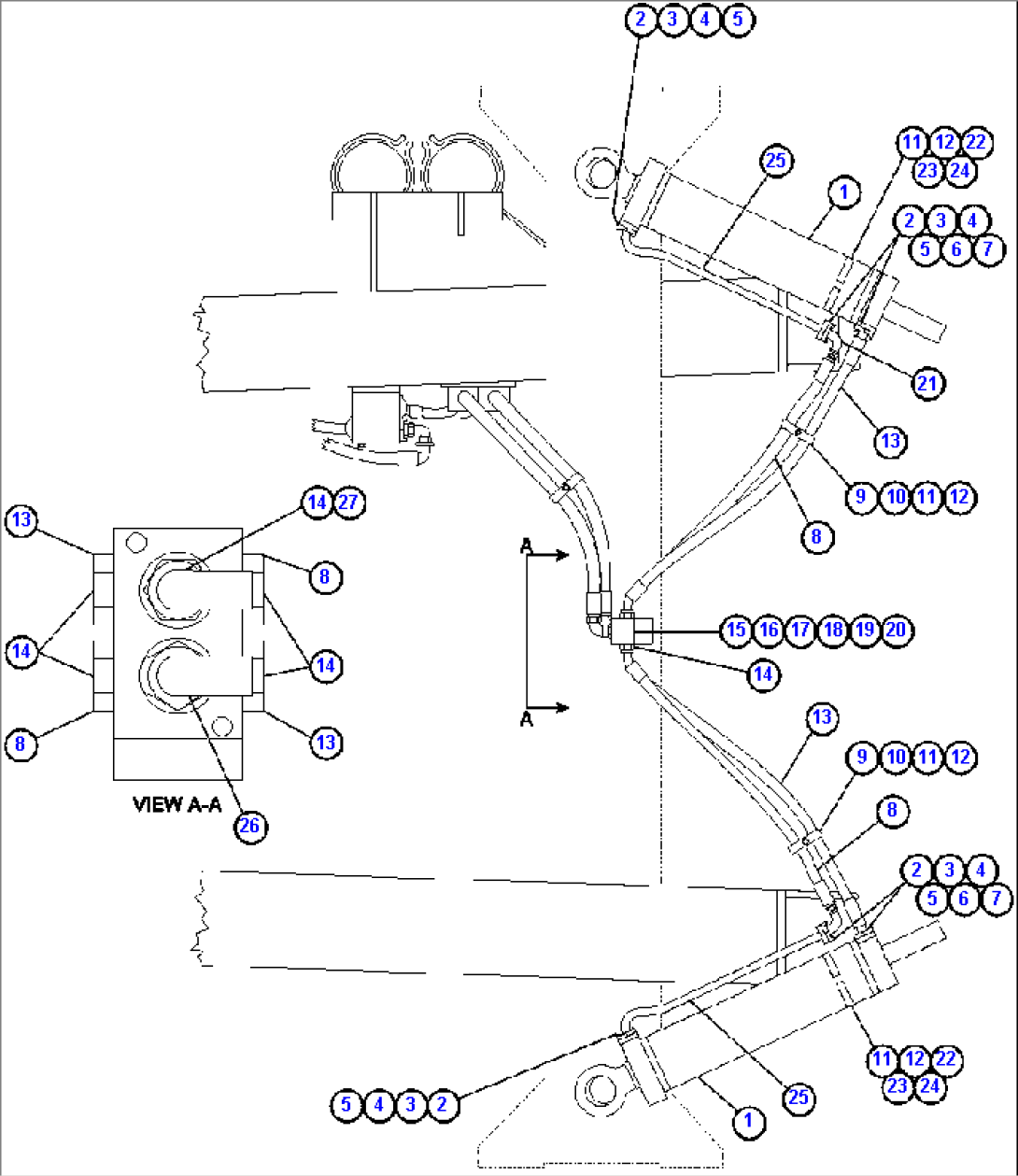

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EH5930 | STEERING CYLINDER ASSEMBLY (SEE FIG 41577) | ||
| 2 | TF8077 | FLANGE, SPLIT | ||
| 3 | VG9097 | SEAL, O-RING | ||
| 4 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 5 | C0312 | LOCKWASHER - 3/8" | ||
| 6 | TG2341 | CAPSCREW - 3/8" - 16NC X 2 1/4" | ||
| 7 | C1521 | NUT - 3/8" - 16NC | ||
| 8 | HA2185 | HOSE | ||
| 9 | TC6058 | CLAMP | ||
| 10 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 11 | MM0704 | FLAT WASHER - M10 | ||
| 12 | MM0693 | LOCKNUT - M10 X 1.50 | ||
| 13 | HA6241 | HOSE | ||
| 14 | WB0599 | ADAPTOR, STRAIGHT | ||
| 15 | TZ5901 | MANIFOLD | ||
| 16 | TF8481 | CAPSCREW - 3/8" - 16NC X 4" | ||
| 17 | TC1231 | LOCKWASHER - 3/8" | ||
| 18 | TC1233 | NUT - 3/8" - 16NC | ||
| 19 | PB6528 | COUPLING, DIAGNOSTIC | ||
| 20 | PB6041 | CAP, DUST | ||
| 21 | WA4855 | FITTING, ELBOW - 90 DEG | ||
| 22 | TY8361 | CLAMP | ||
| 23 | TY8362 | CLAMP | ||
| 24 | MM0067 | CAPSCREW - M10 X 1.50 X 50 | ||
| 25 | EC1426 | TUBE | ||
| 26 | WB0522 | FITTING, ELBOW - 90 DEG | ||
| 27 | WB0378 | FITTING, ELBOW - 90 DEG |
