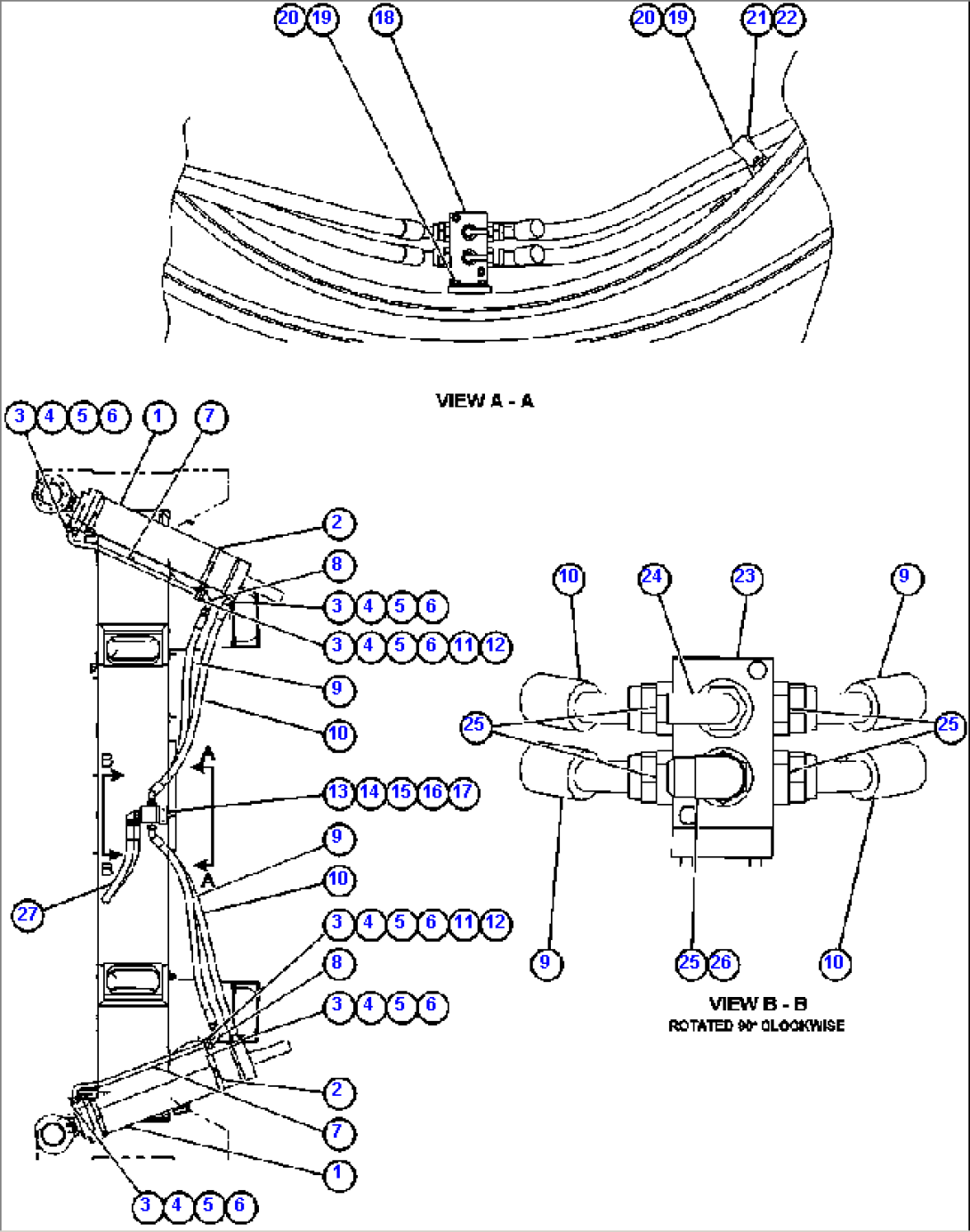

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EM0241 | STEERING CYLINDER ASSEMBLY (SEE INDEX) | ||
| 2 | PB8899 | CLAMP ASSEMBLY | ||
| 3 | TF8077 | CLAMP, SPLIT | ||
| 4 | VG9097 | O-RING | ||
| 5 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 6 | C0312 | LOCKWASHER - 3/8" | ||
| 7 | EC1426 | TUBE | ||
| 8 | WA4855 | FITTING, ELBOW - 90 DEG | ||
| 9 | HA2185 | HOSE | ||
| 10 | HA6241 | HOSE | ||
| 11 | TG2341 | CAPSCREW - 3/8" - 16NC X 2 1/4" | ||
| 12 | C1521 | NUT - 3/8" - 16NC | ||
| 13 | TF8481 | CAPSCREW - 3/8" - 16NC X 4" | ||
| 14 | TC1231 | LOCKWASHER - 3/8" | ||
| 15 | TC1233 | NUT - 3/8" - 16NC | ||
| 16 | PB6528 | COUPLING, DIAGNOSTIC | ||
| 17 | PB6041 | CAP, DUST | ||
| 18 | EJ5570 | BRACKET | ||
| 19 | H8524 | CAPSCREW - 3/8" - 16NC X 5/8" | ||
| 20 | DF3042 | FLAT WASHER - 3/8" | ||
| 21 | EK2226 | CLAMP ASSEMBLY | ||
| 22 | EJ5584 | BRACKET, CLAMP | ||
| 23 | TZ5901 | MANIFOLD | ||
| 24 | WB0522 | FITTING, ELBOW - 90 DEG | ||
| 25 | WB0599 | FITTING, STRAIGHT | ||
| 26 | WB0378 | FITTING, ELBOW - 90 DEG | ||
| 27 | HA7996 | HOSE |
