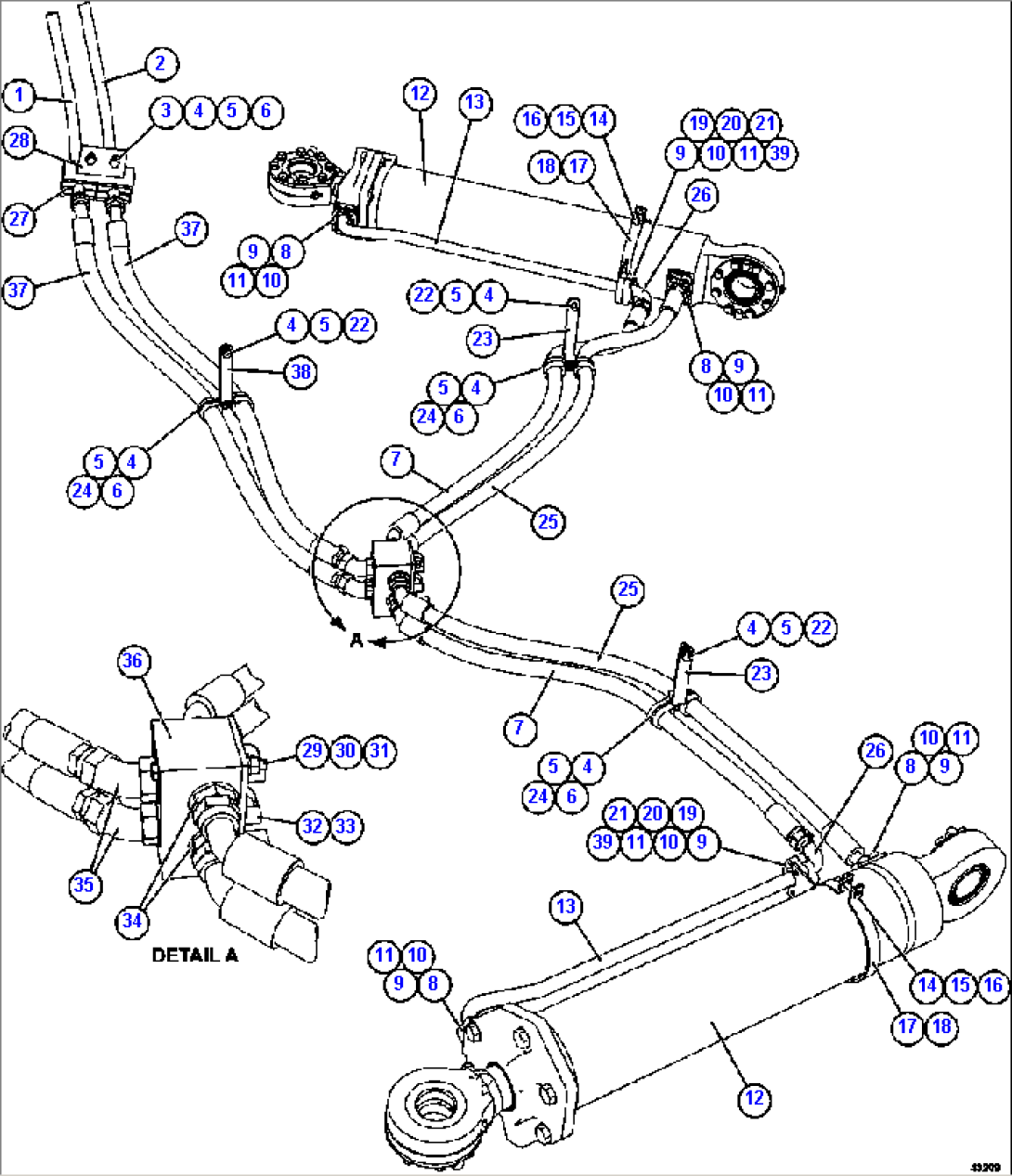

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EM8686 | TUBE | ||
| 2 | EM8685 | TUBE | ||
| 3 | MM0606 | CAPSCREW - M10 X 1.50 X 30 | ||
| 4 | MM0461 | FLAT WASHER - M10 | ||
| 5 | MM0471 | LOCKWASHER - M10 | ||
| 6 | MM0178 | NUT - M10 X 1.50 | ||
| 7 | HA2185 | HOSE | ||
| 8 | TD0791 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 9 | TC1231 | LOCKWASHER - 3/8" | ||
| 10 | TF8077 | CLAMP, SPLIT FLANGE | ||
| 11 | VG9097 | O-RING | ||
| 12 | EL7952 | STEERING CYLINDER (SEE FIG 41812) | ||
| 13 | EC1426 | TUBE | ||
| 14 | MM0610 | CAPSCREW - M10 X 1.50 X 50 | ||
| 15 | MM0713 | FLAT WASHER - M10 | ||
| 16 | MM0693 | LOCKNUT - M10 X 1.50 | ||
| 17 | TY8361 | CLAMP | ||
| 18 | TY8362 | CLAMP (W/ BRACKET) | ||
| 19 | VC8762 | CAPSCREW - 3/8" - 16NC X 1 1/2" | ||
| 20 | TG2341 | CAPSCREW - 3/8" - 16NC X 2 1/4" | ||
| 21 | TC1233 | NUT - 3/8" - 16NC | ||
| 22 | MM0047 | CAPSCREW - M10 X 1.50 X 30 | ||
| 23 | EM9554 | BRACKET | ||
| 24 | WB1305 | CLAMP, CUSHIONED - 1 1/2" | ||
| 25 | HA6241 | HOSE | ||
| 26 | WA4855 | ELBOW | ||
| 27 | WA4708 | CLAMP, HYDRA-ZORB - 1" | ||
| 28 | EM9561 | BRACKET | ||
| 29 | TF8481 | CAPSCREW - 3/8" - 16NC X 4" | ||
| 30 | TC1231 | LOCKWASHER - 3/8" | ||
| 31 | TC1233 | NUT - 3/8" - 16NC | ||
| 32 | PB6041 | CAP, DUST | ||
| 33 | PB6528 | COUPLING, DIAGNOSTIC | ||
| 34 | WB0599 | FITTING, STRAIGHT | ||
| 35 | WB0547 | FITTING, 45 DEGREE ELBOW | ||
| 36 | TZ5901 | MANIFOLD | ||
| 37 | HA3562 | HOSE | ||
| 38 | XB6678 | BRACKET | ||
| 39 | TR4436 | FLAT WASHER - 3/8" |
