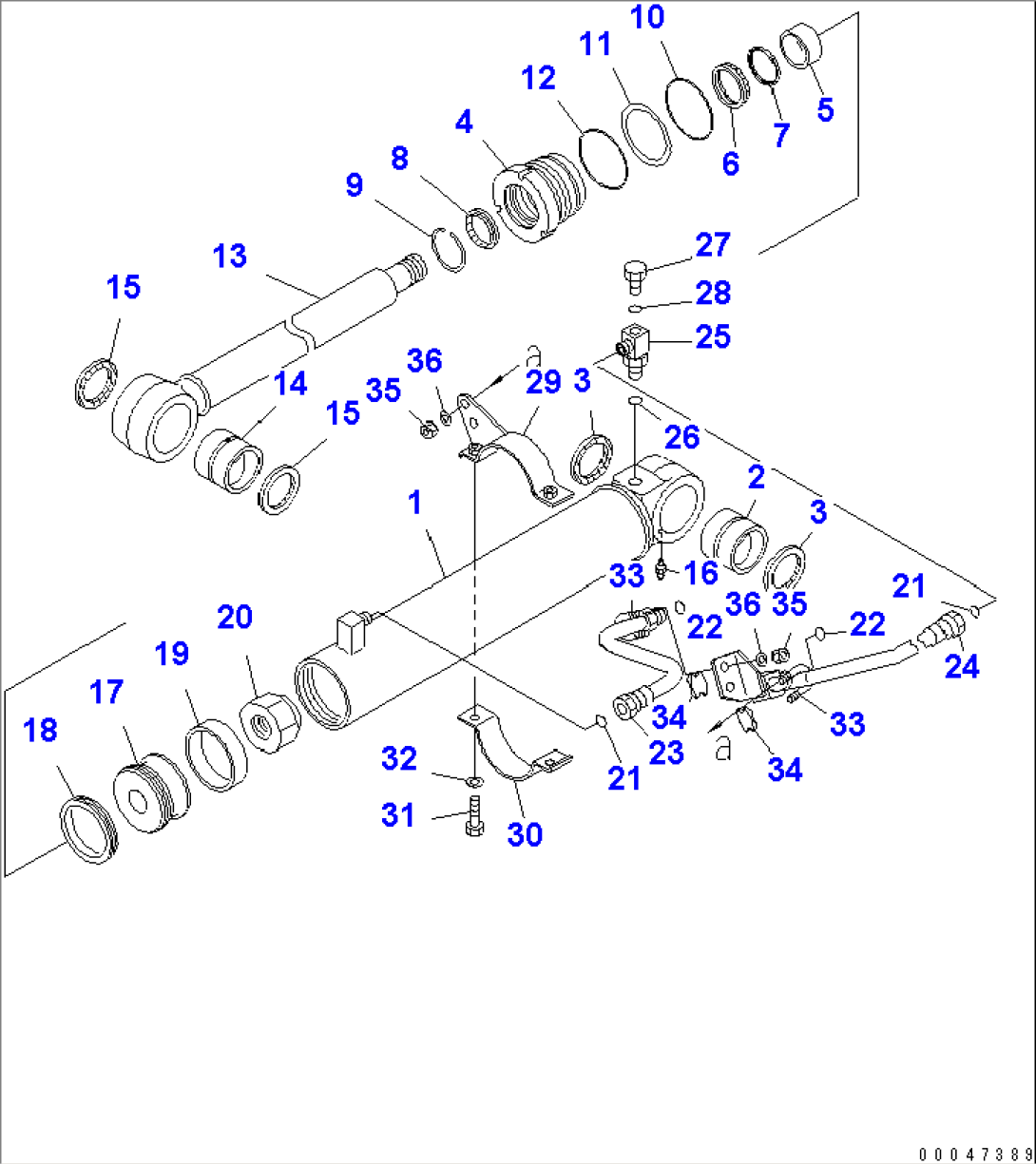

| Item | Part No. | Part Name | Qty | Serial No. |
| G-2 | (\8\707-00-XX451) | CYLINDER GROUP,R.H. (FINAL COATING) | 55294- | |
| G-2 | (\8\707-00-XX450) | CYLINDER GROUP,R.H. (FINAL COATING) | 55001-55293 | |
| ==================== | ||||
| 707-00-0G641 | CYLINDER ASS'Y | 55001- | ||
| (\2\707-00-0G640) | CYLINDER ASS'Y | (55001-55293) | ||
| 1 | 707-11-10H20 | CYLINDER | 55294- | |
| 1 | 707-11-10G80 | CYLINDER | 55001-55293 | |
| 2 | 707-76-65160 | BUSHING | 55001- | |
| 3 | 417-09-11120 | SEAL,DUST (KIT) | 55001- | |
| 4 | 707-29-10801 | HEAD,CYLINDER | 55001- | |
| 5 | 707-52-90350 | BUSHING | 55001- | |
| 6 | 707-51-60030 | PACKING,ROD (KIT) | 55001- | |
| 7 | 707-51-60650 | RING,BUFFER (KIT) | 55001- | |
| 8 | 141-63-93270 | SEAL,DUST (KIT) | 55001- | |
| 9 | 07179-12074 | RING,SNAP | 55001- | |
| 10 | 07000-12095 | O-RING (KIT) | 55001- | |
| 11 | 07001-02095 | RING,BACK-UP (KIT) | 55001- | |
| 12 | 07000-12100 | O-RING (KIT) | 55001- | |
| 13 | 721-58-60680 | ROD,PISTON | 55001- | |
| 14 | 707-76-65120 | BUSHING | 55001- | |
| 15 | 417-09-11120 | SEAL,DUST (KIT) | 55001- | |
| 16 | 07020-00000 | FITTING,GREASE | 55001- | |
| 17 | 707-36-10470 | PISTON | 55001- | |
| 18 | 707-44-10150 | RING,PISTON (KIT) | 55001- | |
| 19 | 07156-01012 | RING,WEAR (KIT) | 55001- | |
| 20 | 707-67-39010 | NUT,NYLON | 55001- | |
| 21 | 02896-11015 | O-RING (KIT) | 55001- | |
| 22 | 02896-11015 | O-RING (KIT) | 55001- | |
| 23 | 707-86-55520 | TUBE | 55001- | |
| 24 | 707-86-55530 | TUBE | 55001- | |
| 25 | 02782-50522 | ELBOW | 55001- | |
| 26 | 07002-12434 | O-RING (KIT) | 55001- | |
| 27 | 07040-11007 | PLUG | 55001- | |
| 28 | 07002-11023 | O-RING (KIT) | 55001- | |
| 29 | 707-88-28290 | BRACKET | 55001- | |
| 30 | 707-88-95610 | BAND | 55001- | |
| 31 | 07372-21035 | BOLT | 55001- | |
| 32 | 01643-51032 | WASHER | 55001- | |
| 33 | 07283-32244 | CLIP | 55001- | |
| 34 | 07283-52232 | SEAT | 55001- | |
| 35 | 01597-01009 | NUT | 55001- | |
| 36 | 01643-31032 | WASHER | 55001- | |
| SERVICE KIT | ||||
| K | 707-99-35320 | SERVICE KIT | 55001- |
