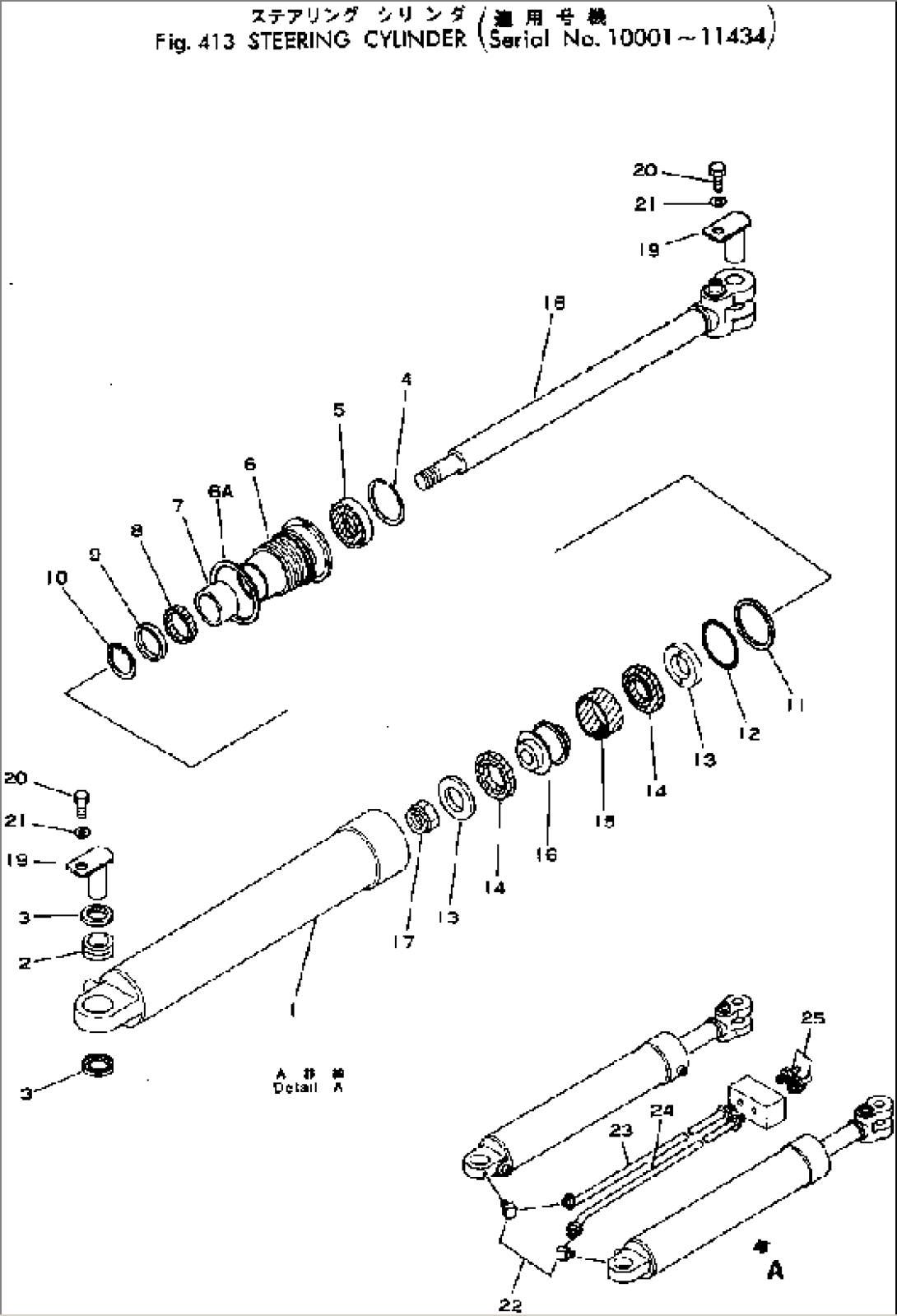

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-10-52104 | CYLINDER ASS'Y | .-11434 | ||
| \0\707-10-52103 | CYLINDER ASS'Y | 10001-. | ||
| 1 | 707-10-52143 | CYLINDER | .-11434 | |
| \0\707-10-52141 | CYLINDER | 10001-. | ||
| 2 | 707-10-52280 | BUSHING | 10001-@ | |
| 3 | 707-10-52270 | SEAL,DUST | 10001-@ | |
| 4 | 07179-00059 | RING,SNAP | 10001-@ | |
| 5 | 07016-00407 | SEAL,DUST | 10001-@ | |
| 6 | 707-29-80011 | HEAD,CYLINDER | 10001-@ | |
| 6A | 707-45-80010 | LOCK | 10001-@ | |
| 7 | 07177-04025 | BUSHING | 10001-@ | |
| 8 | 707-51-40020 | PACKING,ROD | .-@ | |
| \0\236-63-11173 | PACKING,ROD | 10001-. | ||
| 9 | 707-57-40011 | RETAINER | 10001-@ | |
| 10 | 04065-06020 | RING,SNAP | 10001-@ | |
| 11 | 07001-02085 | RING,BACK-UP | 10001-@ | |
| 12 | 07000-12085 | O-RING | 10001-@ | |
| 13 | 111-63-99330 | RETAINER | 10001-@ | |
| 14 | 707-42-80012 | PACKING,PISTON | 10001-@ | |
| (\2\20R-63-56280) | U-PACKING,PISTON | (10001-.) | ||
| 15 | 07155-00820 | RING,WEAR | 10001-@ | |
| 16 | 707-10-52160 | PISTON | 10001-@ | |
| 17 | 07165-13033 | NUT,NYLON | 10001-@ | |
| 18 | 707-10-52120 | ROD,PISTON | 10001-@ | |
| 19 | 385-11048241 | SHAFT | 10001-@ | |
| 20 | 382-024859-1 | BOLT | 10001-@ | |
| 21 | 381-932278-1 | WASHER | 10001-@ | |
| 22 | 380-110902-1 | ELBOW | 10001-@ | |
| 23 | 381-936836-1 | HOSE | 10001-@ | |
| 24 | 380-204978-1 | HOSE | 10001-@ | |
| 25 | 384-0126152 | FITTING | 10313-@ | |
| \0\384-0109461 | FITTING | 10001-10312 |
