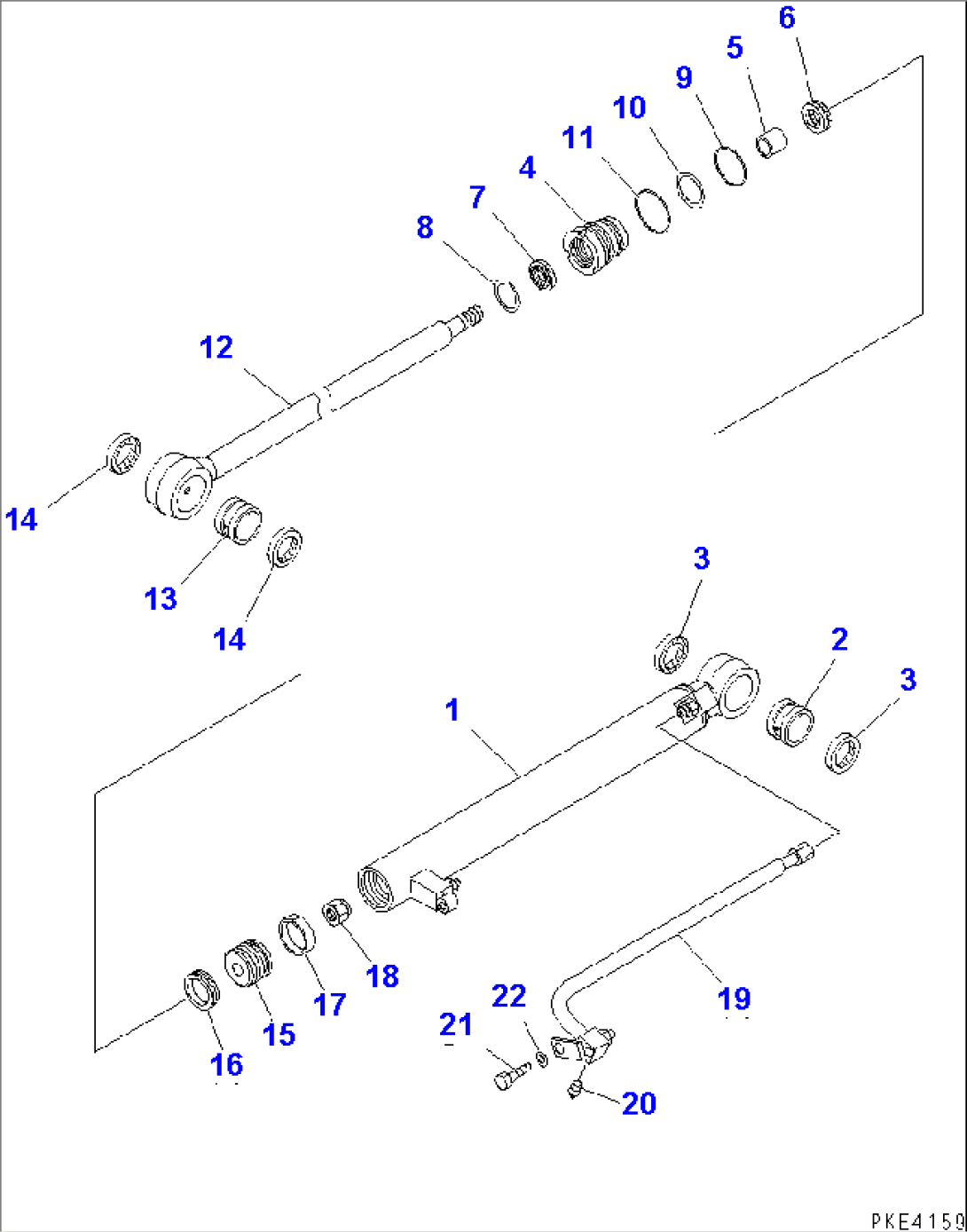

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-00-X8611) | CYLINDER GROUP,L.H. | 10001-12000 | |
| G1 | (\8\707-00-X8621) | CYLINDER GROUP,R.H. | 10001-12000 | |
| ==================== | ||||
| 707-00-03301 | CYLINDER ASS'Y,L.H. | 10001-12000 | ||
| 707-00-03401 | CYLINDER ASS'Y,R.H. | 10001-12000 | ||
| 1 | 707-11-40311 | CYLINDER,L.H. | 10001-12000 | |
| 1 | 707-11-40321 | CYLINDER,R.H. | 10001-12000 | |
| 2 | 07144-10302 | BUSHING | 10001-@ | |
| 3 | 07145-00030 | SEAL,DUST (KIT) | 10001-@ | |
| 4 | 707-29-40080 | HEAD,CYLINDER | 10001-12000 | |
| 5 | 707-52-10250 | BUSHING | 10001-@ | |
| 6 | 707-51-25030 | PACKING,ROD (KIT) | 10001-@ | |
| 7 | 707-56-25510 | SEAL,DUST | 10001-@ | |
| 8 | 07179-12037 | RING,SNAP | 10001-@ | |
| 9 | 07000-13035 | O-RING (KIT) | 10001-@ | |
| 10 | 707-35-52350 | RING,BACK-UP (KIT) | 10001-@ | |
| 11 | 707-34-45010 | O-RING (KIT) | 10001-@ | |
| 12 | 707-58-25600 | ROD,PISTON | 10001-@ | |
| 13 | 07144-10302 | BUSHING | 10001-@ | |
| 14 | 07145-00030 | SEAL,DUST (KIT) | 10001-@ | |
| 15 | 707-36-40030 | PISTON | 10001-@ | |
| 16 | 707-44-40070 | RING,PISTON (KIT) | 10001-@ | |
| 17 | 07155-00410 | RING,WEAR (KIT) | 10001-@ | |
| 18 | 07165-11618 | NUT,NYLON | 10001-12000 | |
| 19 | 707-86-36071 | TUBE,L.H. | 10001-12000 | |
| 19 | 707-86-36081 | TUBE,R.H. | 10001-12000 | |
| 20 | 07042-20108 | PLUG | 10001-12000 | |
| 21 | 01010-80816 | BOLT | 10001-@ | |
| 22 | 01643-30823 | WASHER | 10001-@ | |
| ==================== | ||||
| SERVICE KIT | ||||
| K | 707-99-03270 | SERVICE KIT | 10001-12000 |
