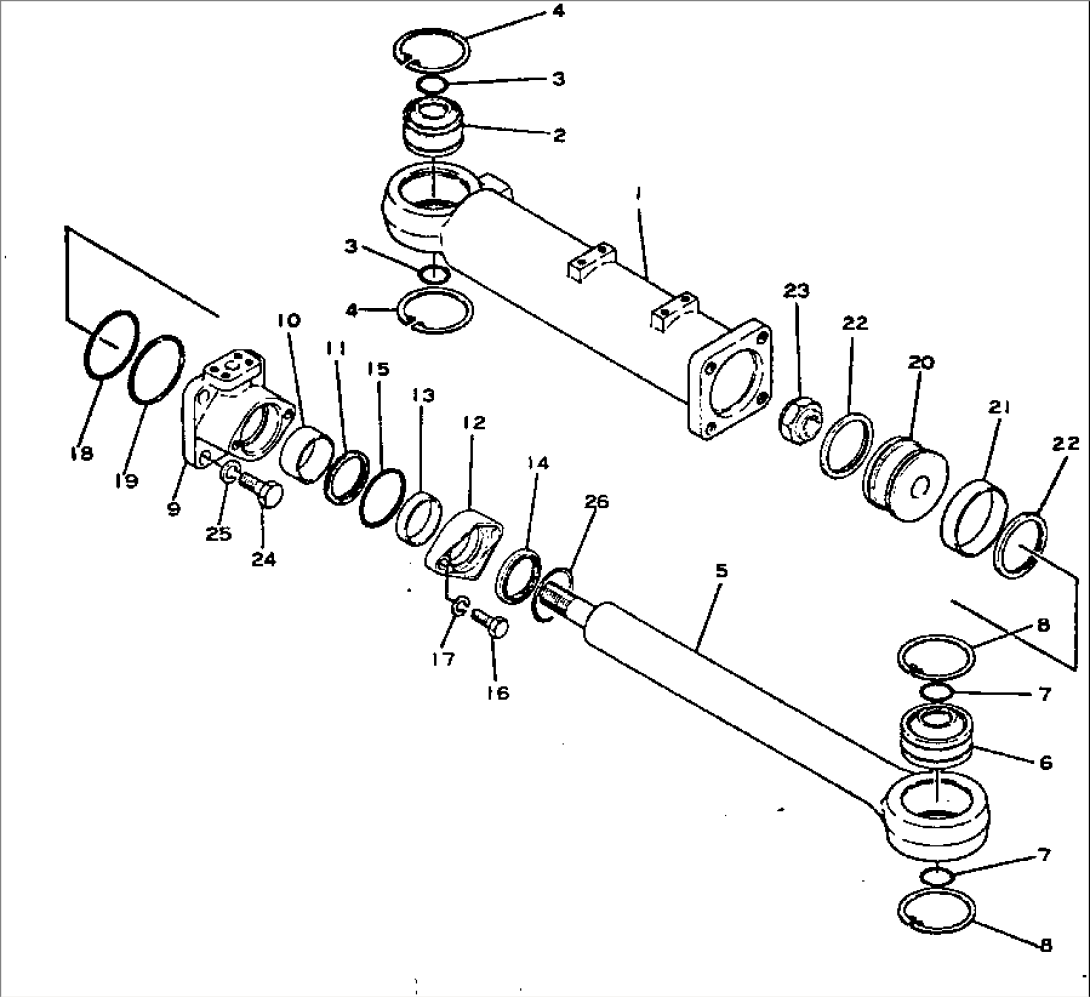

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-63-11300 | CYLINDER ASS'Y,L.H. | 2001- | ||
| 566-63-11100 | CYLINDER ASS'Y,L.H. | 1007-2000 | ||
| 566-63-11001 | CYLINDER ASS'Y,L.H. | 1005-1006 | ||
| 566-63-11400 | CYLINDER ASS'Y,R.H. | 2001- | ||
| 566-63-11200 | CYLINDER ASS'Y,R.H. | 1007-2000 | ||
| 566-63-12001 | CYLINDER ASS'Y,R.H. | 1005-1006 | ||
| 1 | 566-63-11232 | CYLINDER,L.H. | 1007-2000 | |
| 1 | 566-63-11231 | CYLINDER,L.H. | 1005-1006 | |
| 1 | 566-63-11310 | CYLINDER,R.H. | 2001- | |
| 1 | 566-63-11131 | CYLINDER,R.H. | 1005-2000 | |
| 2 | 07137-04006 | BUSHING | 1005- | |
| 3 | 07000-23040 | O-RING | 1005- | |
| 4 | 04065-09030 | RING | 1005- | |
| 5 | 566-63-11141 | ROD | 2001- | |
| 5 | 566-63-11140 | ROD | 1005-2000 | |
| 6 | 07137-04006 | BUSHING | 1005- | |
| 7 | 07000-23040 | O-RING | 1005- | |
| 8 | 04065-09030 | RING | 1005- | |
| 9 | 566-63-11150 | HEAD | 1005- | |
| 10 | 07177-06030 | BUSHING | 1005- | |
| 11 | 707-51-60110 | PACKING | 2001- | |
| 11 | \0\111-63-22233 | PACKING | 1133-2000 | |
| 11 | (\2\111-63-22231) | U-PACKING | (1005-1132) | |
| 12 | 566-63-11330 | GLAND | 1005- | |
| 12 | (\2\281-63-13190) | GLAND | (1005-1132) | |
| 13 | 07177-06015 | BUSHING | 1005- | |
| 14 | 141-63-93270 | SEAL | 2001- | |
| 14 | \0\07016-00608 | SEAL | 1005-2000 | |
| 15 | 07000-23075 | O-RING | 1005- | |
| 16 | 01010-51450 | BOLT | 1005- | |
| 16 | (\2\01010-31440) | BOLT | (1005-1132) | |
| 17 | 01602-21442 | WASHER | .- | |
| 17 | \0\01602-01442 | WASHER | 1005-. | |
| 18 | 07000-22095 | O-RING | 1005- | |
| 19 | 07146-02096 | RING | 1005- | |
| 20 | 566-63-11170 | PISTON | 2001- | |
| 20 | \0\281-63-13220 | PISTON | 1005-2000 | |
| 21 | 07155-01025 | RING | 1005- | |
| 22 | 281-63-11230 | RING | 2001- | |
| 22 | 281-63-11230 | RING | 1005-2000 | |
| 23 | 07165-13033 | NUT | 1133- | |
| 23 | \0\113-63-32480 | NUT | 1007-1132 | |
| 23 | \0\07165-03033 | NUT | 1005-1006 | |
| 24 | 01010-51845 | BOLT | .- | |
| 24 | \0\01010-31845 | BOLT | 1005-. | |
| 25 | 01602-21854 | WASHER | .- | |
| 25 | \0\01602-01854 | WASHER | 1005-. | |
| 26 | 07179-00082 | RING,SNAP | 1005- |
