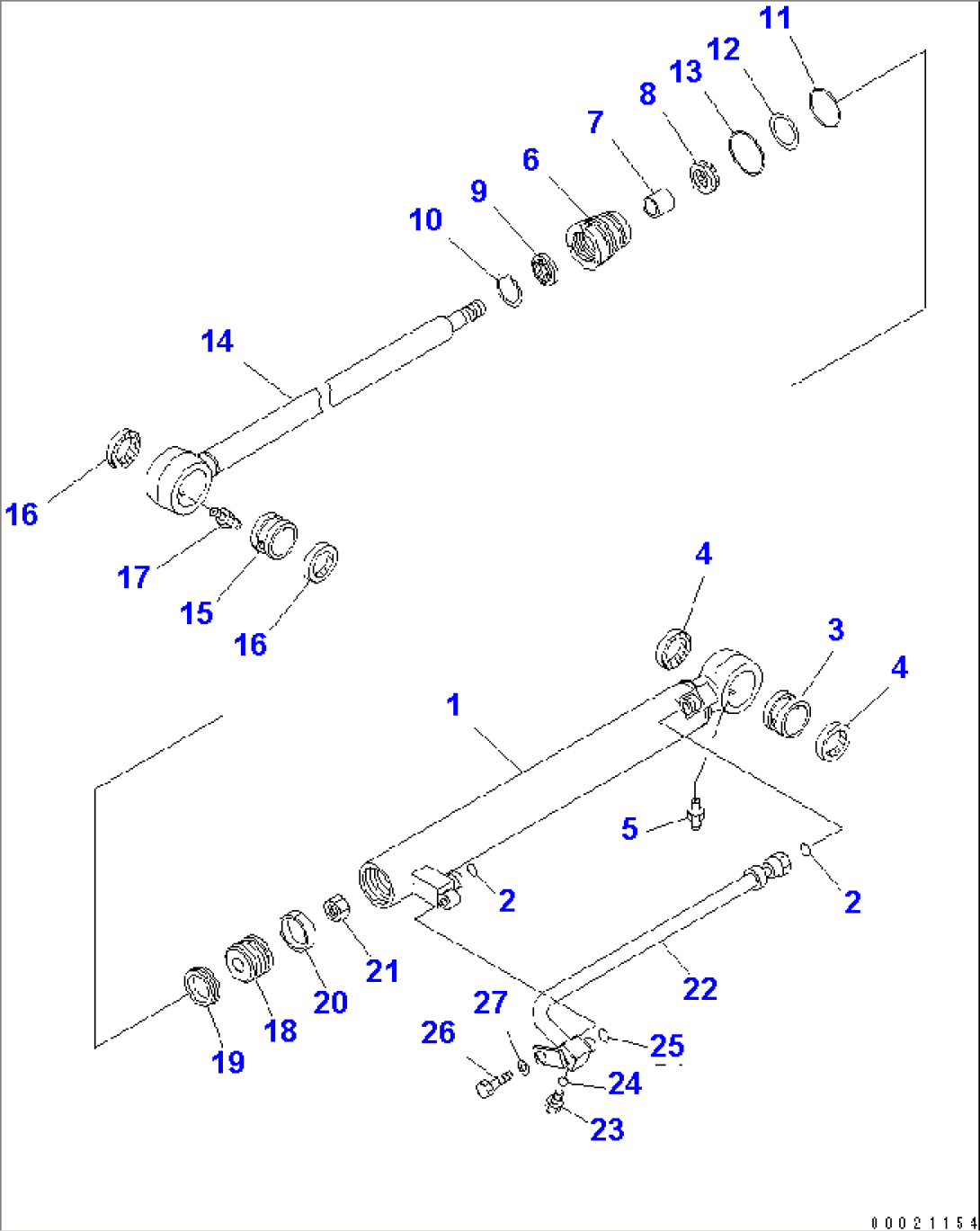

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-00-X8612) | CYLINDER GROUP,L.H. (FINAL COATING) | 12001- | |
| G2 | (\8\707-00-X8622) | CYLINDER GROUP,R.H. (FINAL COATING) | 12001- | |
| ==================== | ||||
| 707-00-03302 | CYLINDER ASS'Y,L.H. | 12001- | ||
| 707-00-03402 | CYLINDER ASS'Y,R.H. | 12001- | ||
| 1 | 707-11-40312 | CYLINDER,L.H. | 12001- | |
| 1 | 707-11-40322 | CYLINDER,R.H. | 12001- | |
| 2 | 02896-11009 | O-RING (KIT) | 12001- | |
| 3 | 07144-10302 | BUSHING | 10001- | |
| 4 | 07145-00030 | SEAL,DUST (KIT) | 10001- | |
| 5 | 07020-00000 | FITTING,GREASE | 12001- | |
| 6 | 707-29-40081 | HEAD,CYLINDER | 12001- | |
| 7 | 707-52-10250 | BUSHING | 10001- | |
| 8 | 707-51-25030 | PACKING,ROD (KIT) | 10001- | |
| 9 | 707-56-25510 | SEAL,DUST (KIT) | 10001- | |
| 10 | 07179-12037 | RING,SNAP | 10001- | |
| 11 | 07000-13035 | O-RING (KIT) | 10001- | |
| 12 | 707-35-52350 | RING,BACK-UP (KIT) | 10001- | |
| 13 | 707-34-45010 | O-RING (KIT) | 10001- | |
| 14 | 707-58-25600 | ROD,PISTON | 10001- | |
| 15 | 07144-10302 | BUSHING | 10001- | |
| 16 | 07145-00030 | SEAL,DUST (KIT) | 10001- | |
| 17 | 07020-00000 | FITTING,GREASE | 12001- | |
| 18 | 707-36-40030 | PISTON | 10001- | |
| 19 | 707-44-40070 | RING,PISTON (KIT) | 10001- | |
| 20 | 07155-00410 | RING,WEAR (KIT) | 10001- | |
| 21 | 707-67-16010 | NUT | 12001- | |
| 22 | 707-86-36072 | TUBE,L.H. | 12001- | |
| 22 | 707-86-36082 | TUBE,R.H. | 12001- | |
| 23 | 07040-11007 | PLUG | 12001- | |
| 24 | 07002-11023 | O-RING (KIT) | 12001- | |
| 25 | 02896-11009 | O-RING (KIT) | 12001- | |
| 26 | 01010-80816 | BOLT | 10001- | |
| 27 | 01643-30823 | WASHER | 10001- | |
| ==================== | ||||
| SERVICE KIT | ||||
| KIT | 707-98-03130 | SERVICE KIT | 12001- |
