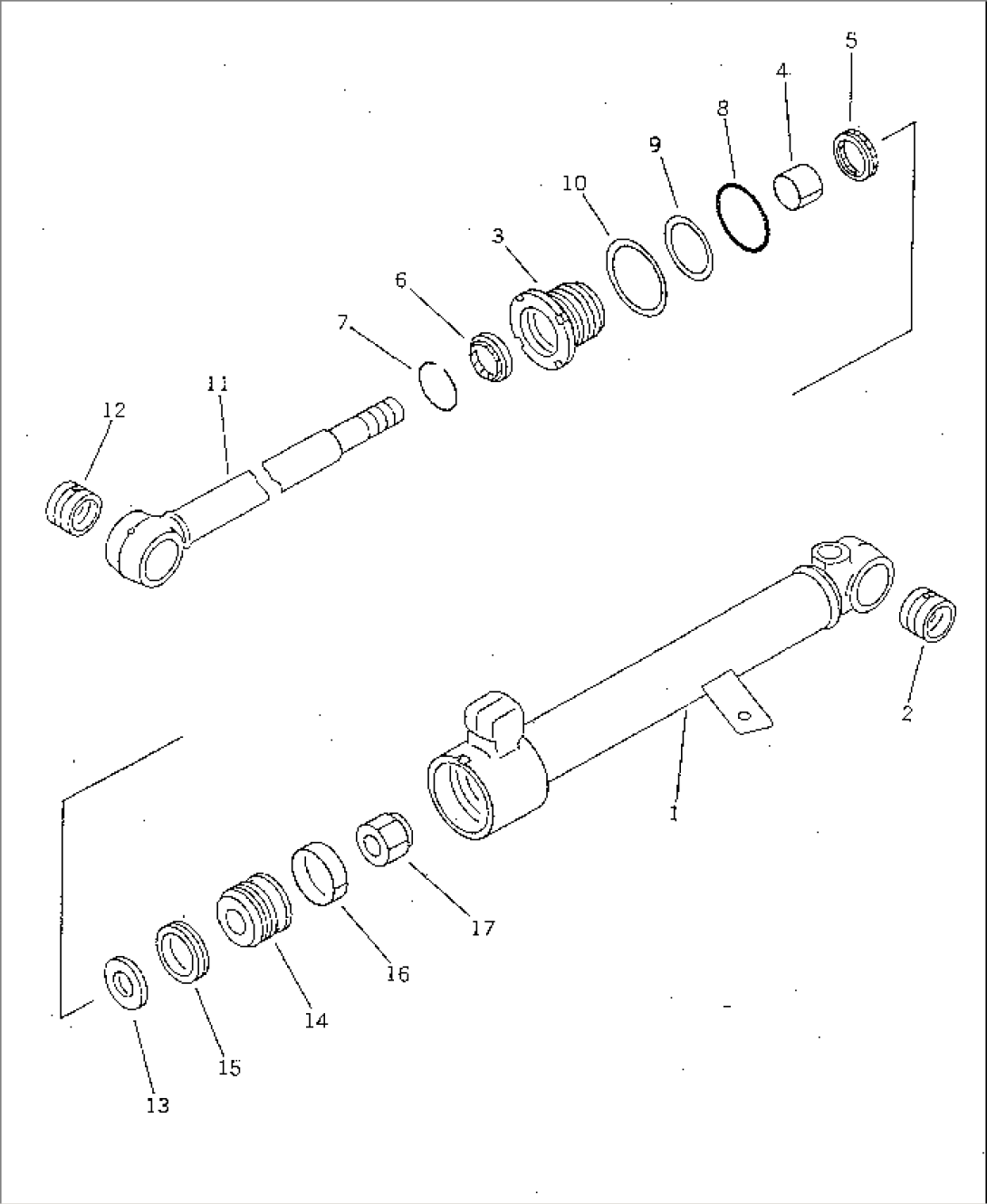

Item | Part No. | Part Name | Qty | Serial No. |
707-00-60022 | CYLINDER ASS'Y,L.H. | 20001- | ||
707-00-60012 | CYLINDER ASS'Y,R.H. | 20001- | ||
1 | 707-11-60331 | CYLINDER,L.H. | 20001- | |
1 | 707-11-60321 | CYLINDER,R.H. | 20001- | |
2 | 707-76-35040 | BUSHING | 10001- | |
3 | 707-29-60280 | HEAD,CYLINDER | 10001- | |
4 | 07177-04025 | BUSHING | 10001- | |
5 | 707-51-40030 | PACKING,ROD (KIT) | 10001- | |
6 | 198-63-75190 | SEAL,DUST (KIT) | 10001- | |
7 | 07179-00059 | RING,SNAP | 10001- | |
8 | 07000-12065 | O-RING (KIT) | 10001- | |
9 | 07001-02065 | RING,BACK-UP (KIT) | 10001- | |
10 | 707-45-60010 | RING | 10001- | |
11 | 707-58-40180 | ROD,PISTON | 10001- | |
12 | 707-76-35040 | BUSHING | 10001- | |
13 | 707-40-60280 | RETAINER | 10001- | |
14 | 707-36-60281 | PISTON | 10001- | |
15 | 707-44-60080 | RING,PISTON (KIT) | 10001- | |
16 | 07155-00615 | RING,WEAR (KIT) | 10001- | |
17 | 07165-13033 | NUT,NYLON | 10001- | |
SERVICE KIT | ||||
KIT | 707-99-14200 | SERVICE KIT,STEERING CYLINDER | 20001- |
