| Item | Part No. | Part Name | Qty | Serial No. |

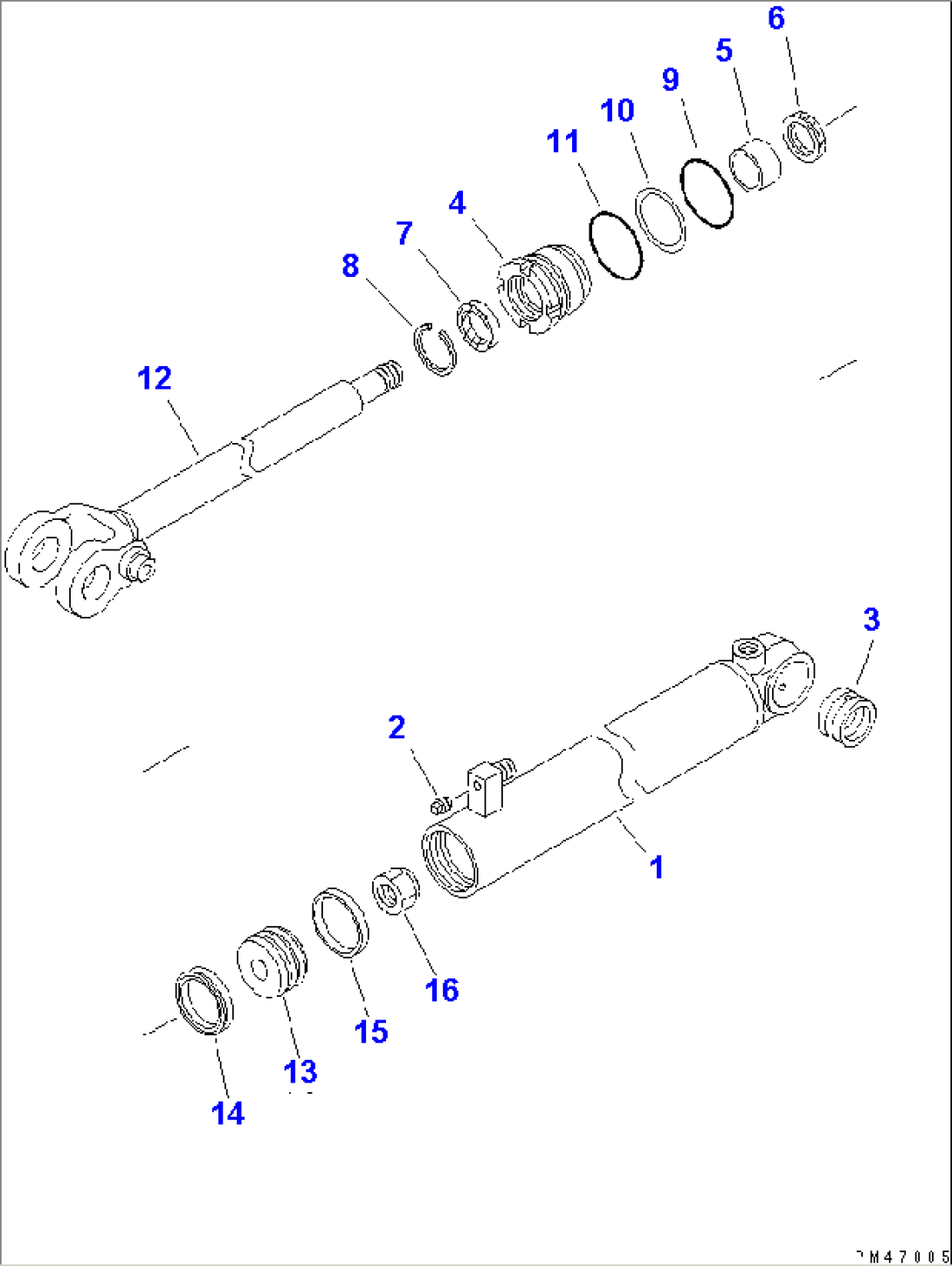

| 707-00-01350 | CYLINDER ASS'Y | 50001- | ||
| 1 | 707-11-70190 | CYLINDER | 50001- | |
| 2 | 07042-20108 | PLUG | 50001- | |
| 3 | 707-76-40020 | BUSHING | 50001- | |
| 4 | 707-29-70730 | HEAD,CYLINDER | 50001- | |
| 5 | 07177-04025 | BUSHING | 50001- | |
| 6 | 707-51-40030 | PACKING,ROD (KIT) | 50001- | |
| 7 | 198-63-75190 | SEAL,DUST (KIT) | 50001- | |
| 8 | 07179-12052 | RING,SNAP | 50001- | |
| 9 | 07000-12065 | O-RING (KIT) | 50001- | |
| 10 | 07146-02066 | RING,BACK-UP (KIT) | 50001- | |
| 11 | 07000-12070 | O-RING (KIT) | 50001- | |
| 12 | 707-59-40090 | ROD,PISTON | 50001- | |
| 13 | 707-36-70160 | PISTON | 50001- | |
| 14 | 707-44-70180 | RING,PISTON (KIT) | 50001- | |
| 15 | 07156-00710 | RING,WEAR (KT) | 50001- | |
| 16 | 07165-12426 | NUT | 50001- | |
| SERVICE KIT | ||||
| KIT | 707-99-14610 | SERVICE KIT,STEERING CYLINDER | 50001- |
