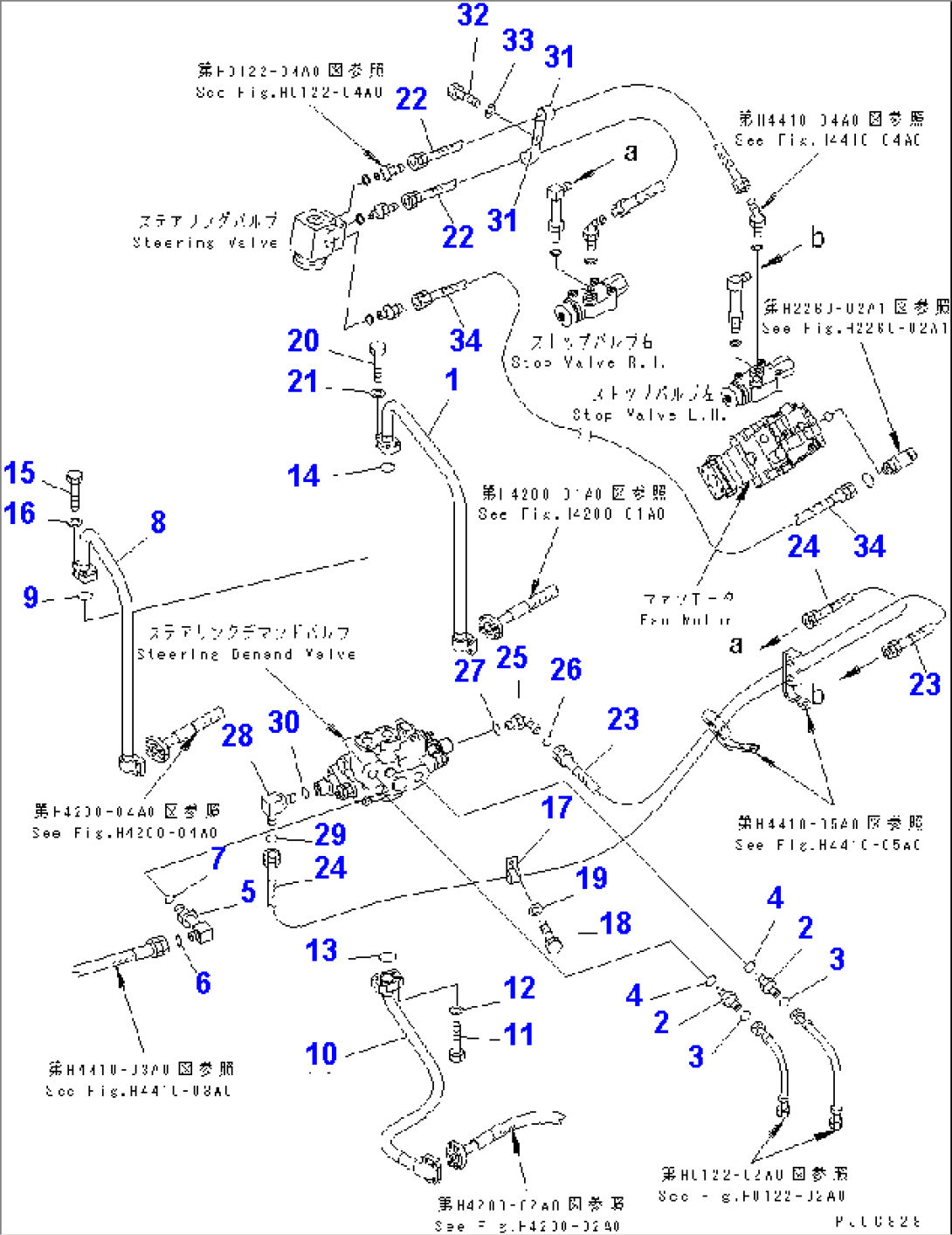

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-32152 | TUBE | 80024- | |
| 1 | 421-62-32151 | TUBE | 80001-80023 | |
| 2 | 02781-00628 | UNION | 80001- | |
| 3 | 02896-11018 | O-RING | 80001- | |
| 4 | 07002-12434 | O-RING | 80001- | |
| 5 | 421-09-31130 | ELBOW | 80001- | |
| 6 | 02896-11018 | O-RING | 80001- | |
| 7 | 07002-12434 | O-RING | 80001- | |
| 8 | 421-62-32162 | TUBE | 80024- | |
| 8 | 421-62-32161 | TUBE | 80001-80023 | |
| 9 | 07000-13035 | O-RING | 80001- | |
| 10 | 421-62-32171 | TUBE | 80001- | |
| 11 | 01010-81045 | BOLT | 80001- | |
| 12 | 01643-31032 | WASHER | 80001- | |
| 13 | 07000-13035 | O-RING | 80001- | |
| 14 | 07000-13035 | O-RING | 80001- | |
| 15 | 01010-81040 | BOLT | 80001- | |
| 16 | 01643-31032 | WASHER | 80001- | |
| 17 | 04434-51510 | CLIP | 80001- | |
| 18 | 01010-81020 | BOLT | 80001- | |
| 19 | 01643-31032 | WASHER | 80001- | |
| 20 | 01010-81040 | BOLT | 80001- | |
| 21 | 01643-31032 | WASHER | 80001- | |
| 22 | 02753-003A5 | HOSE | 80001- | |
| 22 | 02753-00305 | HOSE,(FOR JOYSTICK LEVER) | 80001- | |
| 23 | 02753-00311 | HOSE | 80001- | |
| 24 | 02753-00317 | HOSE | 80001- | |
| 25 | 02783-10315 | ELBOW | 80001- | |
| 26 | 02896-11009 | O-RING | 80001- | |
| 27 | 07002-12034 | O-RING | 80001- | |
| 28 | 02782-10315 | ELBOW | 80001- | |
| 29 | 02896-11009 | O-RING | 80001- | |
| 30 | 07002-12034 | O-RING | 80001- | |
| 31 | 04434-51510 | CLIP | 80001- | |
| 32 | 01010-81025 | BOLT | 80001- | |
| 33 | 01643-31032 | WASHER | 80001- | |
| 34 | 02753-00313 | HOSE | 80001- |
