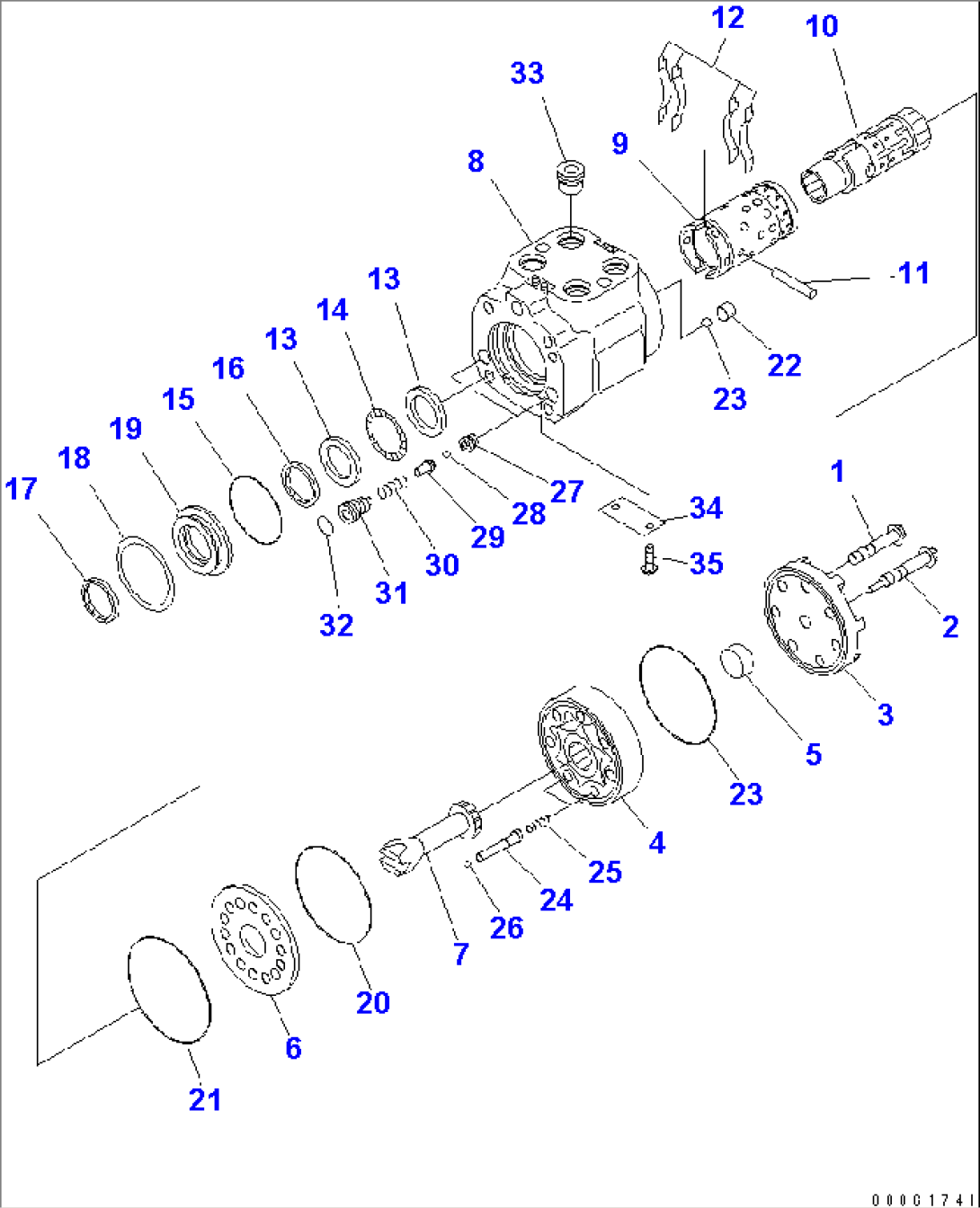

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-64-35101 | VALVE ASS'Y | 70001- | ||
| 1 | 417-64-35120 | SCREW | 70001- | |
| 2 | 417-64-35130 | RETAINER | 70001- | |
| 3 | 416-64-15430 | O-RING | 70001- | |
| 4 | 417-64-35140 | GEROTOR | 70001- | |
| 5 | 417-64-35150 | SPACER | 70001- | |
| 6 | 416-64-15160 | PLATE | 70001- | |
| 7 | 416-64-15170 | DRIVE | 70001- | |
| \6\ | CONTROL ASS'Y | 70001- | ||
| 8 | \6\ | HOUSING | 70001- | |
| 9 | \6\ | SLEEVE | 70001- | |
| 10 | \6\ | SPOOL | 70001- | |
| 11 | 416-64-15410 | PIN | 70001- | |
| 12 | 416-64-35410 | SPRING | 70001- | |
| 13 | 416-64-15490 | RACE (K2) | 70001- | |
| 14 | 416-64-15510 | NEEDLE (K2) | 70001- | |
| 15 | 416-64-15560 | O-RING (K1) | 70001- | |
| 16 | 416-64-35420 | OIL SEAL,OIL (K1) | 70001- | |
| 17 | 416-64-15550 | SEAL,DUST (K1) | 70001- | |
| 18 | 416-64-15530 | RING | 70001- | |
| 19 | 416-64-35430 | BUSHING | 70001- | |
| 20 | 416-64-15520 | O-RING (K1) | 70001- | |
| 21 | 425-64-21180 | O-RING (K1) | 70001- | |
| 22 | 425-64-21190 | ADAPTER | 70001- | |
| 23 | 425-64-21210 | BALL | 70001- | |
| 24 | 419-64-25830 | RETAINER | 70001- | |
| 25 | 419-64-25840 | SPRING | 70001- | |
| 26 | 419-64-25850 | BALL | 70001- | |
| 27 | \6\ | SEAT | 70001- | |
| 28 | \6\ | BALL | 70001- | |
| 29 | \6\ | HOLDER | 70001- | |
| 30 | \6\ | SPRING | 70001- | |
| 31 | \6\ | PLUG | 70001- | |
| 32 | \6\ | O-RING | 70001- | |
| 33 | \6\ | CHECK VALVE ASS'Y | 70001- | |
| 34 | \6\ | GUIDE | 70001- | |
| 35 | \6\ | SPRING | 70001- | |
| SERVICE KIT | ||||
| K1 | 416-64-35440 | SEAL KIT | 70001- | |
| K2 | 416-64-15480 | BEARING ASS'Y | 70001- |
