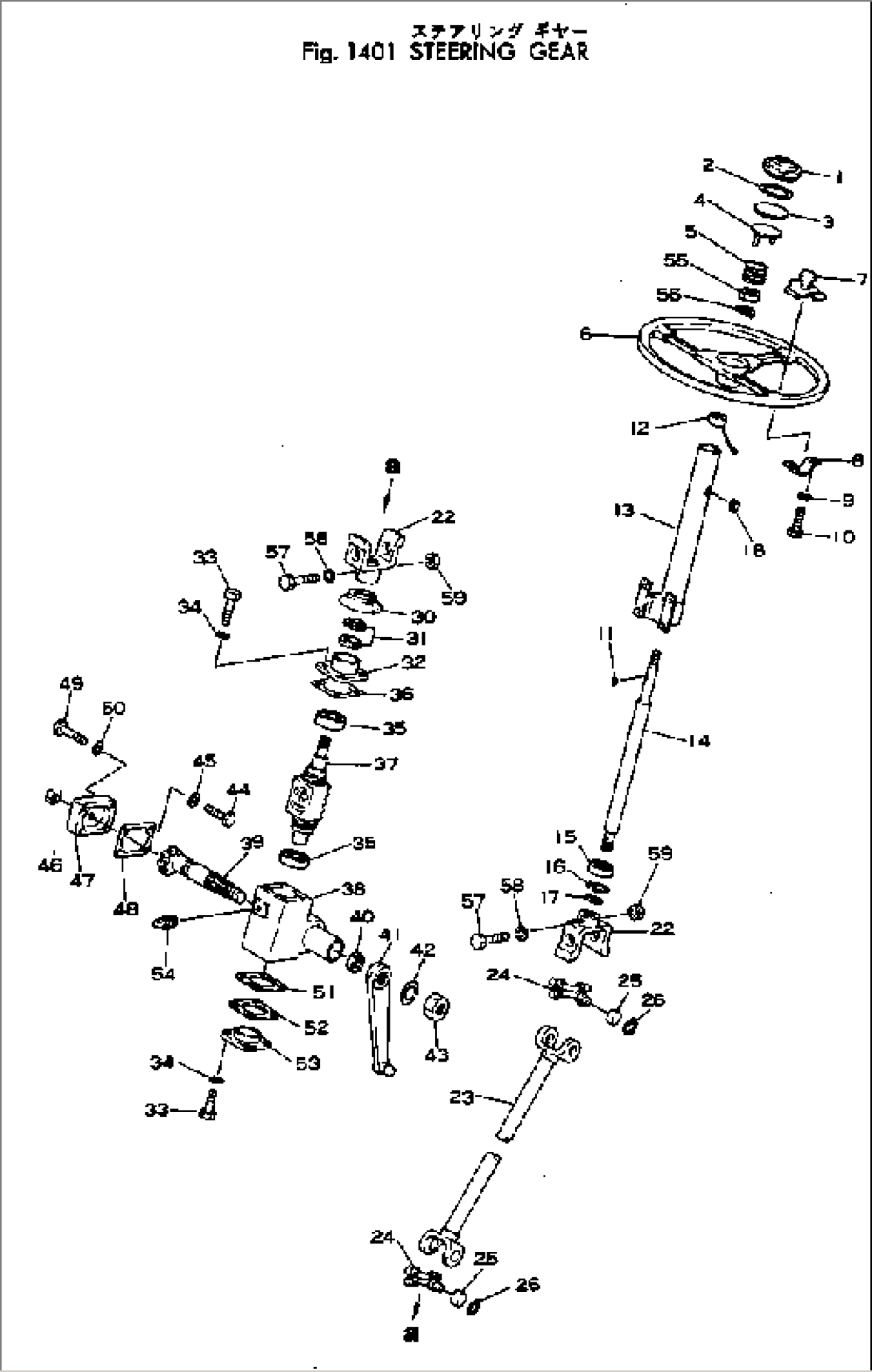

Item | Part No. | Part Name | Qty | Serial No. |
381-980404-4 | STEERING WHEEL ASS'Y | ..- | ||
\0\381-980404-3 | STEERING WHEEL ASS'Y | .-.. | ||
\0\381-980404-2 | STEERING WHEEL ASS'Y | 1-. | ||
1 | 385-10064991 | CAP | .- | |
381-980405-2 | CAP | 1-. | ||
2 | 385-11050921 | SPRING | .- | |
381-974968-1 | SPRING | 1-. | ||
3 | 381-974969-1 | SEAT | 1-. | |
4 | 385-10065011 | PLATE | .- | |
381-974966-1 | PLATE | 1-. | ||
5 | 385-11050921 | SPRING | .- | |
381-974965-1 | SPRING | 1-. | ||
6 | 381-980407-1 | WHEEL | 1- | |
7 | 381-974970-2 | KNOB | .- | |
\0\381-974970-1 | KNOB | 1-. | ||
8 | 381-976910-1 | PLATE | 1- | |
9 | 01602-00619 | WASHER | 1- | |
10 | 01220-30620 | SCREW | 1- | |
381-986749-1 | GEAR ASS'Y | 1- | ||
381-987123-2 | SHAFT ASS'Y,UPPER | .- | ||
\0\381-987123-1 | SHAFT ASS'Y,UPPER | 1-. | ||
11 | 380-888934-1 | KEY | 1- | |
12 | 381-976395-3 | BUSHING | .- | |
\0\381-976395-2 | BUSHING | 1-. | ||
13 | 381-987119-1 | COLUMN,UPPER | 1- | |
14 | 381-987115-1 | SHAFT | 1- | |
15 | 381-987118-1 | BEARING | 1- | |
16 | 04064-02012 | RING | 1- | |
17 | 04065-04718 | RING | 1- | |
18 | 380-888705-2 | GROMMET | 1- | |
381-987114-1 | YOKE ASS'Y | 1- | ||
22 | 381-986885-1 | YOKE | 1- | |
23 | 381-987120-1 | SHAFT | 1- | |
381-987121-1 | SPIDER ASS'Y | 1- | ||
24 | 381-987148-1 | SPIDER | 1- | |
25 | 381-987147-1 | BEARING | 1- | |
26 | 381-987146-1 | RING | 1- | |
381-987122-1 | GEAR ASS'Y | 1- | ||
30 | 381-987829-1 | COVER | 1- | |
31 | 381-987106-1 | SEAL | 1- | |
32 | 381-987107-1 | COVER | 1- | |
33 | 381-972197-1 | SCREW | 1- | |
34 | 01602-01030 | WASHER | 1- | |
35 | 380-888930-1 | BEARING | 1- | |
36 | 381-972062-1 | PACKING | 1- | |
37 | 381-987109-1 | BALL NUT ASS'Y | 1- | |
38 | 381-987108-1 | GEAR BOX ASS'Y | 1- | |
39 | 380-888922-1 | SHAFT | 1- | |
40 | 380-888931-1 | SEAL | 1- | |
41 | 381-987830-1 | ARM | 1- | |
42 | 01602-02060 | WASHER | 1- | |
43 | 01582-02016 | NUT | 1- | |
44 | 380-888923-1 | SCREW | 1- | |
45 | 380-888924-1 | SHIM | 1- | |
46 | 01582-01008 | NUT | 1- | |
47 | 380-888928-1 | COVER | 1- | |
48 | 381-972063-1 | PACKING | 1- | |
49 | 01010-30822 | BOLT | 1- | |
50 | 01602-00825 | WASHER | 1- | |
51 | 380-888929-1 | SHIM | 1- | |
52 | 381-972061-1 | PACKING | 1- | |
53 | 380-888927-1 | COVER | 1- | |
54 | 384-0445686 | PLUG | .- | |
\0\380-P16-0000 | PLUG | 1-. | ||
55 | 01582-01210 | NUT | 1- | |
56 | 381-974971-2 | WASHER | 1- | |
57 | 380-S2616-00 | BOLT | 1- | |
58 | 380-WL16-000 | WASHER | 1- | |
59 | 380-H26-0000 | NUT | 1- |
