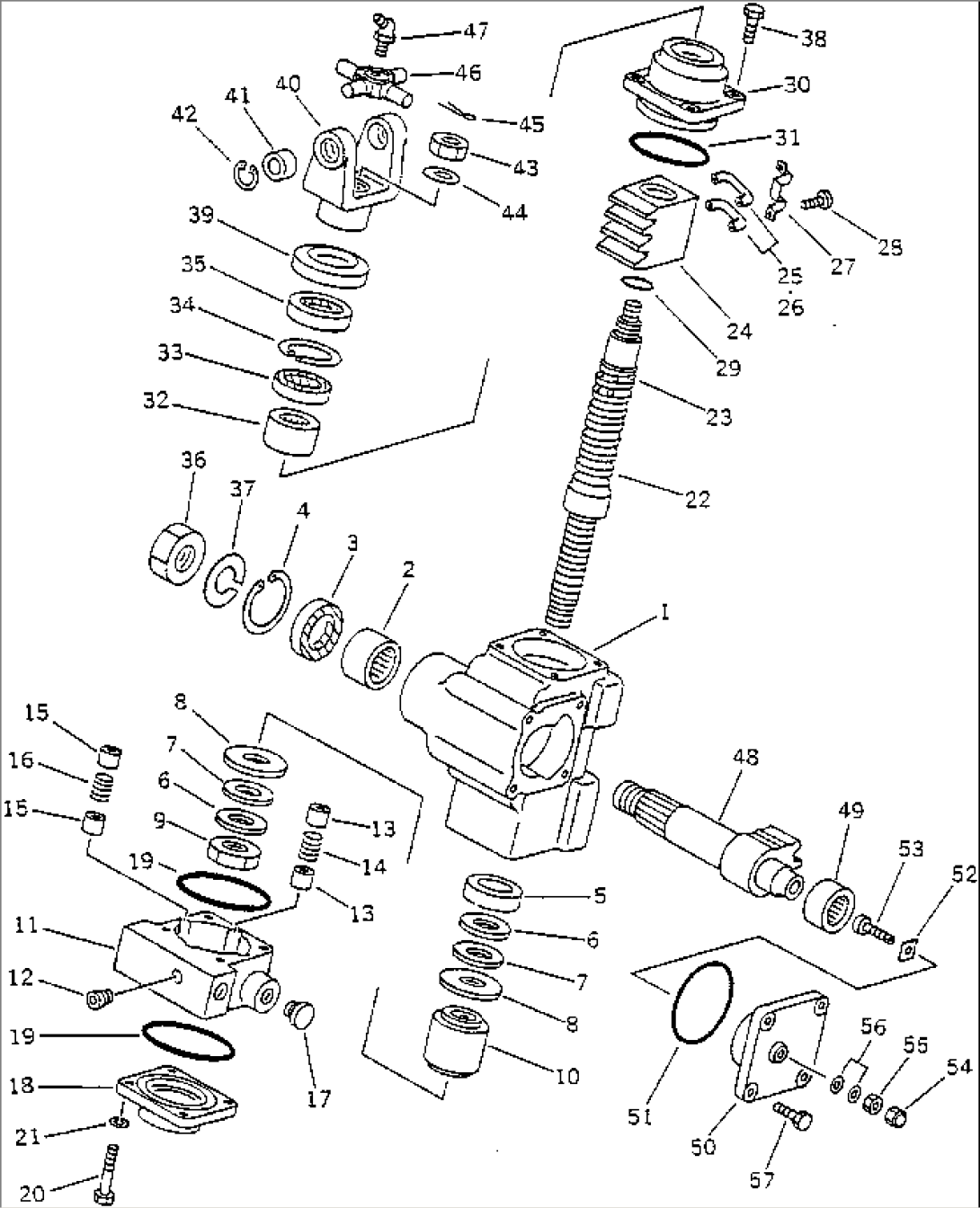

| Item | Part No. | Part Name | Qty | Serial No. |
| 567-40-42600 | GEAR BOX ASS'Y | 1001- | ||
| 567-40-42030 | BOX | 1001- | ||
| 567-40-42040 | BOX | 1001- | ||
| 1 | \6\ | BOX | 1001- | |
| 2 | \6\ | BUSHING | 1001- | |
| 3 | 512-40-15130 | SEAL | 1001- | |
| 4 | 512-40-15140 | RING | 1001- | |
| 5 | 232-40-53120 | BEARING | 1001- | |
| 6 | 232-40-53330 | WASHER | 1001- | |
| 7 | 232-40-53350 | BEARING | 1001- | |
| 8 | 232-40-53340 | WASHER | 1001- | |
| 9 | 232-40-53360 | NUT | 1001- | |
| 567-40-42070 | VALVE ASS'Y | 1001- | ||
| 567-40-42080 | VALVE | 1001- | ||
| 10 | \6\ | SPOOL | 1001- | |
| 11 | \6\ | SLEEVE | 1001- | |
| 12 | 512-40-15370 | PLUG | 1001- | |
| 13 | 512-40-15340 | PISTON | 1001- | |
| 14 | 512-40-15360 | SPRING | 1001- | |
| 15 | 512-40-15350 | PISTON | 1001- | |
| 16 | 512-40-15380 | SPRING | 1001- | |
| 17 | 512-40-15590 | CAP | 1001- | |
| 18 | 232-40-53450 | COVER | 1001- | |
| 19 | 232-40-53370 | O-RING | 1001- | |
| 20 | 567-40-42620 | BOLT | 1001- | |
| 21 | 01602-21030 | WASHER,SPRING | 1001- | |
| 512-40-15010 | BALL NUT ASS'Y | 1001- | ||
| 22 | \6\ | WORM | 1001- | |
| 23 | \6\ | BALL | 1001- | |
| 24 | \6\ | NUT | 1001- | |
| 25 | \6\ | TUBE | 1001- | |
| 26 | \6\ | TUBE | 1001- | |
| 27 | \6\ | CLAMP | 1001- | |
| 28 | \6\ | SCREW | 1001- | |
| 29 | 512-40-15570 | O-RING | 1001- | |
| 567-40-42060 | COVER ASS'Y | 1001- | ||
| 30 | 512-40-15250 | COVER | 1001- | |
| 31 | 512-40-15310 | O-RING | 1001- | |
| 32 | 512-40-15260 | BEARING | 1001- | |
| 33 | 512-40-15270 | SEAL | 1001- | |
| 34 | 512-40-15280 | RING | 1001- | |
| 35 | 512-40-15290 | SEAL | 1001- | |
| 36 | 01583-12716 | NUT | 1001- | |
| 37 | 01602-22783 | WASHER,SPRING | 1001- | |
| 38 | 567-40-42640 | BOLT | 1001- | |
| 39 | 512-40-15580 | COVER | 1001- | |
| 40 | 512-40-15470 | YOKE | 1001- | |
| 41 | 512-40-15540 | BEARING | 1001- | |
| 42 | 512-40-15560 | RING | 1001- | |
| 43 | 512-40-15490 | NUT | 1001- | |
| 44 | 512-40-15480 | WASHER | 1001- | |
| 45 | 512-40-15510 | PIN | 1001- | |
| 46 | 512-40-15530 | SPIDER | 1001- | |
| 47 | 512-40-15550 | FITTING | 1001- | |
| 48 | 512-40-15610 | SHAFT | 1001- | |
| 567-40-42050 | COVER ASS'Y | 1001- | ||
| 49 | \6\ | BUSHING | 1001- | |
| 50 | \6\ | COVER,SIDE | 1001- | |
| 51 | 512-40-15310 | O-RING | 1001- | |
| 52 | 512-40-15460 | SHIM | 1001- | |
| 53 | 512-40-15450 | SCREW | 1001- | |
| 54 | 567-40-42630 | NUT | 1001- | |
| 55 | 512-40-15420 | NUT | 1001- | |
| 56 | 512-40-15430 | PACKING | 1001- | |
| 57 | 567-40-42640 | BOLT | 1001- |
