| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07621-00319 | HOSE | 51075- | |
| 2 | 04434-51610 | CLIP | 51075- | |
| 3 | 01435-01045 | BOLT | 51075- | |
| 4 | 419-43-17910 | SPACER | 51075- | |
| 5 | 07623-00305 | HOSE | 51075- | |
| 6 | 07621-00306 | HOSE | 51075- | |
| 7 | 07623-00303 | HOSE | 51075- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa700 3 s/n 50001 up (tbg spec.)
- Hydraulic system
- Steering hydraulic line (pilot line¤ 4/4) (with advanced joy stick steering)(#51075 )
Поиск по каталогу

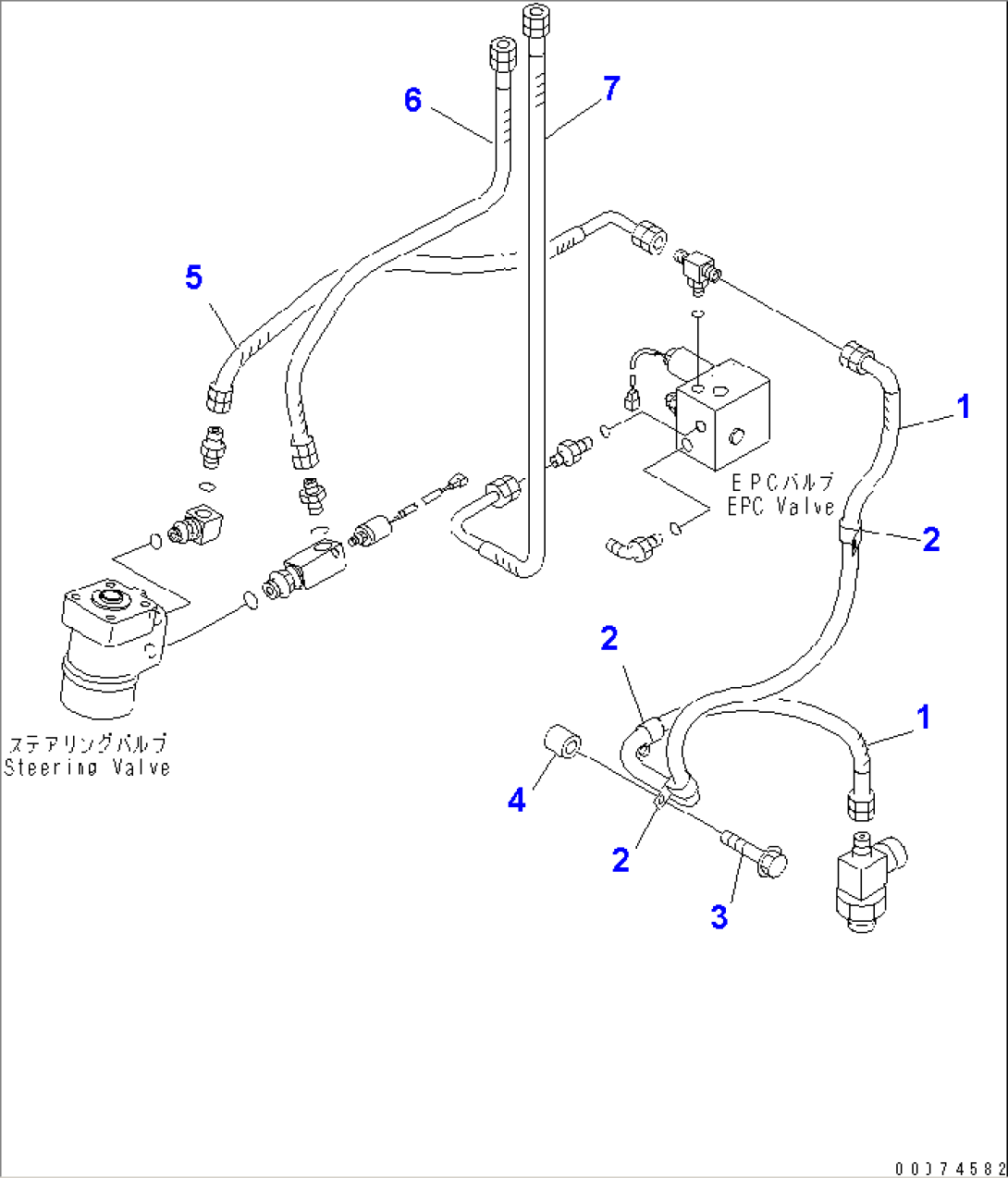

STEERING HYDRAULIC LINE (PILOT LINE¤ 4/4) (WITH ADVANCED JOY STICK STEERING)(#51075-)
