| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01435-00860 | BOLT | 50001- | |
| 2 | 425-62-22110 | PLATE | 50001- | |
| 3 | 421-62-12320 | BOLT | 50001- | |
| 4 | 01580-11210 | NUT | 50001- | |
| 5 | 01435-01025 | BOLT | 50001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3 s/n 50001 up
- Hydraulic system
- Steering hydraulic line (stop valve mounting and stopper bolt)
Поиск по каталогу

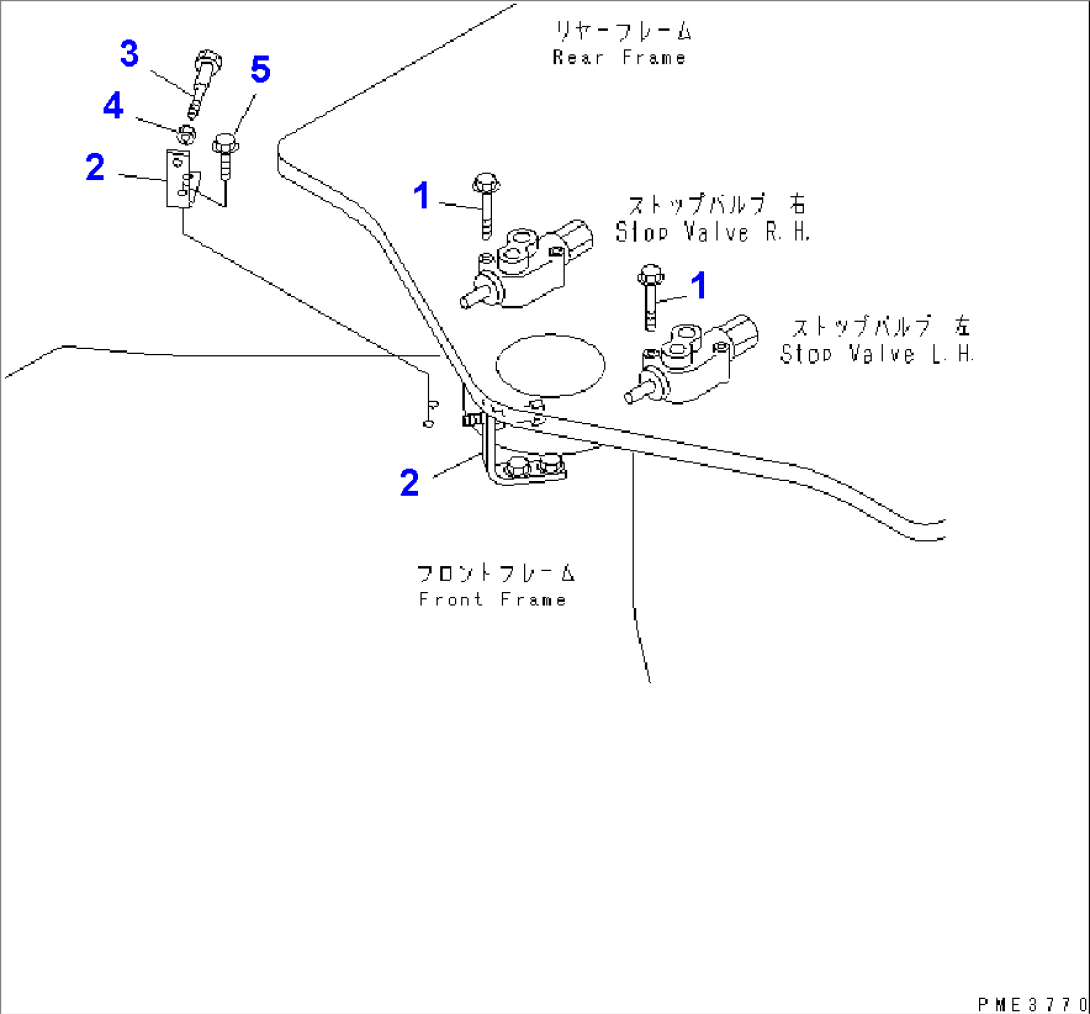

STEERING HYDRAULIC LINE (STOP VALVE MOUNTING AND STOPPER BOLT)
