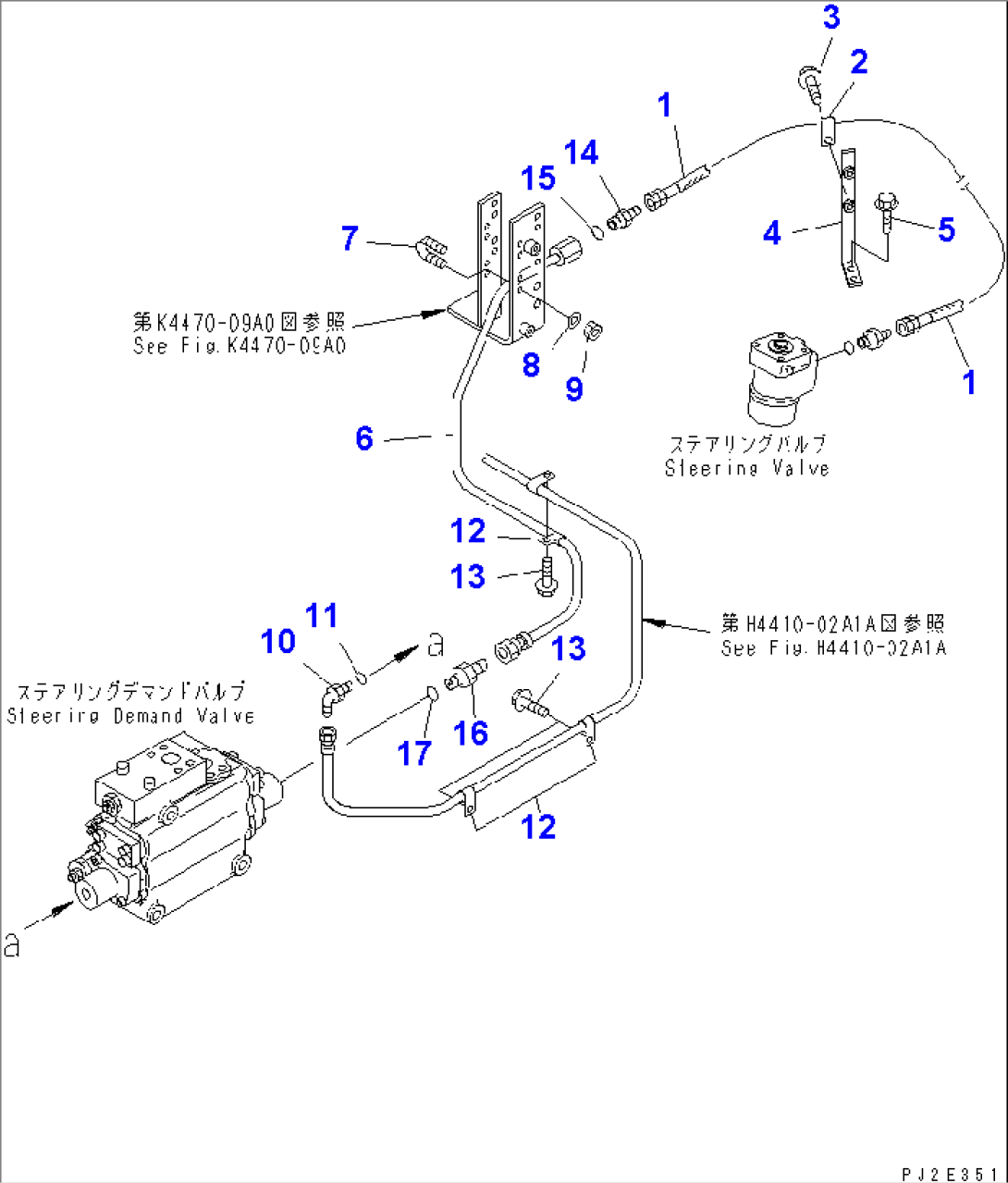

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07621-003A8 | HOSE | 51001- | |
| 2 | 04434-51810 | CLIP | 50001- | |
| 3 | 01435-01016 | BOLT | 50001- | |
| 4 | 428-62-21110 | BRACKET | 50001- | |
| 5 | 01435-01020 | BOLT | 50001- | |
| 6 | 428-62-21150 | TUBE | 51001- | |
| 7 | 07283-31529 | CLIP | 50001- | |
| 8 | 01643-30823 | WASHER | 50001- | |
| 9 | 01596-00807 | NUT | 50001- | |
| 10 | 07235-10315 | ELBOW | 50001- | |
| 11 | 07002-22034 | O-RING | 50001- | |
| 12 | 04434-51510 | CLIP | 50001- | |
| 13 | 01435-01016 | BOLT | 50001- | |
| 14 | 21J-60-11372 | NIPPLE | 51001- | |
| 15 | 07002-22034 | O-RING | 51001- | |
| 16 | 415-62-11550 | NIPPLE | 50001- | |
| 17 | 415-62-11560 | O-RING | 50001- |
