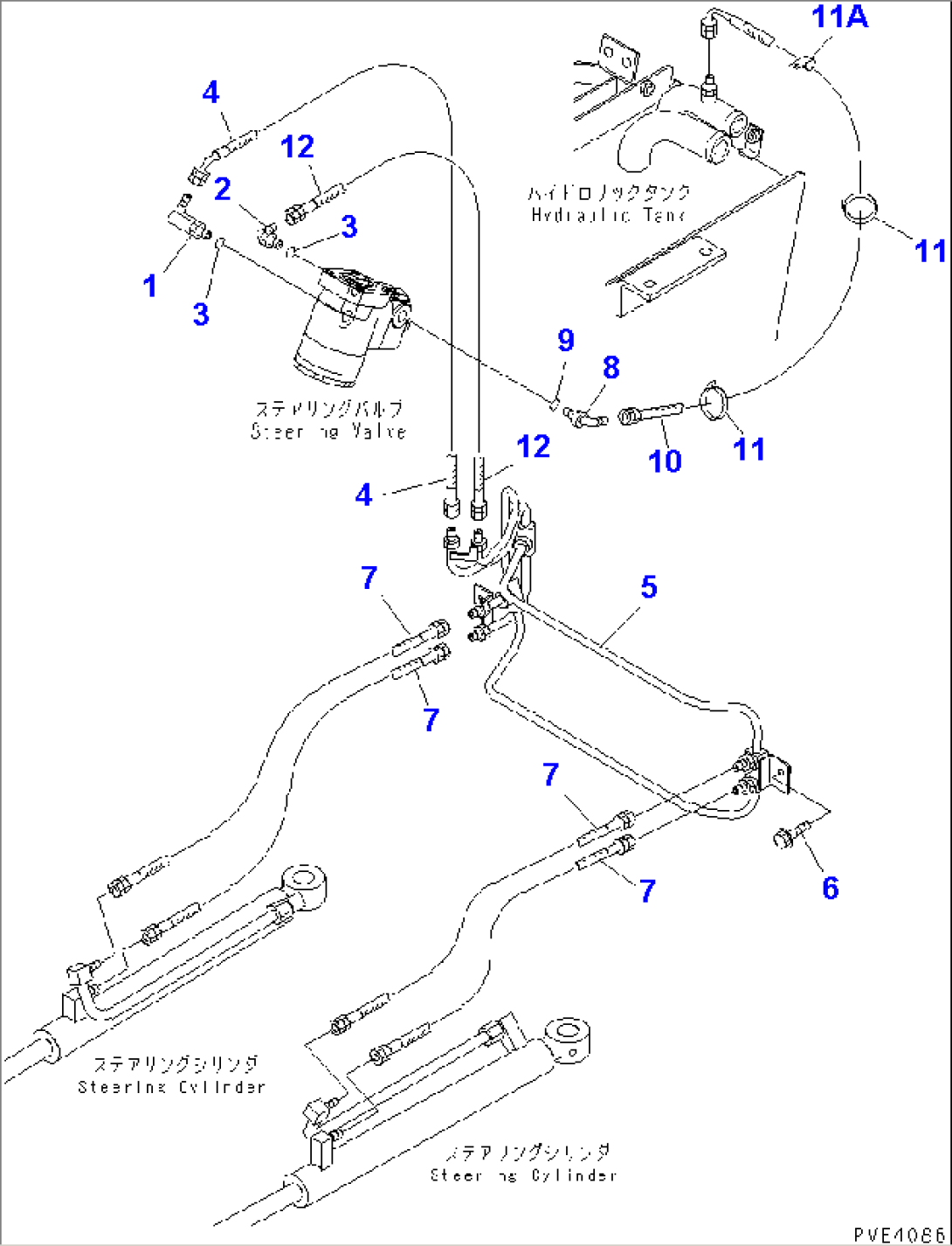

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-62-21181 | ELBOW | 10001-11257 | |
| 2 | 363-62-31210 | ELBOW | 10001-11257 | |
| 3 | 07000-12014 | O-RING | 10001-11257 | |
| 4 | 415-62-21112 | HOSE | 10001-11257 | |
| 5 | 415-62-21143 | TUBE | 10001-12000 | |
| 6 | 01435-01020 | BOLT | 10001-12000 | |
| 7 | 07086-00305 | HOSE | 10001-12000 | |
| 8 | 363-62-31210 | ELBOW | 10001-11257 | |
| 9 | 07000-12014 | O-RING | 10001-11257 | |
| 10 | 415-62-21151 | HOSE | 10001-11257 | |
| 11 | 08034-20519 | BAND | 10001-12000 | |
| 11A | 04434-51810 | CLIP | 10166-12000 | |
| 12 | 415-62-21211 | HOSE | 10001-11257 |
