| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-62-21441 | TUBE | 12001- | |
| 2 | 01010-81025 | BOLT | 12001- | |
| 3 | 01643-31032 | WASHER | 12001- | |
| 4 | 415-62-21471 | HOSE | 12018- | |
| 4 | 415-62-21470 | HOSE | 12001-12017 | |
| 5 | 02896-11009 | O-RING | 12001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa80 3 s/n 10001 up (canopy spec.)
- Hydraulic system
- Steering hydraulic line(#12001 )
Поиск по каталогу

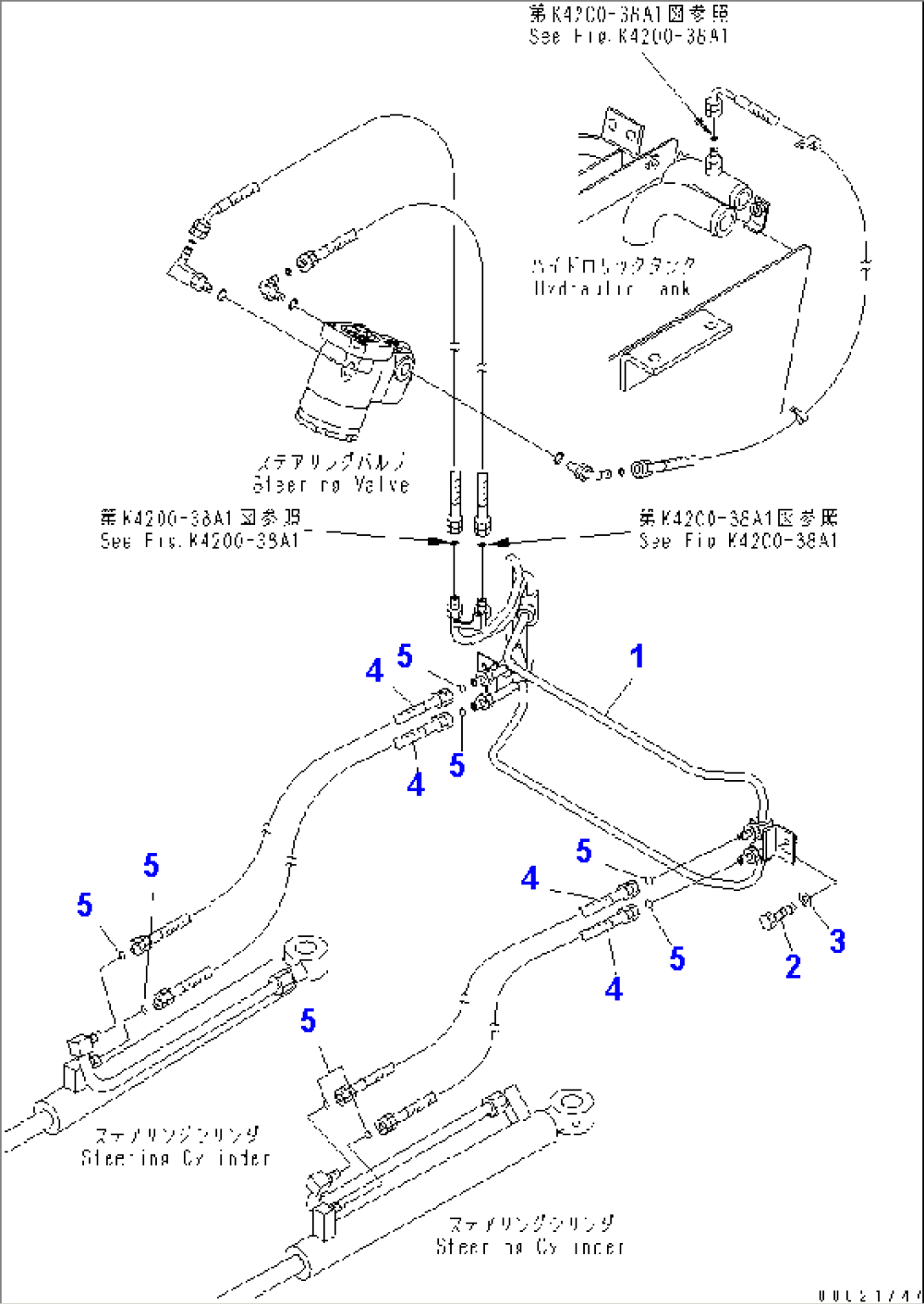

STEERING HYDRAULIC LINE(#12001-)
