| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-31110 | Union | C10001- | |
| 2 | 07000-12014 | O-ring | C10001- | |
| 3 | 02896-11008 | O-ring | C10001- | |
| 4 | 01010-80820 | Bolt | C10001- | |
| 5 | 01643-30823 | Washer | C10001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa200 6 s/n c10001 up
- Hydraulic system
- Steering hydraulic piping cushion valve mounts (#c10001 )
Поиск по каталогу

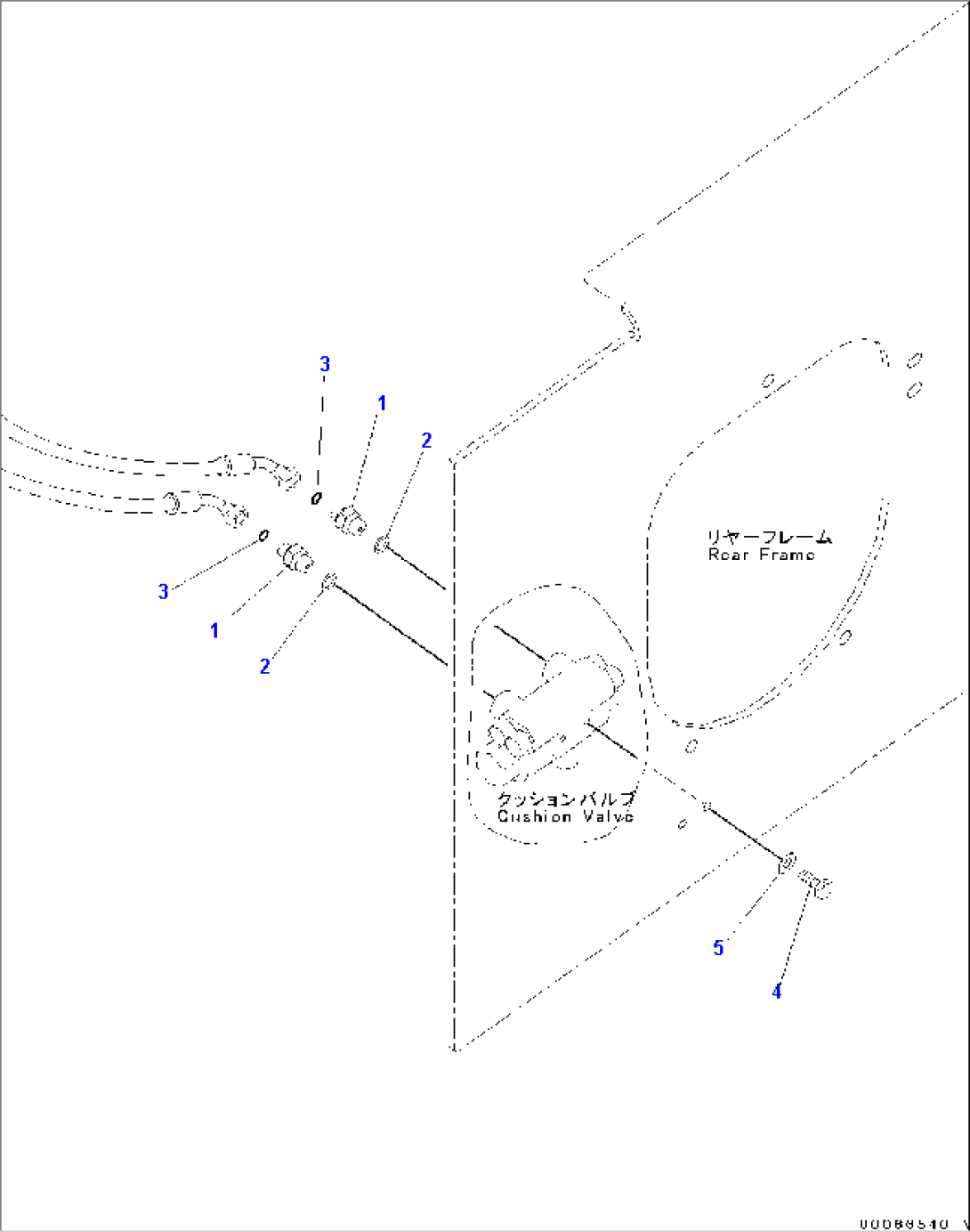

Steering Hydraulic Piping Cushion Valve Mounts (#C10001-)
