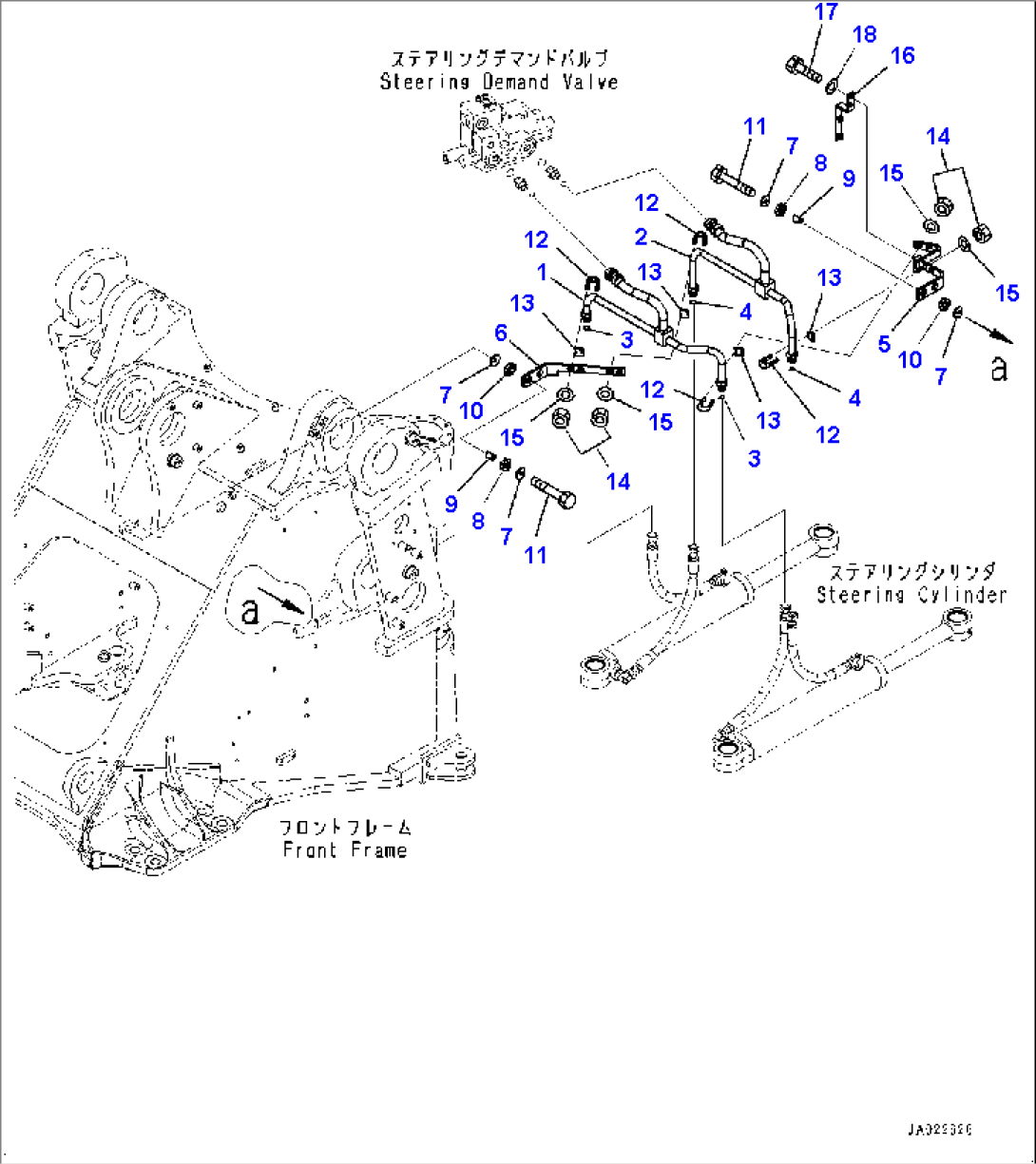

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-42370 | Tube | 90216- | |
| 2 | 421-62-42380 | Tube | 90216- | |
| 3 | 02896-11015 | O-ring | 90216- | |
| 4 | 02896-11015 | O-ring | 90216- | |
| 5 | 421-62-42290 | Bracket | 90216- | |
| 6 | 421-62-21130 | Plate | 90216- | |
| 7 | 415-64-13120 | Washer | 90216- | |
| 8 | 415-64-13130 | Cushion | 90216- | |
| 9 | 421-62-18560 | Spacer | 90216- | |
| 10 | 419-43-17930 | Cushion | 90216- | |
| 11 | 01010-81050 | Bolt | 90216- | |
| 12 | 07283-32244 | Clip | 90216- | |
| 13 | 07283-52232 | Seat | 90216- | |
| 14 | 01597-01009 | Nut | 90216- | |
| 15 | 01643-31032 | Washer | 90216- | |
| 16 | 421-62-41431 | Bracket | 90216- | |
| 17 | 01010-81020 | Bolt | 90216- | |
| 18 | 01643-31032 | Washer | 90216- |
