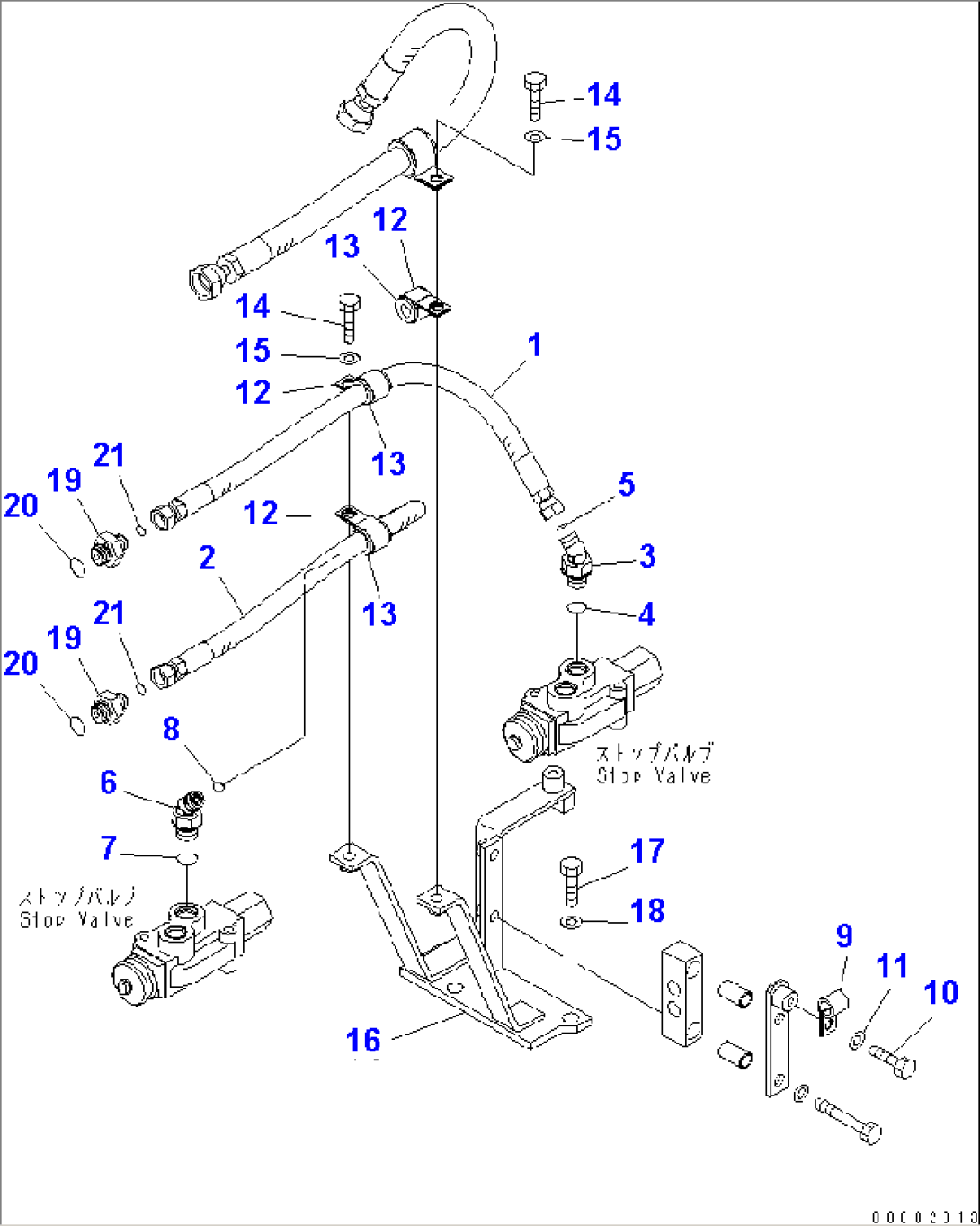

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-S33-4180 | HOSE, 520MM | 90001- | |
| 2 | 423-S33-4160 | HOSE, 470MM | 90001- | |
| 3 | 02783-10315 | ELBOW | 85001- | |
| 4 | 07002-12034 | O-RING | 85001- | |
| 5 | 02896-11009 | O-RING | 85001- | |
| 6 | 02783-10315 | ELBOW | 85001- | |
| 7 | 07002-12034 | O-RING | 85001- | |
| 8 | 02896-11009 | O-RING | 85001- | |
| 9 | 04434-51510 | CLIP | 85001- | |
| 10 | 01010-81020 | BOLT | 85001- | |
| 11 | 01643-31032 | WASHER | 85001- | |
| 12 | 04434-52312 | CLIP | 85001- | |
| 13 | 07095-20314 | CUSHION | 85001- | |
| 14 | 01010-81025 | BOLT | 85001- | |
| 15 | 01643-31032 | WASHER | 85001- | |
| 16 | 421-62-45830 | BRACKET | 90001- | |
| 17 | 01010-81435 | BOLT | 85001- | |
| 18 | 01643-31445 | WASHER | 85001- | |
| 19 | 424-62-31170 | NIPPLE | 85001- | |
| 20 | 415-62-11560 | O-RING | 85001- | |
| 21 | 02896-11009 | O-RING | 85001- |
