| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-62-A1520 | HOSE | A88001- | |
| 2 | 417-62-21391 | TUBE | A88001- | |
| 3 | 01435-01020 | BOLT | A88001- | |
| 4 | 417-62-21290 | HOSE | A88001- | |
| 5 | 07086-00403 | HOSE | A88001- | |
| 6 | 07222-00210 | PLUG | A88001- | |
| 7 | 07221-20210 | NUT | A88001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa180pt 3mc s/n a88001 up
- Hydraulic system
- Steering line (piping)
Поиск по каталогу

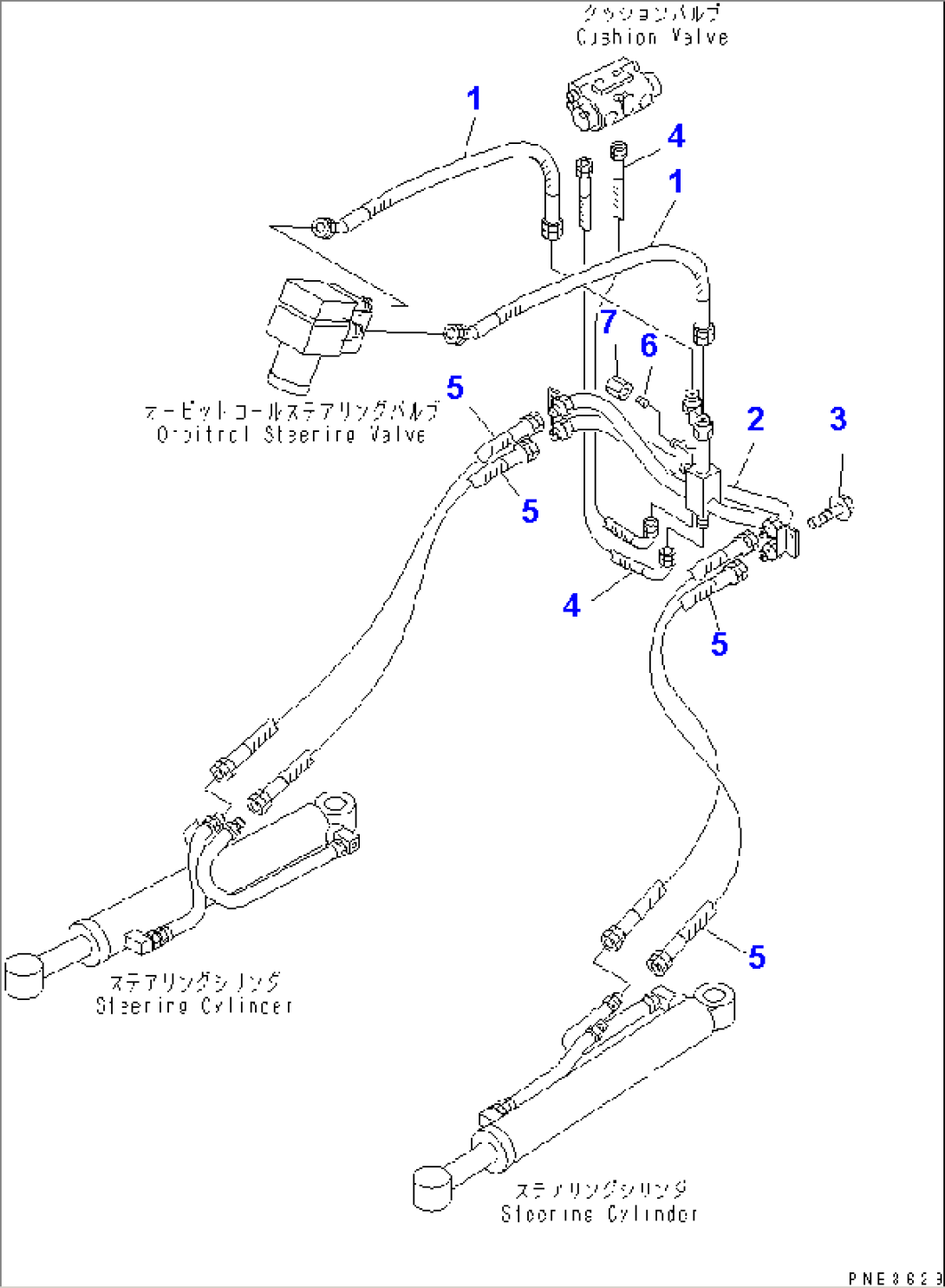

STEERING LINE (PIPING)
