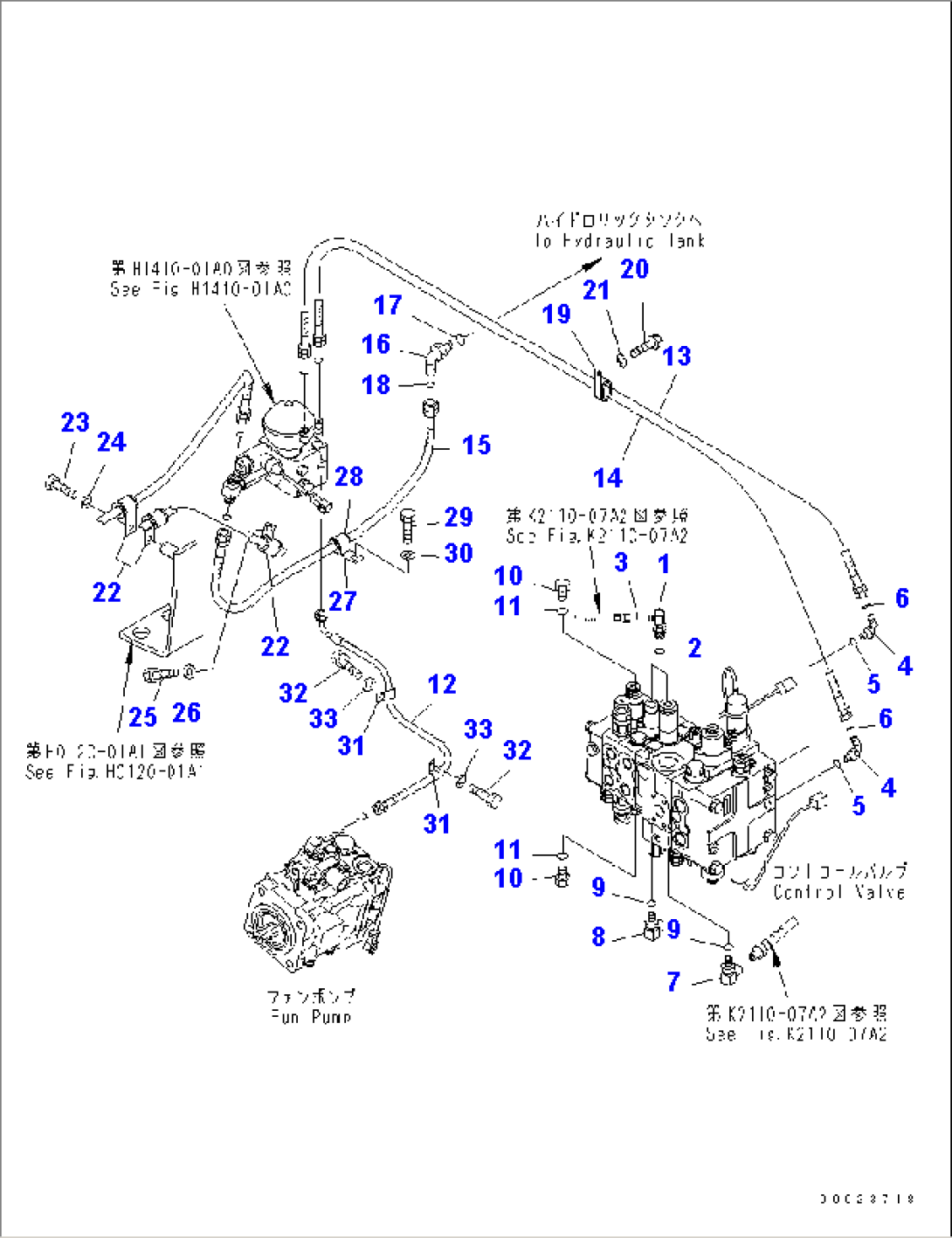

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02782-10210 | ELBOW | B45001- | |
| 2 | 07002-11423 | O-RING | B45001- | |
| 3 | 02896-11008 | O-RING | B45001- | |
| 4 | 02782-10210 | ELBOW | B45001- | |
| 5 | 07002-11423 | O-RING | B45001- | |
| 6 | 02896-11008 | O-RING | B45001- | |
| 7 | 134-62-71452 | ELBOW | B45001- | |
| 8 | 201-62-75420 | ELBOW | B45001- | |
| 9 | 07002-11423 | O-RING | B45001- | |
| 10 | 07040-11409 | PLUG | B45001- | |
| 11 | 07002-11423 | O-RING | B45001- | |
| 12 | 134-62-71820 | HOSE ASS'Y | B45001- | |
| 13 | 02760-00207 | HOSE | B45001- | |
| 14 | 02760-00207 | HOSE | B45001- | |
| 15 | 134-62-71840 | HOSE ASS'Y | B45001- | |
| 16 | 02782-10311 | ELBOW | B45001- | |
| 17 | 07002-11423 | O-RING | B45001- | |
| 18 | 02896-11009 | O-RING | B45001- | |
| 19 | 21J-62-17190 | CLIP | B45001- | |
| 20 | 01010-81220 | BOLT | B45001- | |
| 21 | 01643-31232 | WASHER | B45001- | |
| 22 | 21J-62-17210 | CLIP | B45001- | |
| 23 | 01010-81025 | BOLT | B45001- | |
| 24 | 01643-31032 | WASHER | B45001- | |
| 25 | 01010-81220 | BOLT | B45001- | |
| 26 | 01643-31232 | WASHER | B45001- | |
| 27 | 04434-52112 | CLIP | B45001- | |
| 28 | 07095-20314 | CUSHION | B45001- | |
| 29 | 01010-81220 | BOLT | B45001- | |
| 30 | 01643-31232 | WASHER | B45001- | |
| 31 | 04434-51212 | CLIP | B45001- | |
| 32 | 01010-81220 | BOLT | B45001- | |
| 33 | 01643-31232 | WASHER | B45001- |
