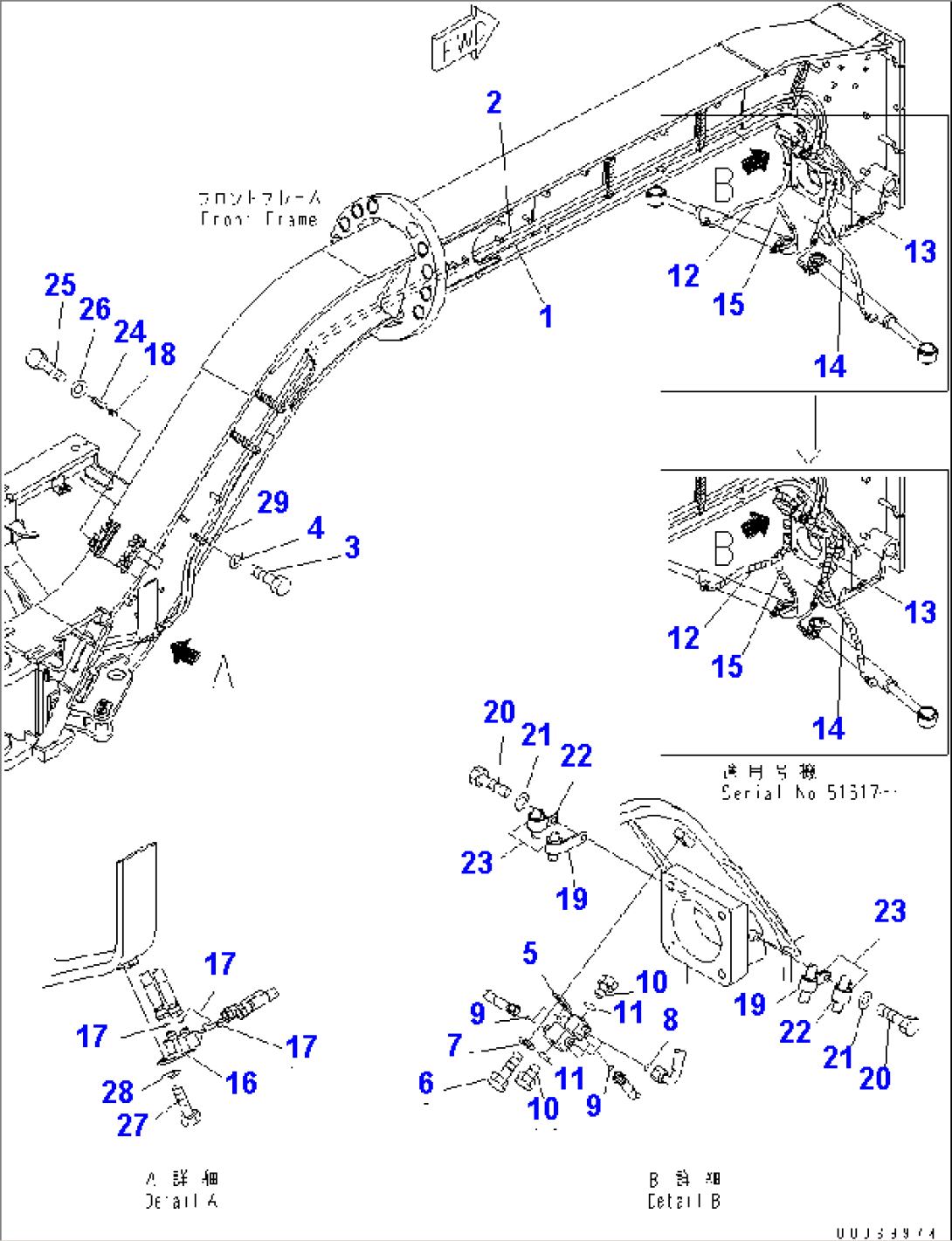

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23B-40-61121 | HOSE, 4950MM | 51501- | |
| 2 | 23B-40-61131 | HOSE, 5000MM | 51501- | |
| 3 | 01010-81016 | BOLT | 51501- | |
| 4 | 01643-31032 | WASHER | 51501- | |
| 5 | 23B-40-61280 | BRACKET | 51501- | |
| 6 | 01010-81020 | BOLT | 51501- | |
| 7 | 01643-31032 | WASHER | 51501- | |
| 8 | 02896-11012 | O-RING | 51501- | |
| 9 | 02896-11009 | O-RING | 51501- | |
| 10 | 07040-11007 | PLUG | 51501- | |
| 11 | 07002-11023 | O-RING | 51501- | |
| 12 | 23B-40-43221 | HOSE, 800MM | 51617- | |
| 12 | \0\23B-40-63110 | HOSE, 800MM | 51501-51616 | |
| 13 | 23B-40-43231 | HOSE, 650MM | 51617- | |
| 13 | \0\23B-40-63120 | HOSE, 650MM | 51501-51616 | |
| 14 | 23B-40-43141 | HOSE, 950MM | 51617- | |
| 14 | \0\23B-40-63140 | HOSE, 950MM | 51501-51616 | |
| 15 | 23B-40-43131 | HOSE, 1150MM | 51617- | |
| 15 | \0\23B-40-63130 | HOSE, 1150MM | 51501-51616 | |
| 16 | 23B-40-61290 | JOINT | 51501- | |
| 17 | 02896-11012 | O-RING | 51501- | |
| 18 | 23B-06-61810 | SPACER | 51543- | |
| 18 | 6166-11-5390 | SPACER | 51501-51542 | |
| 19 | 23B-40-43210 | CLIP | 51501- | |
| 20 | 01010-81025 | BOLT | 53002- | |
| 20 | 01010-81016 | BOLT | 51501-53001 | |
| 21 | 01643-31032 | WASHER | 51501- | |
| 22 | 04434-53212 | CLIP | 51501- | |
| 23 | 07095-20522 | CUSHION | 51501- | |
| 24 | 04435-52511 | CLIP | 51501- | |
| 25 | 01010-81050 | BOLT | 51501- | |
| 26 | 01643-31032 | WASHER | 51501- | |
| 27 | 01010-81020 | BOLT | 51501- | |
| 28 | 01643-31032 | WASHER | 51501- | |
| 29 | 04435-52110 | CLIP | 51501- |
