| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-12340 | RUBBER | 52406- | |
| 2 | 421-16-11660 | CLIP | 52406- | |
| 3 | 01435-01020 | BOLT | 52406- | |
| 4 | 234-A40-1160 | O-RING | 52406- | |
| 5 | 415-62-11550 | NIPPLE | 52406- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa600 3 s/n 50001 up
- Hydraulic system
- Steering line (steering valve to accumulator piping mountingu part) ( 40ßc spec.)(#52406 )
Поиск по каталогу

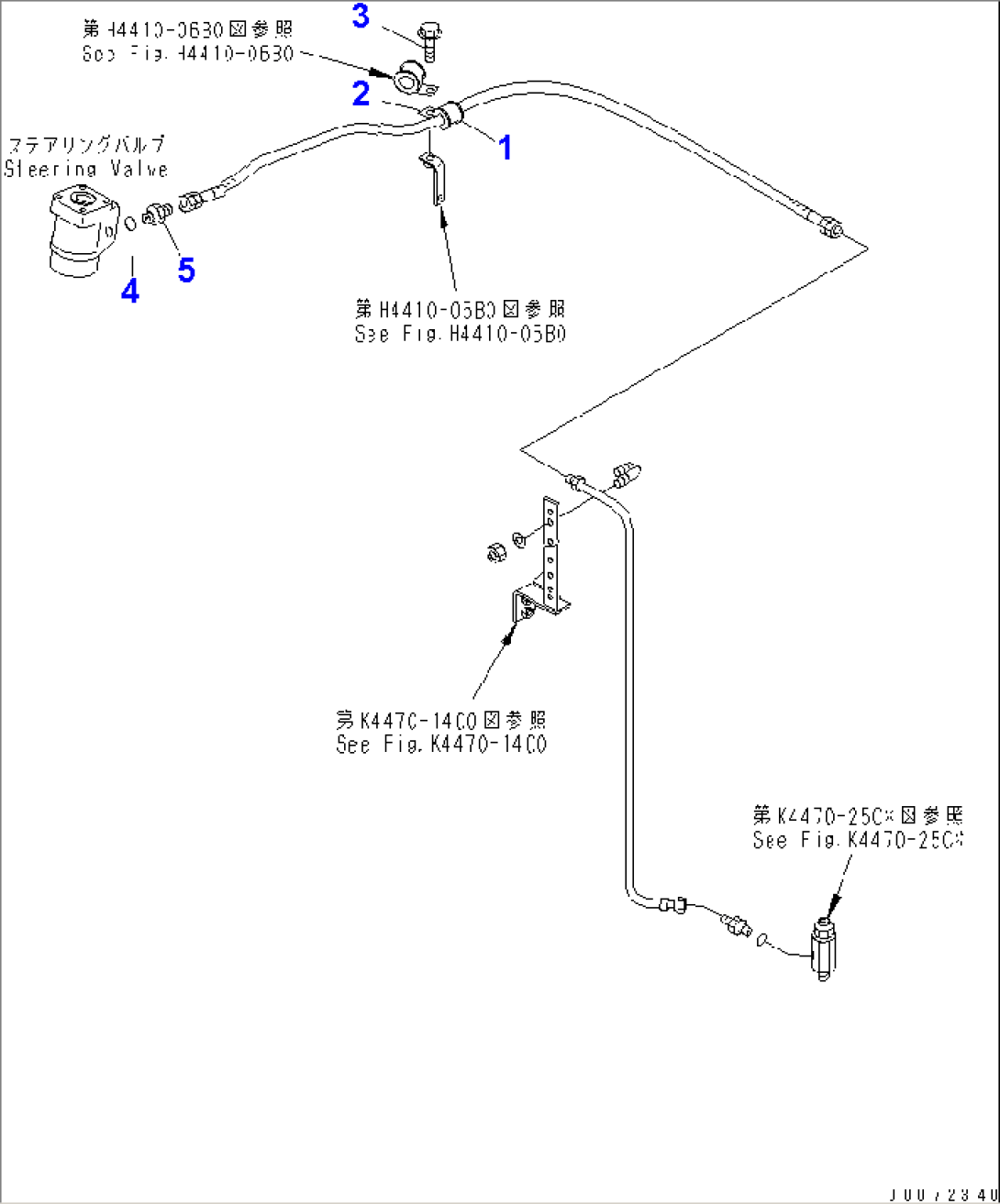

STEERING LINE (STEERING VALVE TO ACCUMULATOR PIPING MOUNTINGU PART) (-40ßC SPEC.)(#52406-)
